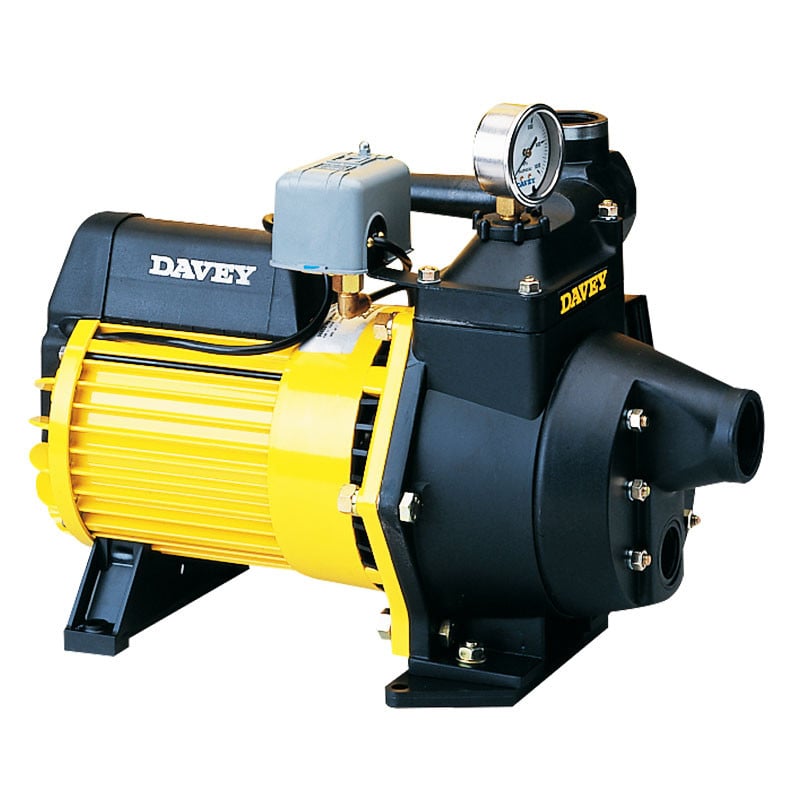

PRODUCT INFORMATION
Used in conjunction with Deep Well injector kits, these pumps are Ideal for supplying high pressure water from bores to 42m depth for water supply, tank filling, stock watering and sprinkler supply.
Pumps can also be used in applications where pump needs to be horizontally offset from the water supply.
FEATURES & BENEFITS
- High TEFC - IP rating for long term protection against vermin, dust and water
- Manufactured from quality corrosion resistant materials
- Pump casing made from marine grade aluminium for high tensile strength, with a unique internal Rilsan® casing injection moulded for wet areas, providing outstanding resistance to aggressive water
- Versatile pump - convertible to match different suction lifts
- Easily converted to automatic or manual operation
- Pumping system can be used for ‘offset’ installations
- Automatic Demand Response (ADR) fitted to provide peak performance and loss of prime discharge shut down
- 165D available with 3 phase motor
- Low maintenance
- O-ring seal hand tightened priming plug for easy operation
PUMP
- Single stage jet assisted centrifugal*
- Marine grade aluminium pump body with Rilsan® lining
- ADR valve fitted
- Pressure switch fitted
- Pressure gauge supplied
MOTOR
- Davey manufactured
- 2 pole, 2900rpm, 50Hz
- Class F insulation, IP56
- Permanently split, P2 metal jacket ‘fail safe’ capacitors designed for single phase motors
- Double contact seal C3, high temperature greased bearings
- Inbuilt thermal overload protection with automatic reset in all 1ø models
*Note: Pump requires correctly installed and selected Deep Well Injector Kit to operate as per the included performance data
TECHNICAL DATA
OPERATING LIMITS
| Type | 095D | 125D | 165D |
| Maximum capacity (@140kPa, 6m suction) lpm | 85 | 96 | 122 |
| Maximum water temperature | 50°C | 50°C | 50°C |
| Minimum water temperature | 1°C | 1°C | 1°C |
| Outlet size | 1 1/2" BSP(F) | 1 1/2" BSP(F) | 1 1/2" BSP(F) |
| Suction pipe sizes | Refer injector kit | Refer injector kit | Refer injector kit |
ELECTRICAL DATA
| 095D | 125D | 165D | |
| Supply voltage (1ø) | 220-240 | 220-240 | 220-240 |
| Supply voltage (3ø) | N/A | N/A | 380-450 |
| Output power (kW) | 1.1 | 1.4 | 1.8 |
| Maximum rated current (A) @ 240V / 415V | 7.2 | 8.5 | 10/4.2 |
| Locked rotor current (A) @ 240V / 415V | 21 | 25 | 39/24 |
| Insulation class | F | F | F |
| IP rating | IP56 | IP56 | IP56 |
| Starting (1ø) | P.S.C | P.S.C | P.S.C |
MATERIALS OF CONSTRUCTION
| PART | MATERIAL |
| Suction cover | Aluminium-Rilsan® lined |
| Pump body | Aluminium-Rilsan® lined |
| Discharge port | Aluminium-Rilsan® lined |
| Diffuser | Glass filled Noryl |
| Backplate | Glass filled Nory |
| Jet/Venturi housing | Glass filled Noryl |
| Impeller | Glass filled polycarbonate |
| Jet | Acetyl |
| Venturi | Acetyl |
| Seal ring (stationary) | Ceramic |
| Seal ring (rotating) | Carbon |
| Orings | Nitrile rubber |
| Priming plug | Nylon |
| Shaft sleeve | 304 stainless steel |
| Motor shell | Aluminium |
| Motor shell finish | Polyester powder coat |
| Capacitor cover | Polypropylene |
| Terminal box cover | Polypropylene |
| Mounting feet | Xenoy |

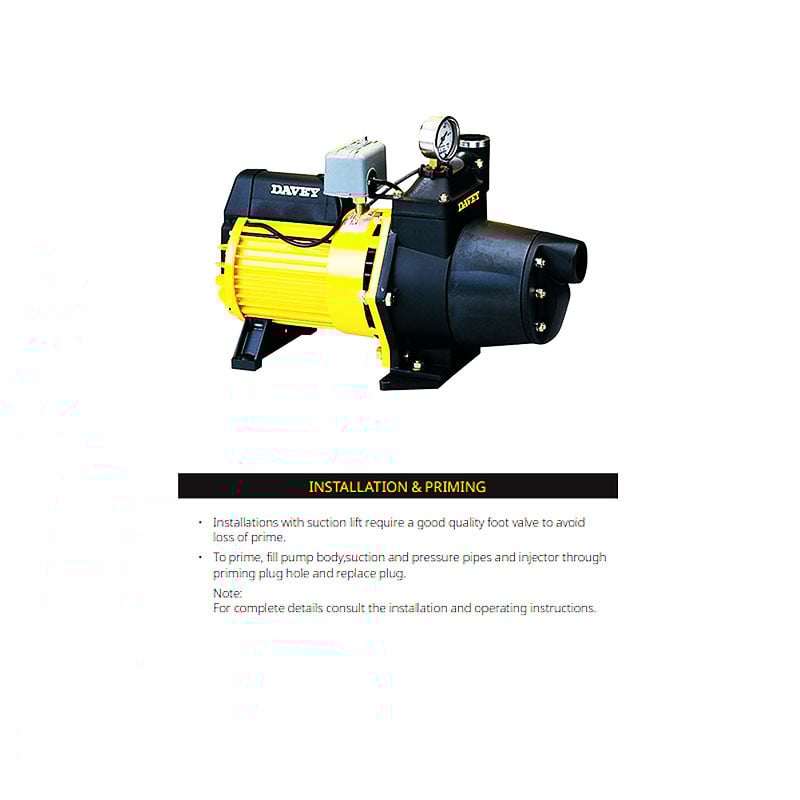

INSTALLATION & PRIMING
- To prime, fill pump body,suction and pressure pipes and injector through priming plug hole and replace plug.
Note: For complete details consult the installation and operating instructions

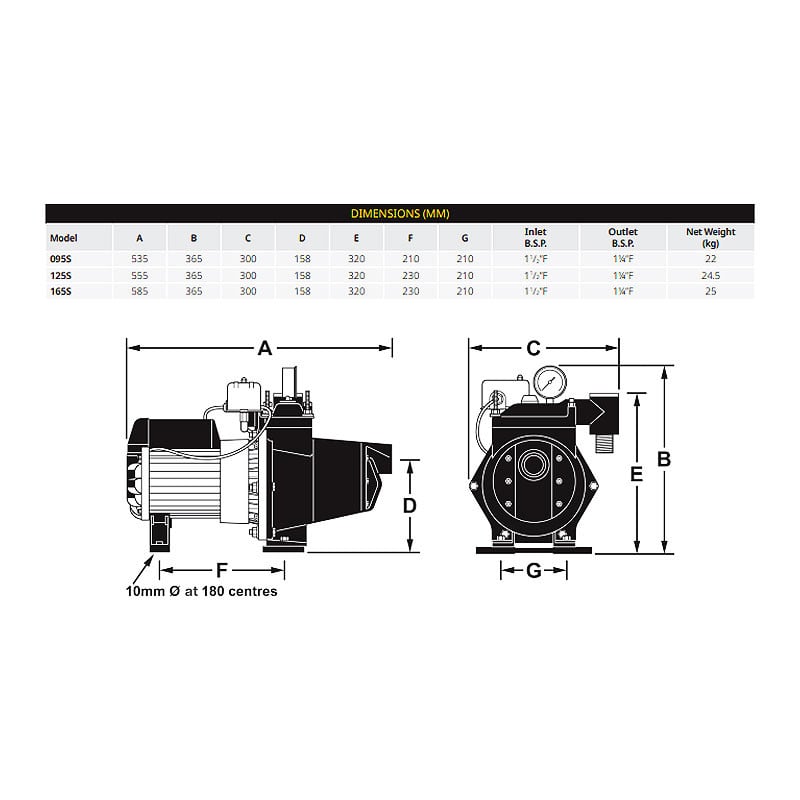

DRAWINGS
 |
 |
LITERATURE
 |
Davey 165D1 Shallow Well Jet Pump Brochure |
