PRODUCT INFORMATION

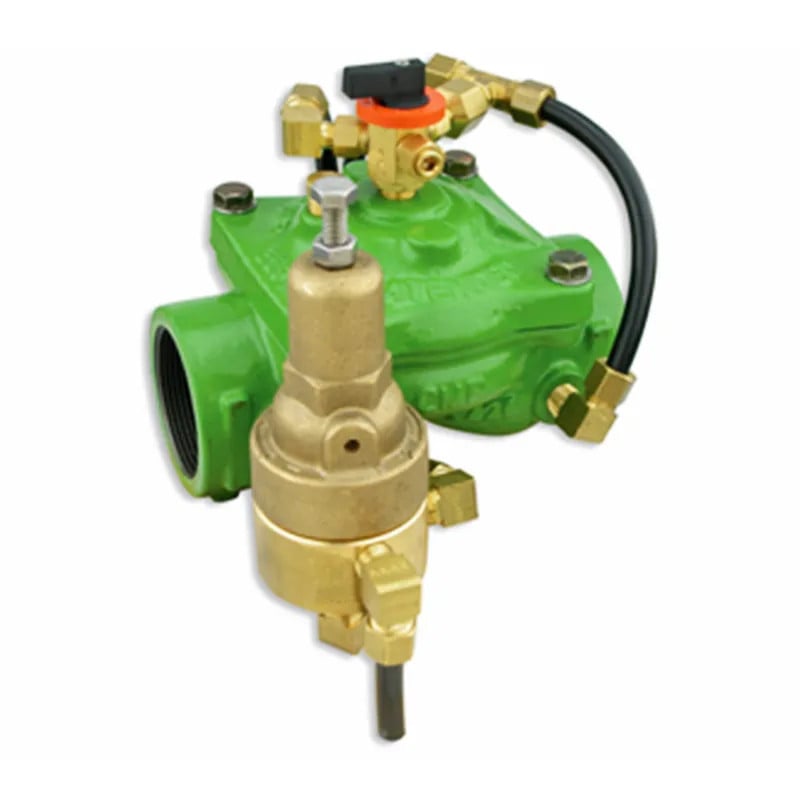

Pressure Reducing Valve IR-420-RXZ (40-100mm)

The Bermad Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve. It reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand, and opens fully upon line pressure drop.

APPLICATIONS

• Pressure Reducing Stations
• Systems Subject to Varying Supply Pressure

FEATURES & BENEFITS

• Hydraulic Pressure Control, Line Pressure Driven
  • Protects downstream systems
  • Opens fully upon line pressure drop
• Metal Control Accessories
  • Damage resistant
  • High pressure rating
• Advanced Globe Hydro-Efficient Design
  • Unobstructed flow path
  • Single moving part
  • High flow capacity
• Fully Supported & Balanced Diaphragm

  • Requires low opening pressure
  • Excellent low flow regulation performance
  • Prevents diaphragm distortion
• User-Friendly Design
  • Easy pressure setting
  • Simple in-line inspection and service

TECHNICAL DATA

OPERATION

The Pressure Reducing Pilot commands the main Valve to throttle closed should Downstream Pressure rise above pilot setting and to open fully when it drops below pilot setting. The Manual Selector enables local manual closing.

LITERATURE

Pressure Reducing Valve IR-420-RXZ (40-100mm) Brochure
