PRODUCT INFORMATION

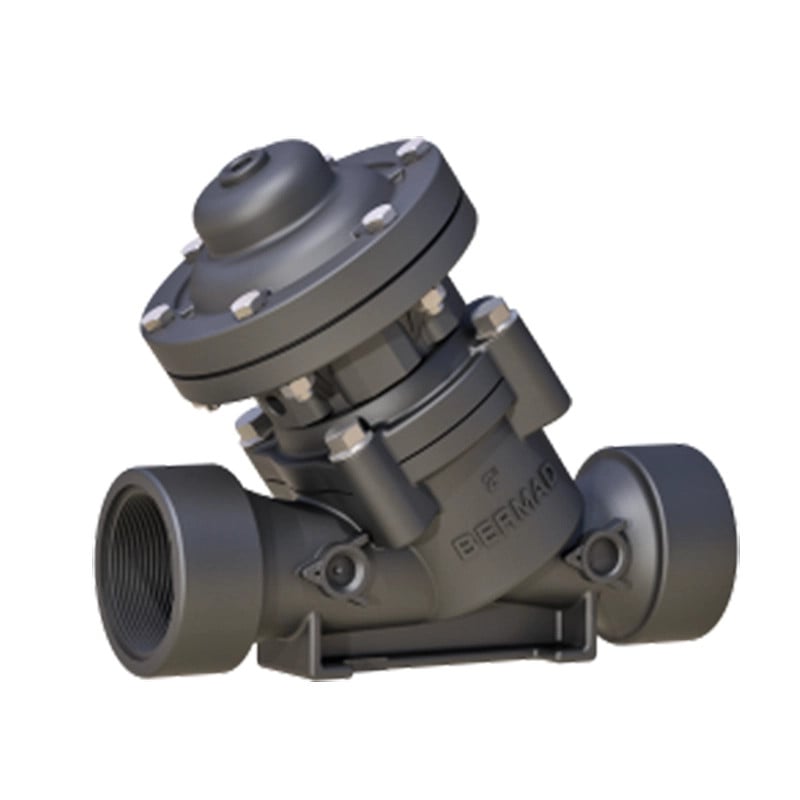

Model IR-100-DC-Z
HYDRAULIC VALVE, DOUBLE CHAMBER
The BERMAD Model IR-100-DC-Z Hydraulic Control Valve is a hydraulically operated, diaphragm actuated control valve that opens and shuts in response to a local or remote pressure command. The valve comprises two major components: the body and the actuator assembly. The actuator assembly is removable from the body as an integral unit. It consists of both upper and lower control chambers, providing Isolated and protected diaphragm. The double chambered valve operation is independent of valve differential pressure. This develops maximum power, ensuring immediate valve response combined with inherent soft closing
APPLICATIONS:
- Computerized Irrigation Systems
- Drip Systems
- Sprinklers & Micro-Sprinklers
- Greenhouses Irrigation
- End-line Flushing (Distribution Line, Irrigation Machine) - "Flush-’n-Stop"
- Proportional Pressure Reducing
- Non-slam Closing (or moderate closing)
- Active Double Chambered (B) - full Powered Opening & Closing
FEATURES & BENEFITS
- Hydraulic Control Valve with On/Off feature.
- Line Pressure Driven
- Suitable also for remote and/or elevated systems
- Double chamber design
- Full powered opening and closing
- Non-slam closing characteristic
- Protected diaphragm
- Engineered Plastic Valve with Industrial Grade Design
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity - Low pressure loss User-Friendly Design
- User Friendly Design
- Simple in-line inspection and service, Easy maintenance
- Simple in-line conversion from single to double chamber
TECHNICAL DATA
| Size Inch; DN | 1½"; 40 | 2"; 50 | 2"; 50 | 2"L; 50L | 2½"; 50L | 3"; 80 | 3"; 80 | 3”L; 80L |
4”; 100 |
| End Connections | Rc (BSP.T), NP | G (BSP.F | Rc (BSP.T), NPT | Rc (BSP.T), NPT | G (BSP.F) | Rc (BSP.T), NPT | Universal Flanges Metal - Plastic |
Rc 3 (BSP.T) - Universal Flanges | Universal Flanges Metal - Plastic |
| L (mm | 200 | 200 | 230 | 230 | 230 | 298 | 308 | Rc 3 (BSP.T) -298 | 350 |
| H (mm) | 194 | 196 | 196 | 220 | 220 | 232 | 277 | Rc 3 (BSP.T) -356 | 407 |
| h (mm) | 40 | 40 | 40 | 43 | 43 | 55 | 100 | Rc 3 (BSP.T) - 60 | 112 |
| W (mm | 126 | 126 | 126 | 135 | 135 | 135 | 200 | Rc 3 (BSP.T) - 210 | 224 |
| CCDV (lit) | 0.13 | 0.13 | 0.13 | 0.17 | 0.17 | 0.17 | 0.17 | Rc 3 (BSP.T) - 0.55 | 0.55 |
| Weight (Kg) | 1.7 | 1.7 | 1.7 | 2.2 | 2.2 | 5.1 | 5.1 - 3.2 | Rc 3 (BSP.T) - 5.95 | 9.45 - 7.55 |
FLOW PROPERTIES
| Sizes Inch DN | 1½” 40 | 2” 50 | 2L” 50L | 2½” 65 | 3” 80 | 3”L 80L | 4” 100 |
| KV | 50 | 50 | 100 | 100 | 100 | 200 | 200 |
LITERATURE
 |
Irrigation 100-DC Series Plastic Hydraulic Double chamber Valve Brochure |
