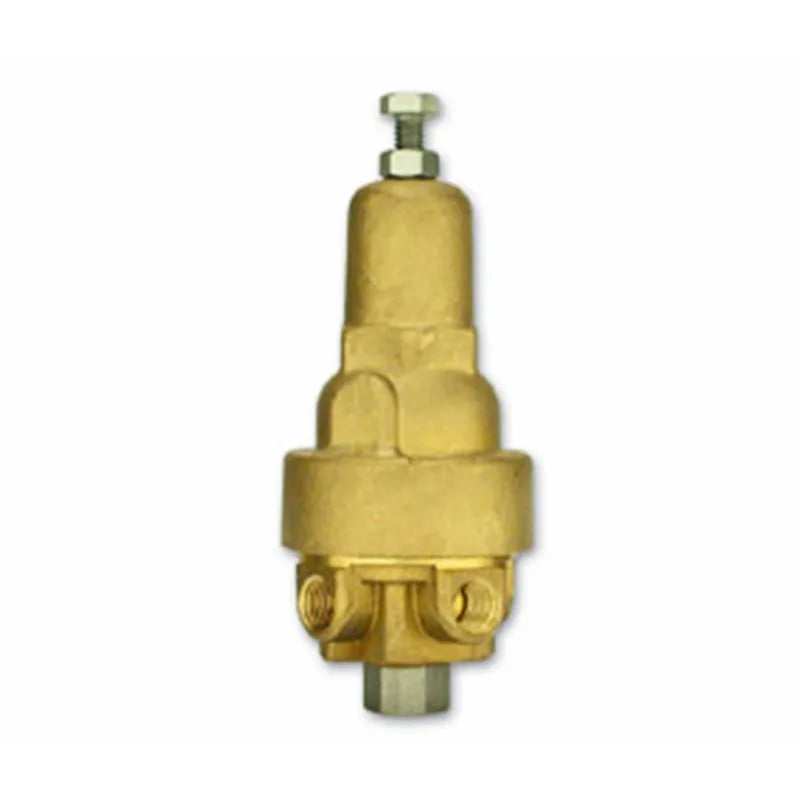

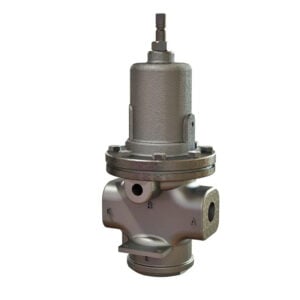

Bermad PC-3Q – Quick Pressure Relief Pilot

This pilot integrates all principal functions of a 2-way control circuit in a single assembly. It is a direct acting valve, actuated by a pressure responsive diaphragm, which tends to reach equilibrium with the set spring force.

The pilot opens at upstream pressure rise above set point. An integral restriction acts as an upstream flow restrictor, smoothing valve closing and simplifying the control circuit.

APPLICATION:

• ֺ Pressure relief valve quick type

FEATURES & BENEFITS

• Internal restriction
• ֺ Direct pressure gauge installation

TECHNICAL DATA

• Pressure Rating: 25 bar; 400 psi
• Working Temperature: Water up to 60°C; 150°F
• Flow Factor: Kv 0.48; Cv 0.56
• Valve Size Range: Small - Medium
• Standard Materials:
• Body: Brass/Stainless Steel
• Cover: Brass/Stainless Steel/Polyamide 6+30% G.F
• Elastomers: NBR/EPDM
• Internals: Stainless Steel & Brass
• Spring: Stainless Steel 302/316
• Optional Materials:
• Metal Parts: Nickel Aluminum Bronze, Duplex, Hastalloy
• Elastomers: FPM (Viton®)

LITERATURE

Bermad PC-3Q – Quick Pressure Relief Pilot Brochure
