PRODUCT INFORMATION

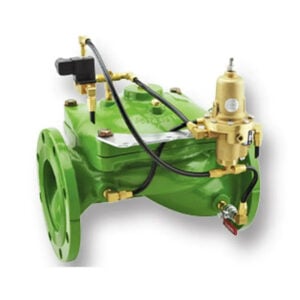

Bermad WW-730-55 with Solenoid control Sigma EN ES Pressure Sustaining Valve
The Model 730-55 Pressure Relief/Sustaining Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve that sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. It also either opens or closes in response to an electric signal. When installed as a circulation valve, the Model 730-55 relieves excessive line pressure when above maximum pre-set.
- Prioritizing pressure zones
- Pump overload & cavitation protection
- Backup for reservoir supply valves
- Safeguarding pump minimum flow
- Switching between pressure regimes
FEATURES & BENEFITSֺ
- Line pressure driven – Independent operation
- Solenoid controlled
- Low power consumption
- Wide ranges of pressures and voltages
- Normally Open, Normally Closed, or Last Position
- Balanced seal disk – High relief flow capacity
- In-line serviceable – Easy maintenance
- Double chamber design
- Moderated valve reaction
- Protected diaphragm
- Flexible design – Easy addition of features
- Variety of accessories – Perfect mission matching
- “Y” or angle, wide body – Minimized pressure loss
- Semi-straight flow – Non-turbulent flow
- Stainless Steel raised seat – Cavitation damage resistant
- Obstacle free, full bore – Uncompromising reliability
- V-Port Throttling Plug – Low flow stability
TECHNICAL DATA
- Pressure sustaining and reducing with solenoid control – 723-55
- Electrically selected multi-level settings – 730-45
- High sensitivity pilot – 730-55-12
- Electric override for fire protection – FP-730-59
- Level-control & pressure sustaining with bi-level electric float – 753-65
- Pump circulation & pressure sustaining valve – 748
- Electronic pressure sustaining valve – 738-03
LITERATURE
 |
Bermad WW-730-55 with Solenoid control Sigma EN ES Pressure Sustaining Valve Brochure |
