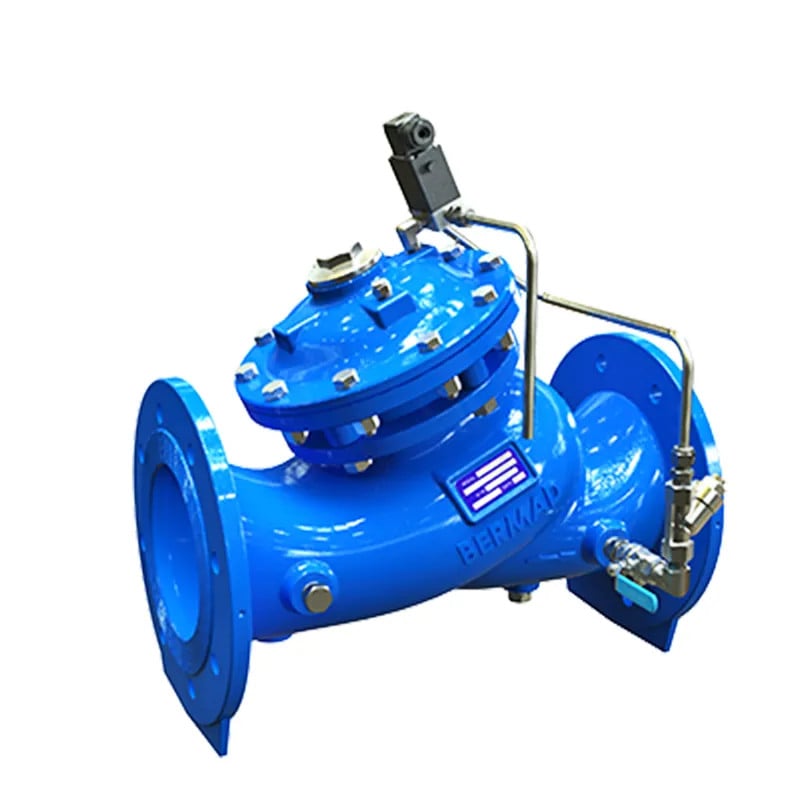

Bermad WW710 – Sigma EN ES Solenoid Controlled Valve

SKU:
WW710

PRODUCT INFORMATION

Bermad WW710 – Sigma EN ES Solenoid Controlled Valve

The Bermad 710 is a hydraulically operated, solenoid controlled valve that either opens fully or shuts off in response to an electric signal. It is available in several models including Normally Open (NO), Normally Closed (NC) or LATCH. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.

FEATURES & BENEFITSֺ

  • Designed to - stand up to the toughest conditions
    • Excellent anti-cavitation properties
    • Wide flow range
    • High stability and accuracy
    • Drip tight sealing
  • ֺ Double chamber design
    • Moderated valve reaction
    • Protected diaphragm
    • Optional operation in very low pressure
    • Moderated closing curve
  • ֺ Flexible design - Easy addition of features
  • ֺ Obstacle free flow pass
  • ֺ V-Port Throttling Plug (Optional) - Very stable at low flow ֺ Compatible with various standards
  • ֺ High quality materials
  • ֺ In-line serviceable - Easy maintenance

TECHNICAL DATA

  • Full powered opening & closing – 710-B
  • Opening & Closing speed control – 710-03
  • Closing signal (limit switch) – 710-S
  • Relief override – 710-3Q
  • Flow over the seat (fail-safe close) – 710-O
  • Closing surge prevention – 710-49
  • Independent Check Feature – 710-2s

LITERATURE

Bermad WW710 – Sigma EN ES Solenoid Controlled Valve Bermad WW710 – Sigma EN ES Solenoid Controlled Valve Brochure
