PRODUCT INFORMATION

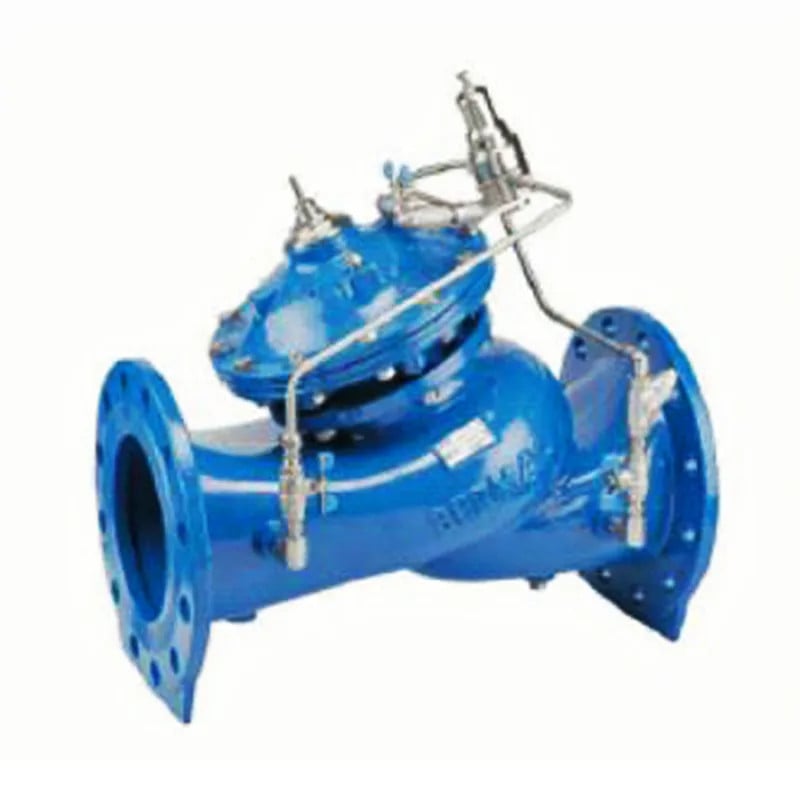

WW720-4T – Sigma EN ES Dynamic Pressure-Reducing Control Valve AS5081 / WaterMark
Dynamic Pressure-Reducing Control Valve with Electronic Multi-Level Setting (Pneumatically) Controlled by Technolog-Modulo Controller. Equipped with unique Multi-Setting Pneumatic Controlled unit (MSPC), which responds to a Modulo controller by changing the pilot’s set point according to a programmed time and flow function.
FEATURES & BENEFITS
- Hydraulic Pressure Control
- Line pressure driven
- Protects downstream even during zero demand
- User-Friendly design
- Easy pressure setting
- Simple in-line inspection and service
- Easy addition or control features
- Designed to stand up to the toughest conditions
- Excellent anti-cavitation properties
- Silent operation suitable for urban areas
- Wide flow range
- High stability and accuracy
- Double chamber design
- Moderated valve reaction
- Protected diaphragm
- Flexible design - Easy addition of features
- Obstacle free, full bore - Free flow pass
- V-port Throttling Plug - Very low flow stability
- In-line serviceable - Easy maintenance
Applications Guide
- Pressure reducing systems
- Pressure management and leakage control
TECHNICAL DATA
Operation
The Modulo controller receives continues readings of flow and up-downstream pressure and provides pneumatic pressure to the MSPC unit changing the pilot set point according to pressure & flow pressure & time functions. The pressure reducing pilot commands the hydrometer to throttle closed when downstream pressure rises above pilot setting, and modulate open when it drops below pilot setting. A standard PDA allows programming and data downloading.
LITERATURE
 |
WW720-4T – Sigma EN ES Dynamic Pressure-Reducing Control Valve Brochure |
