DAB-200M Cast Iron Shallow Well Jet Pump

SKU:
DAB-200M

PRODUCT INFORMATION

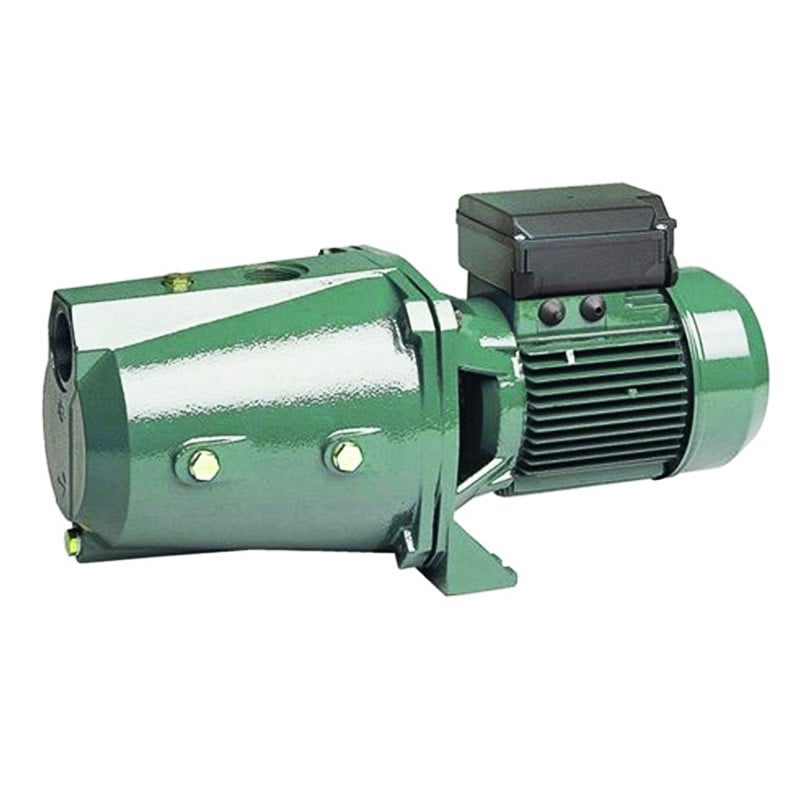

DAB-200M Cast Iron jet Pump Shallow Well Pump

The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.

Applications

  • Domestic installations where a suction lift is required
  • Pressure boosting, irrigation and wash down
  • Designed for pumping from tanks, rivers and dams.

FEATURES & BENEFITS

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F

Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
- Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- Special executions on request: other voltages and/or frequencies

  • Self priming centrifugal pump with excellent suction capabilty
  • 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage

Handy Hints for Installing Your Jet Pump

  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.

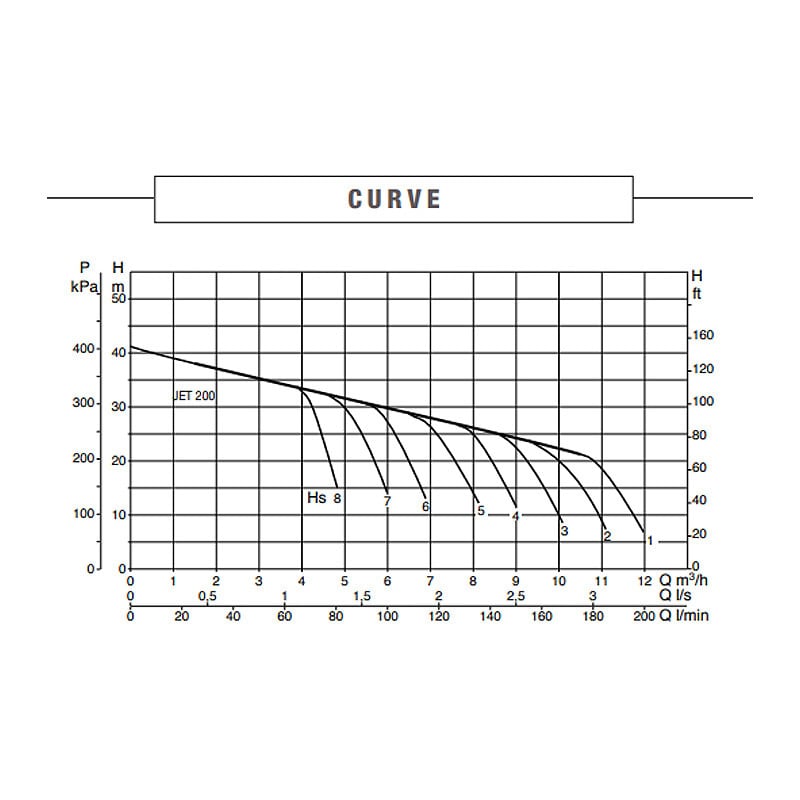

TECHNICAL DATA

Brand
DAB Pumps
Product Type
Twin Stage Shallow Well Jet Pump
Suitable For
Tank Transfer
Bar
4.1 Bar
Flow Range Category
b. 100 - 199 Lmin
Flow Rate (L/min)
175 L/min
Hp
2 Hp
kPa
415 kPa
Kilo Watts
1.47 kW
Casing Material
Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m)
41 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet
1 1/4" BSPF outlet
Powered
Electric
Warranty (months) 24 Months
Volts
415 V

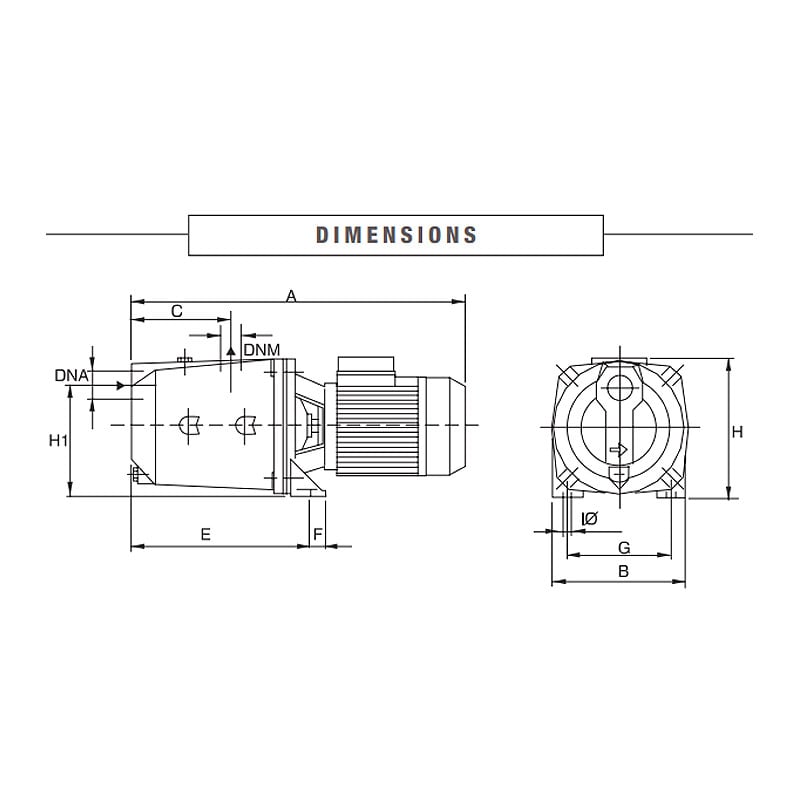

DRAWINGS

LITERATURE

DAB-200M Cast Iron jet Pump Shallow Well Pump DAB-200M Cast Iron jet Pump Shallow Well Pump Brochure
