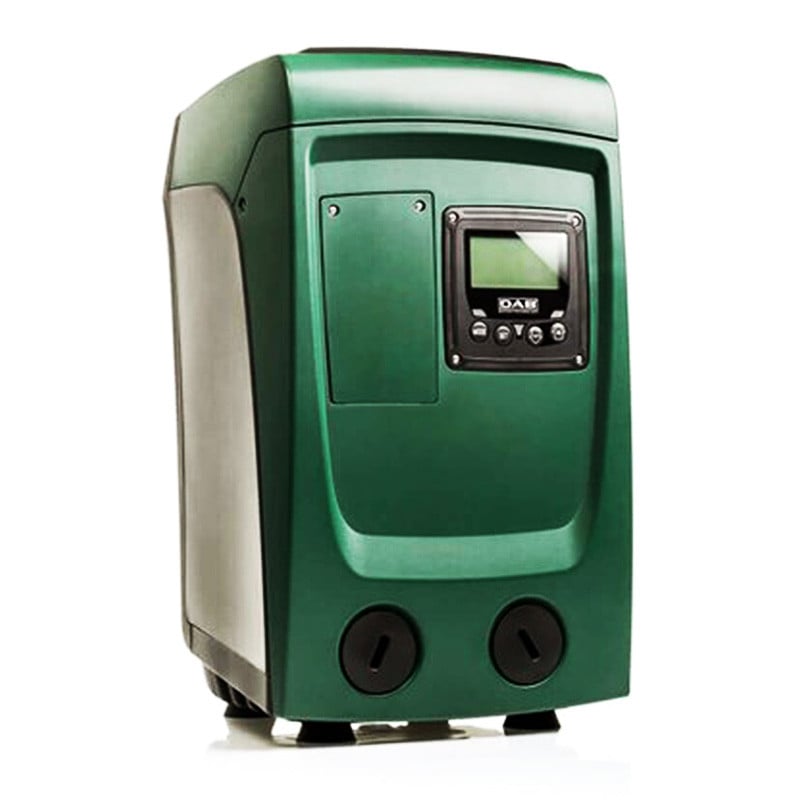

DAB ESYBOX MINI Variable Speed Constant Pressure Pump

SKU:
DAB ESYBOXMINI3

PRODUCT INFORMATION

DAB ESYBOX MINI Variable Speed Constant Pressure Pump

E.SYBOX MINI3 is the DAB compact automatic pressurisation system for the water supply of a single dwelling. E.SYBOX MINI3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 1 up to 5,5 bar) inside the system, and energy savings thanks to the inverter technology. Suitable for use with drinking water, in domestic systems, and in gardening applications. E.SYBOX MINI3 does not require any additional components for its installation

E.SYBOX MINI3 is an integrated system for water pressure boosting in domestic and residential applications. Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 1 litre.

E.SYBOX MINI3 does not require any additional components for its installation

FEATURES & BENEFITS

CONSTRUCTIONAL FEATURES

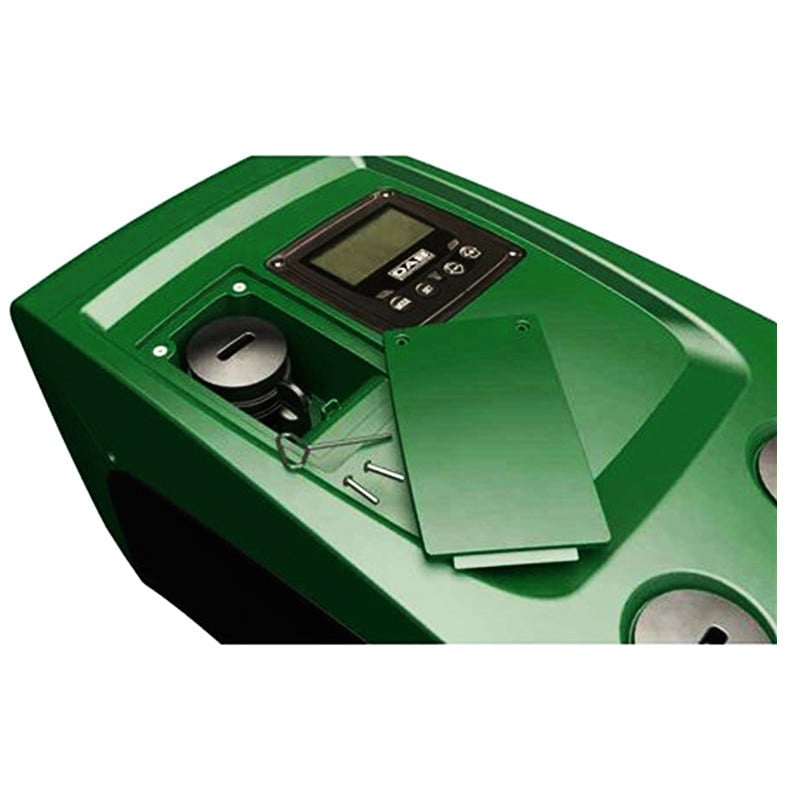

It consists of a self-priming multistage pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1 litre built-in expansion vessel, and cartridge check valve.

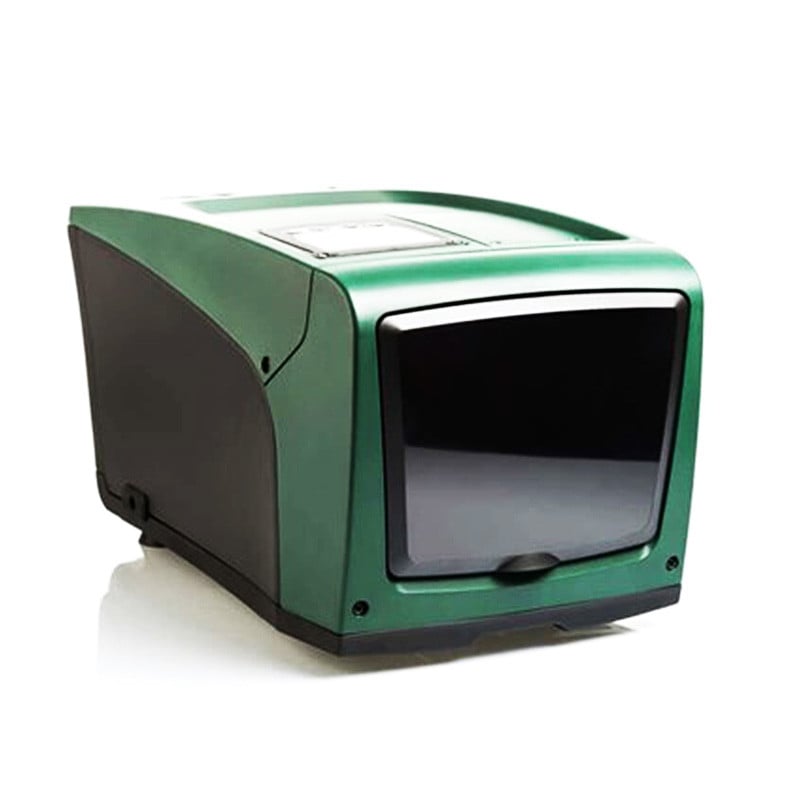

The double suction and delivery ports allow both vertical and horizontal installation. Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.

The E.SYWALL wall bracket allows wall installation, saving even more room. E.SYBOX MINI3 is a self-priming pump with a capability of 8 metres in less than 5 minutes.

The water cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact. Fitted with all the safety protections, as well as the protections for the safeguard of the pump.

Particularly, the dry run, and the antifreeze protections. All the parameters and the operating status can be displayed and set on the high resolution LCD display.

Operating range: capacity up to 80 l/min; head up to 55 m

Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C

Maximum suction depth: 8 meters

Maximum ambient temperature: +50°C

Maximum operating pressure: 7,5 bar (750 kPa)

Motor protection rating: IPX4

Insulation class: F

Installation: Horizontal or vertical fixed position

Special executions on request: alternative types of electrical plug

TECHNICAL DATA

Brand
DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
5 Bar
Approval
Approved For Drinking Water
Flow Range Category
. 100 - 199 L/min
Flow Rate (L/min)
80 L/min
Hp
1.1 Hp
kPa
500 kPa
Kilo Watts
0.85 kW
Taps 12 Taps
Port Size Inlet 1" BSPF inlet
Port Size Outlet
1" BSPF outlet
Powered
Electric
Warranty (months) 48 Months
Volts
240 V
Watts
850 W

DRAWINGS

LITERATURE

DAB ESYBOX MINI Variable Speed Constant Pressure Pump DAB ESYBOX MINI Variable Speed Constant Pressure Pump Brochure
