PRODUCT INFORMATION

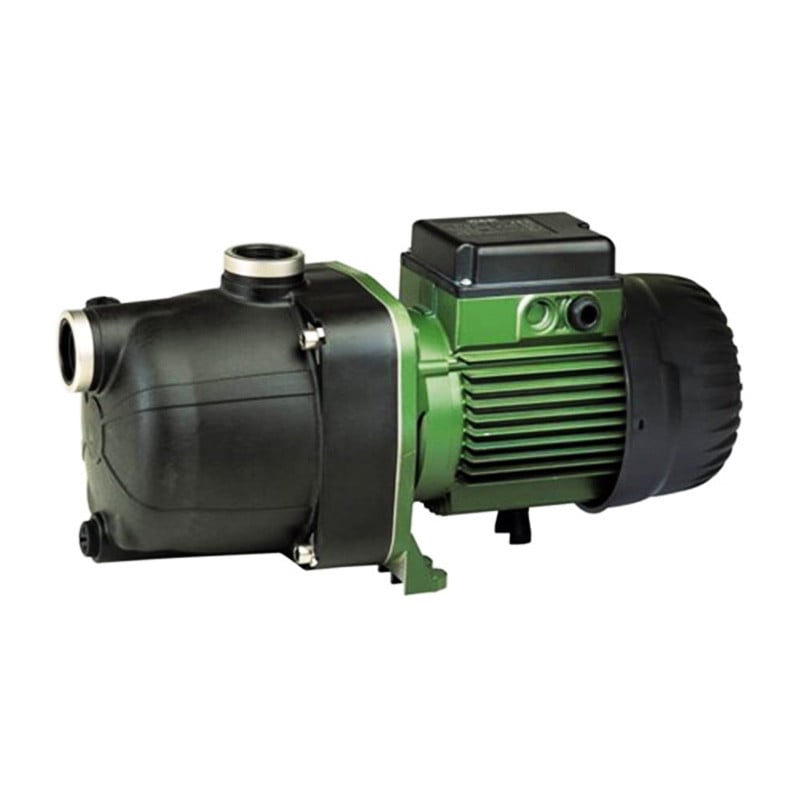

JETCOM82M Technopolymer Self Priming Jet Pump
Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.
Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services, and wherever self-priming operation is necessary.
Constructional features of the pump
Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.
FEATURES & BENEFITS
Constructional features of the motor
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55Insulation class: F
- Corrosion resistant materials
- AS/NZS 4020 compliant
- Metal pump body inserts
- Air gap motor with shaft slinger
- Machined bearing housings
- Reliable in arduous suction conditions
- Safe for drinking water
- Longer life
- Repairable
- Robust and self priming design
Self Priming Technopolymer Jet Pumps
- Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general
- DAB Jet pumps are renowned for their unique self-priming and extraordinary deep suction capability up to 9 metres at sea level
- Available in Technopolymer, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications
ADVANTAGES
- Proven efficient performance
- Will self prime to 9 metres
- Will not corrode
- No hazardous materials used
- Nickel plated brass inserts strengthens pump body
- Does not let water into motor if seal fails
- Correct tolerances
TECHNICAL DATA
| Brand | DAB Pumps |
| Product Type |
Single Stage Jet Pump |
| Suitable For |
Clean Water |
| Approval |
Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
60 L/min |
| Hp |
0.8 HP |
| Kilo Watts |
0.6 kW |
| Head Range Category |
b. 40 - 59 m |
| Max Head (m) | 47 |
| Port Size Inlet |
1" BSPF inlet |
| Port Size Outlet |
1" BSPM outlet |
| owered | Electric |
| Volts |
240 V |
| Warranty (months) |
24 Months |
DRAWINGS
 |
 |
LITERATURE
 |
JETCOM82M Technopolymer Self Priming Jet Pump Brochure |
