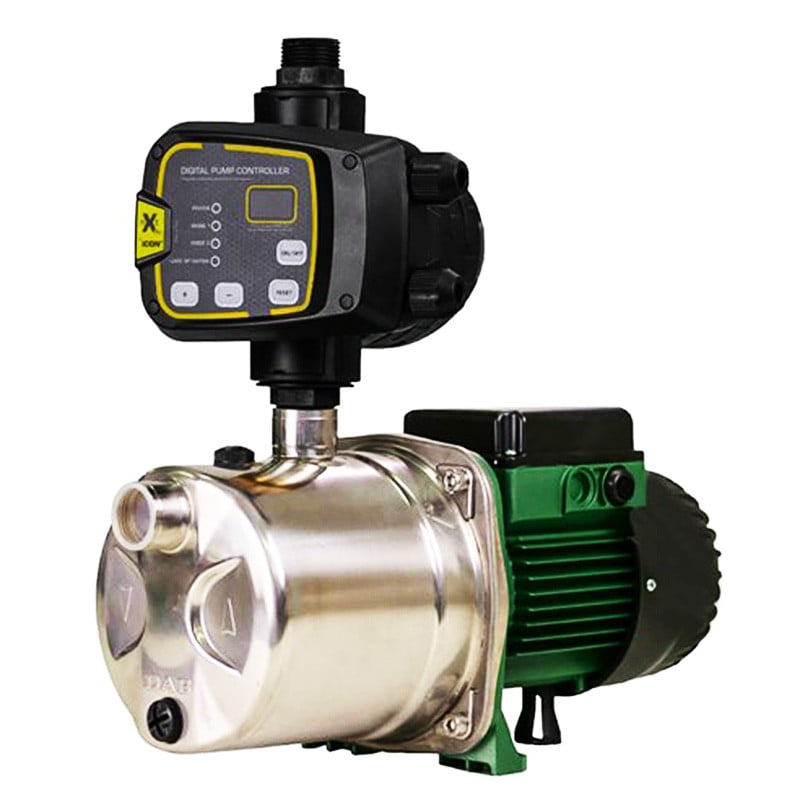

DAB JINOX102NXTP Pro Stainless Steel Self Priming Jet Pump With NxT Pro Controller

SKU:
DAB JINOX102NXTP

PRODUCT INFORMATION

DAB JINOX102NXTP Pro Stainless Steel Self Priming Jet Pump With NxT Pro Controller

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.

Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services, and wherever self-priming operation is necessary.

FEATURES OF PUMP

Pump body in technocpolymer and motor support in die cast aluminium. Impeller, diffuser, venturi tube and sand guard in technopolymer Stainless steel wear ring. Carbon/ceramic mechanical seal.

FEATURES & BENEFITS

FEATURES OF MOTOR

Asynchronous type, closed, with external air cooling. Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version. It is recommended to use overload protection for three phase motor protection, in compliance with current legislation. Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

CHARACTERISTICS

  • Operating Range: from 7 to 70 litres/min with head up to 54 metres.
  • Liquid Quality Requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
  • Liquid temperature range: for domestic use: from 0°C to +35°C (EN 60335-2-41) for other use: from 0°C to +40°C
  • Maximum Suction Depth: 8 metres
  • Maximum Ambient Temperature: +50°C
  • Maximum Operating Pressure: 8 bar (800 kPa)
  • Installation: fixed in a horizontal position.
  • Special executions on request: alternative voltages and/or frequencies.
  • Motor Protection Rating: IP 44
  • Terminal Block Protection Rating: IP 55
  • Insulation class: F
  • Standard Input Voltage: Single phase 220/240 V / 50 Hz Three phase 230/400 V - 50 Hz
  • Electrical Data: 0.75 kW 5.1A 240V

TECHNICAL DATA

Brand DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
5.3 Bar
Approval
Drinking Water Approval
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
60 L/min
Hp
1 Hp
kPa 527
Kilo Watts
0.75 kW
Max Flow (L/min) 60
Head Range Category
b. 40 - 59 m
Max Head (m) 53.8 m
Port Size Inlet
1" BSPF inlet
Port Size Outlet
1" BSPM outlet
Powered Electric
Taps 6
Volts
240V
Warranty (months)
24 Months
Watts
750W

DRAWINGS

LITERATURE

DAB JINOX102NXTP Pro Stainless Steel Self Priming Jet Pump With NxT Pro Controller DAB JINOX102NXTP Pro Stainless Steel Self Priming Jet Pump With NxT Pro Controller Brochure
