PRODUCT INFORMATION

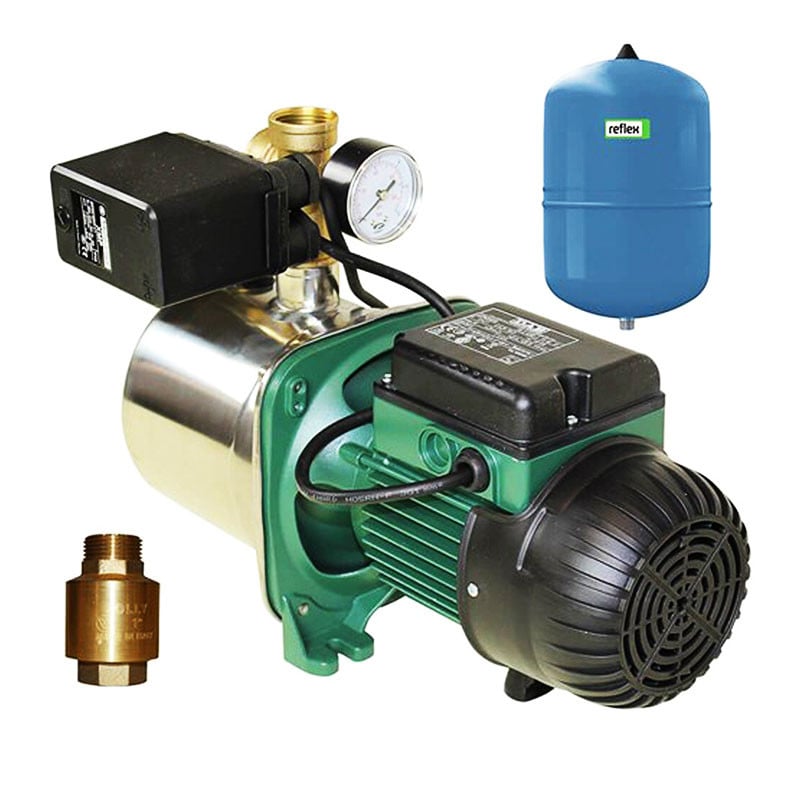

DAB JINOX62MP-8V Stainless Steel Self Priming Jet Pump With Pressure Switch & 8L Tank
Self Priming Stainless Steel Jet Pressure Pumps
FEATURES & BENEFITS
- Self priming to 9m at sea level
- Designed specifically for rainwater tanks, shallow well, spear and boreholes to a maximum depth of 9 metres
- Ideal for drip irrigation and garden watering
- Designed for domestic and urban household pressure systems
- 2m Plug n Play Cable
TECHNICAL DATA
| Brand | DAB Pumps |
| Product Type |
Pressure System |
| Suitable For |
Clean Water |
| Bar |
4.2 Bar |
| Approval |
Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
45 L/min |
| Hp |
0.6 Hp |
| kPa | 425 kPa |
| Kilo Watts |
0W |
| Head Range Category |
b. 40 - 59 m |
| Max Head (m) | 42 m |
| Port Size Inlet |
1" BSPF inlet |
| Taps | 4 Taps |
| Port Size Outlet |
1" BSPM outlet |
| Powered | Electric |
| Volts |
240V |
| Warranty (months) |
24 Months |
| Watts |
440 |
LITERATURE
 |
DAB JINOX62MP-8V Stainless Steel Self Priming Jet Pump With Pressure Switch & 8L Tank Brochure |
