PRODUCT INFORMATION
ECONOMICAL, SIMPLE, AND COMPACT
APPLICATION: Ideal for inground and above ground pools, swim spas and plunge pools. Suitable for salt, mineral salt and fresh water pools. Models suitable for pools up to 180,000 litres.
FEATURES & BENEFITS
COST-EFFECTIVE FIBREGLASS MEDIA FILTERS
- Easy to use and virtually maintenance free
- Constructed from strong corrosion and UV resistant bobbin wound fibreglass, providing long and reliable working life
- Built-in waste port sight glass for high visibility during backwashing
- Large media capacity providing less frequent backwashing to save water
- Stainless steel oil filled pressure gauge makes it easy to see when backwashing is required
- High rate design for maximum efficiency, suitable for sand, Zelbrite and glass media
TECHNICAL DATA
PERFORMANCE DATA & MEDIA REQUIRED
Model | Size (inches) | Sand Required (kg/bags) | Zelbrite Required (kg/bags) | Glass Required Fine/ Medium (kg/bags) - Medium/ Coarse (kg/bags) |
Maximum Flow Rate (lpm) | Minimum Backwash Flow Rate (lpm) | 6 Hour Turnover (litres) | Filtration Area (m2 ) | Max. Water Temp (ºC)/ Operating Pressure (kPa) |
DEP2140 | 21' | 85/5 | 64/5 | 45/3 - 30/2 | 185 | 123 | 66,600 | 0.22 | 40/320 |
DEP2540 | 25'' | 145/8 | 109/8 | 75/5 - 30/2 | 260 | 173 | 93,600 | 0.32 | 40/320 |
DEP2850 | 28'' | 215/11 | 158/11 | 105/7 - 45/3 | 325 | 217 | 120,960 | 0.41 | 40/320 |
DEP3250* | 32'' | 355/18 | 270/18 | 180/12 - 75/5 | 415 | 277 | 149,400 | 0.53 | 40/370 |
DEP3650* | 36'' | 470/24 | 360/24 | 240/16 - 105/7 | 520 | 347 | 187,200 | 0.66 | 40/370 |
DEP4050* | 40'' | 620/31 | 465/31 | 330/22 - 135/9 | 650 | 433 | 234,000 | 0.81 | 40/370 |
LITERATURE

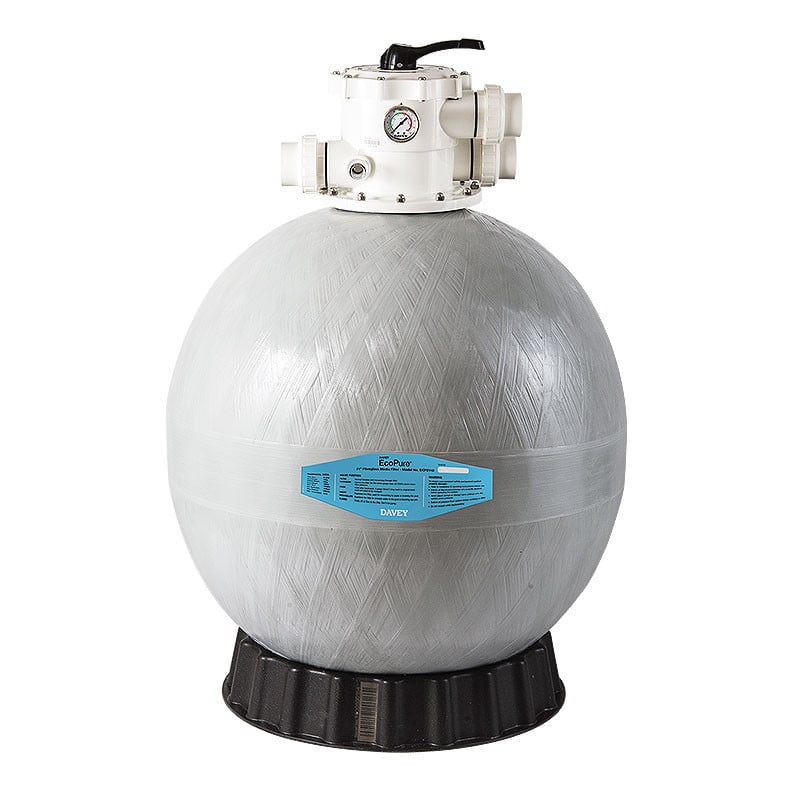

Davey EcoPure DEP2140 Media Filter Brochure |
