PRODUCT INFORMATION
ENERGY EFFICIENT
APPLICATION: Ideal for swimming pool applications such as filtration, automatic pool cleaning, backwashing, water features, spa jet operation, solar pool heating and gas and heat pump pool heating.
FEATURES & BENEFITS
DESIGNED TO FILTER AND CIRCULATE POOL WATER
- Variable speeds for different applications – allows you to switch and program speeds between ECO Flow (lowest speed) for pool filtration, Mid Flow for pool cleaning and High Flow for all other pool applications
- Programmable intelligence – allows for fully programmable speed options between Eco, Mid and High Flow speeds, maximising your pool efficiency, use and performance
- Low emissions – 8 Star energy efficiency rating, with super low emissions and even lower energy usage
- Lower noise levels – Quiet at only 60.5db (equivalent to a normal conversation), allowing you to run your pump at any time of day or night
- Extra large leaf basket – easy to remove, with a see through lid
- Davey dependability built in – using the latest brushless DC motor technology, the PowerMaster ECO series offers you the reliability you have come to expect from all Davey products
- 3 year guarantee – peace of mind from an Australian owned, designed and engineered pool pump
*Running your pump at low speed uses less energy to turnover the same amount of pool water
TECHNICAL DATA
ELECTRICAL DATA
| Model | PMECO |
| RPM | Eco Flow Speed – 1400 |
| RPM | Mid Flow Speed – 2400 |
| RPM | High Flow Speed – 2850 |
| Enclosure Class (IP) | 24 |
| Insulation Class | Class B 130 Insulation |
| Voltage (V) | 240 AC |
| Supply Frequency (Hz) | 50 |
| Run current (A) | 6.3 |
| Motor Input Power (W / hp) | Eco Flow - 180W / 0.24 hp |
| Motor Input Power (W / hp) | Mid Flow – 720W / 0.96 hp |
| Motor Input Power (W / hp) | Hi Flow – 990W / 1.32 hp |
| Motor Output Power (W / hp) | Eco Flow - 127W / 0.17 hp |
| Motor Output Power (W / hp) | Mid Flow – 521W / 0.70 hp |
| Motor Output Power (W / hp) | Hi Flow – 853W / 1.14 hp |
OPERATING LIMITS
| Max water temperature | 50ºC |
| Max ambient temperature | 55ºC |

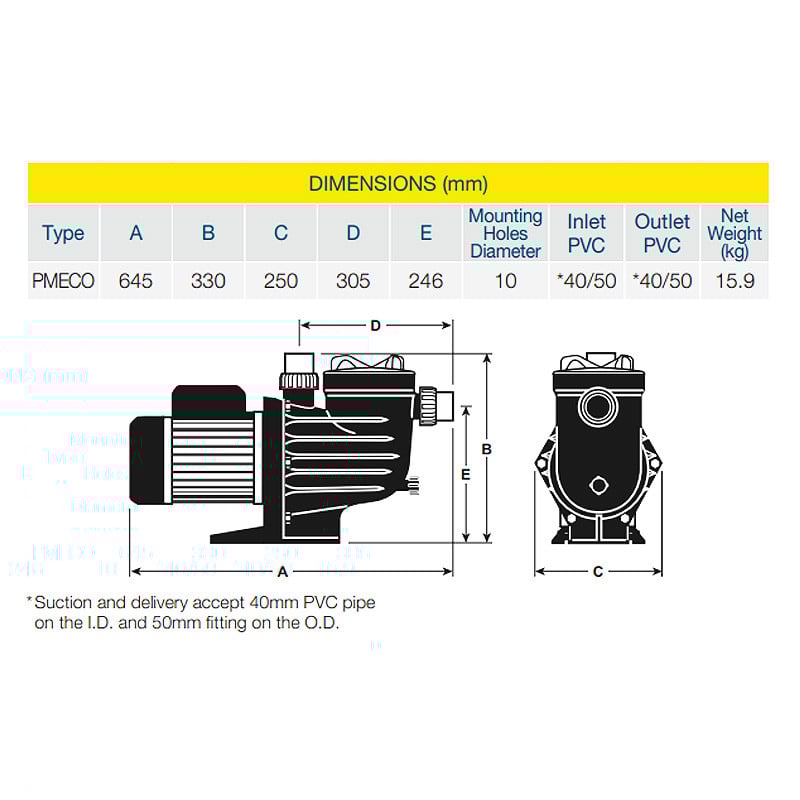

DRAWINGS
 |
 |
LITERATURE
 |
Davey PowerMaster® Eco PMECO Pool Pump Brochure |
