PRODUCT INFORMATION
CMBE TWIN is a high-efficiency booster system consisting of two Grundfos CMBE boosters connected in parallel, suitable for clean water supply and pressure boosting in domestic and commercial applications.
- Commercial water pressure boosting
- Attic
- Bathroom
- Domestic water pressure boosting
FEATURES & BENEFITS
The Grundfos CMBE TWIN Booster is a compact two-booster system for water supply in domestic and commercial applications. The integrated speed controller allows the CMBE Booster to maintain constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal the speed controller to change the motor speed. This way performance is adjusted according to the new state, thus running in cascade multi-pump. The cascade control ensures that the performance of the CMBE Booster is automatically adapted to consumption by switching pumps on or off and by changing the speed of the pumps in operation. The system thus runs as energy-efficiently as possible with a limited number of pumps. The CMBE-TWIN Booster is very easy to install. It has UL approval.
The CME Booster consists of 2 units of CMBE Booster which each include, 5-way valve, expansion tank, pressure gauge, Pressure sensor.
Features:
- Cascade multi-pump operation
- Automatic pump alternation
- Constant pressure control
- Pipe filling • Compact design
- Robust
- stainless steel
- Easy installation (Plug & Pump)
- Dry run protection
Applications:
- Apartment buildings
- Schools
- Small hotels
- Office buildings
- Agriculture
Thermal protection CME Booster pumps require no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34.11)
TECHNICAL DATA
LIQUID
| Pumped liquid: | Water |
| Liquid temperature range: | 0 .. 60 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
TECHNICAL
| Pump speed on which pump data are based | 3868 rpm |
| Rated flow: | 6 m³/h |
| Rated head: | 47.8 m |
| Code for shaft seal: | AVBE |
| Approvals: | CE,CCC |
| Curve tolerance | ISO9906:2012 3B |
| Number of pumps | 2 |
| Start pressure: | Integrated Frequency converter |
| Tank volume | 41 |
| Main pump type: | CMBE TWIN |
| Main pump product number: | 98586118 |
MATERIALS
| Pump housing: | Stainless steel, EN 1.4301, AISI 304 |
| Impeller: | Stainless steel, EN 1.4301, AISI 304 |
| Code for rubber | EPDM |
INSTALLATION
| Max. ambient temperature: |
55 °C |
| Maximum operating pressure: |
10 bar |
| Pipe connection standard: |
WHITWORTH THREAD RP |
| Pump inlet: | Rp 1 1/4 |
| Pump outlet: | Rp1 |
| Pressure rating for connection | PN 10 |
ELECTRICAL DATA
| Rated power - P2: | 1.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 200-240 V |
| Maximum current consumption: | 9.10-7.60 A |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Length of cable: | 1.5 m |
| Power plug: | AU plug |

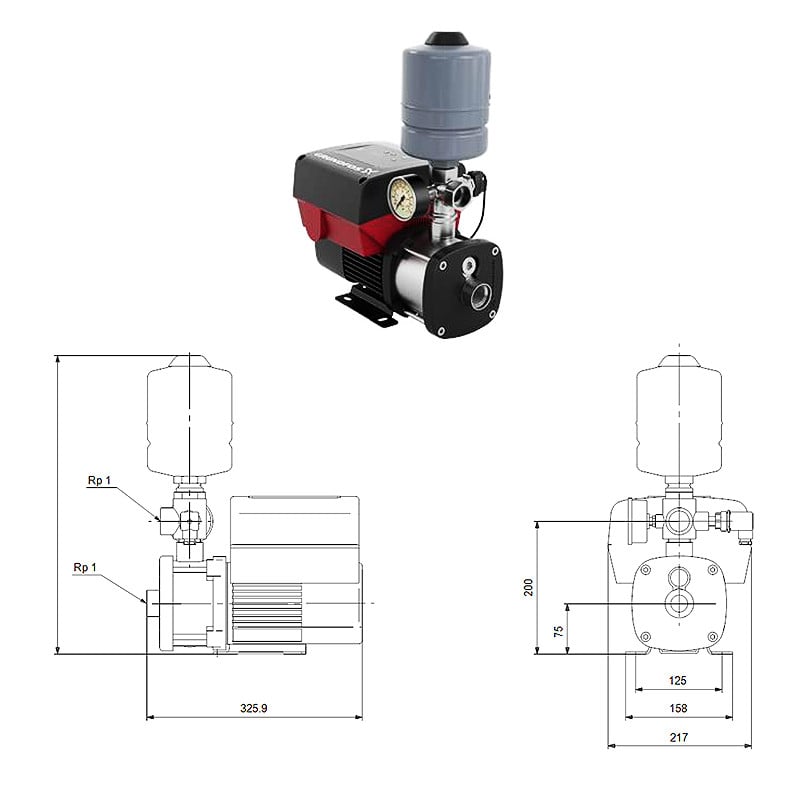

DRAWINGS
 |
 |
LITERATURE
 |
Grundfos CME Twin 5-62 Pressure Booster Pump Brochure |
