PRODUCT INFORMATION
CRFlex for remote water delivery systems

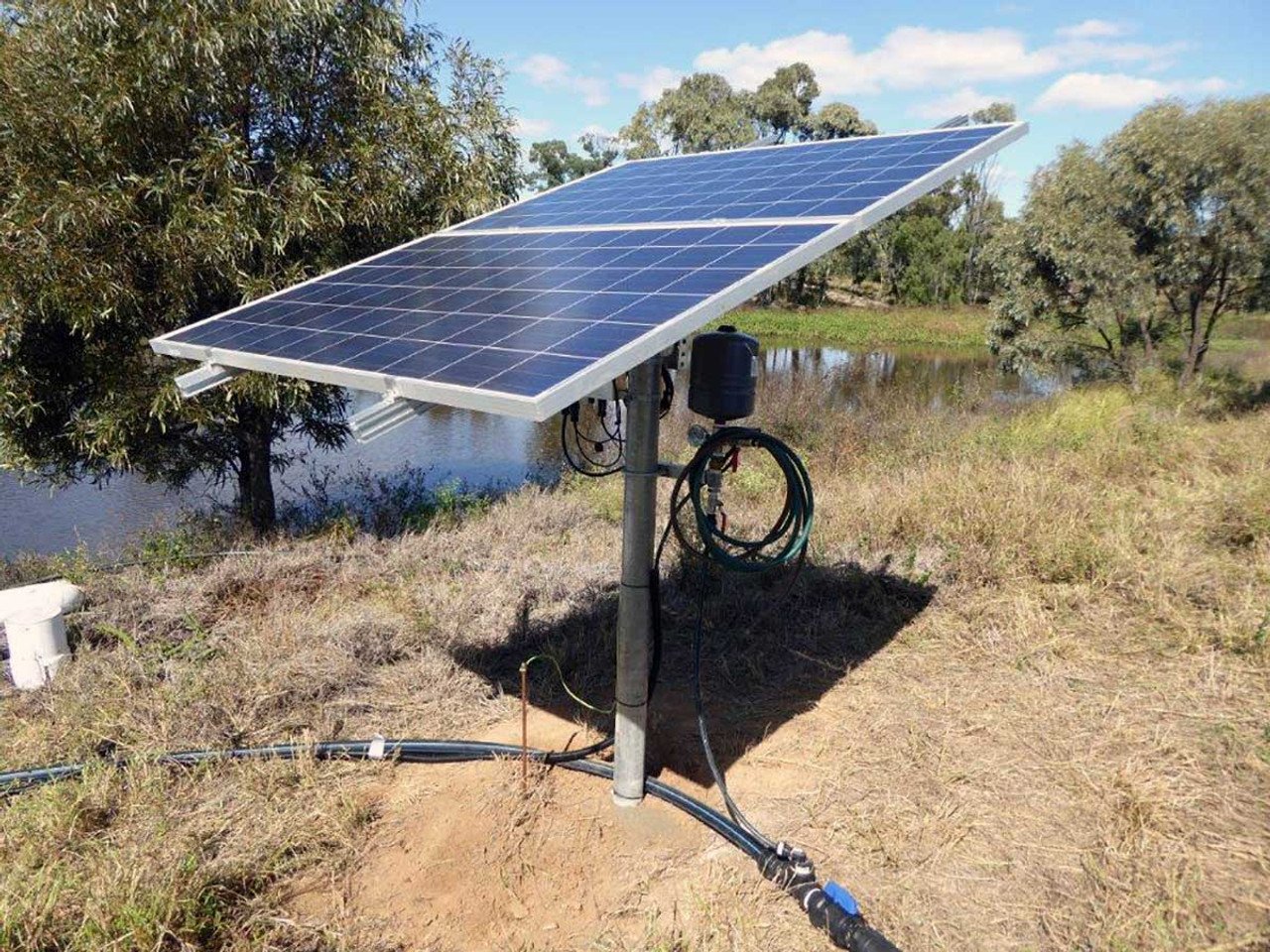

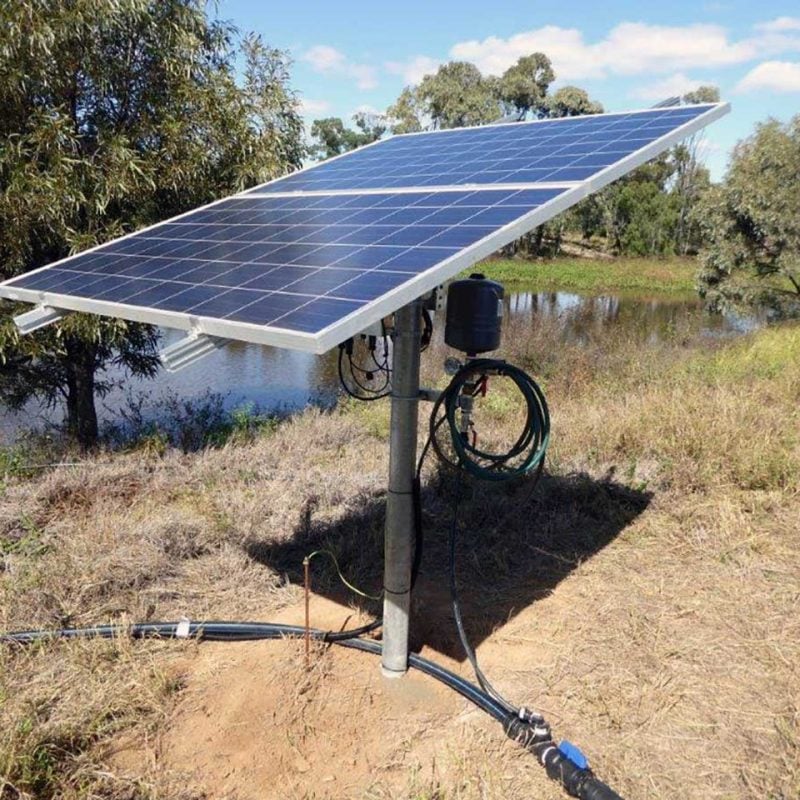

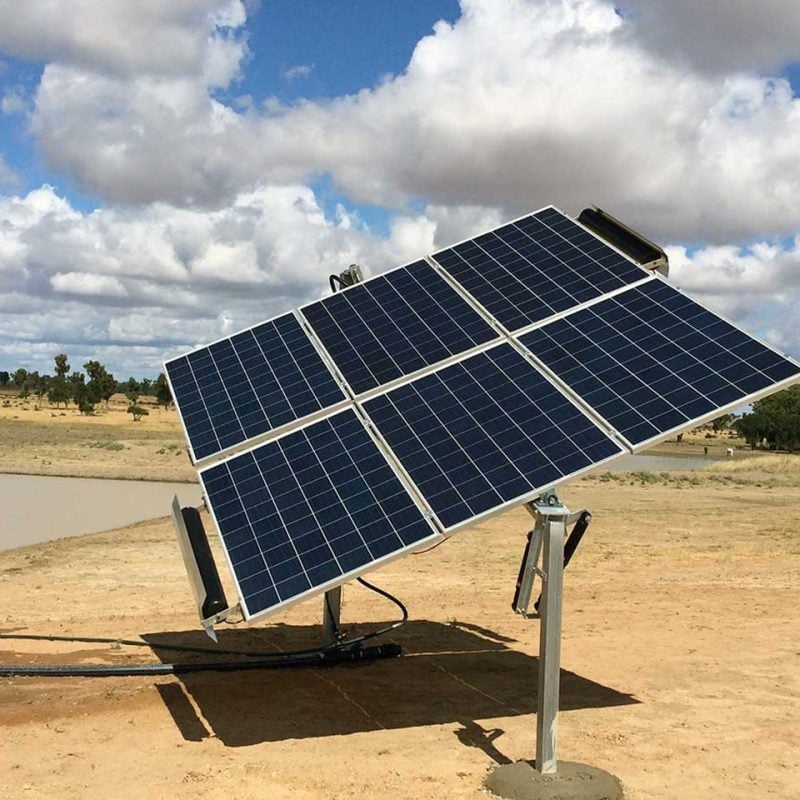

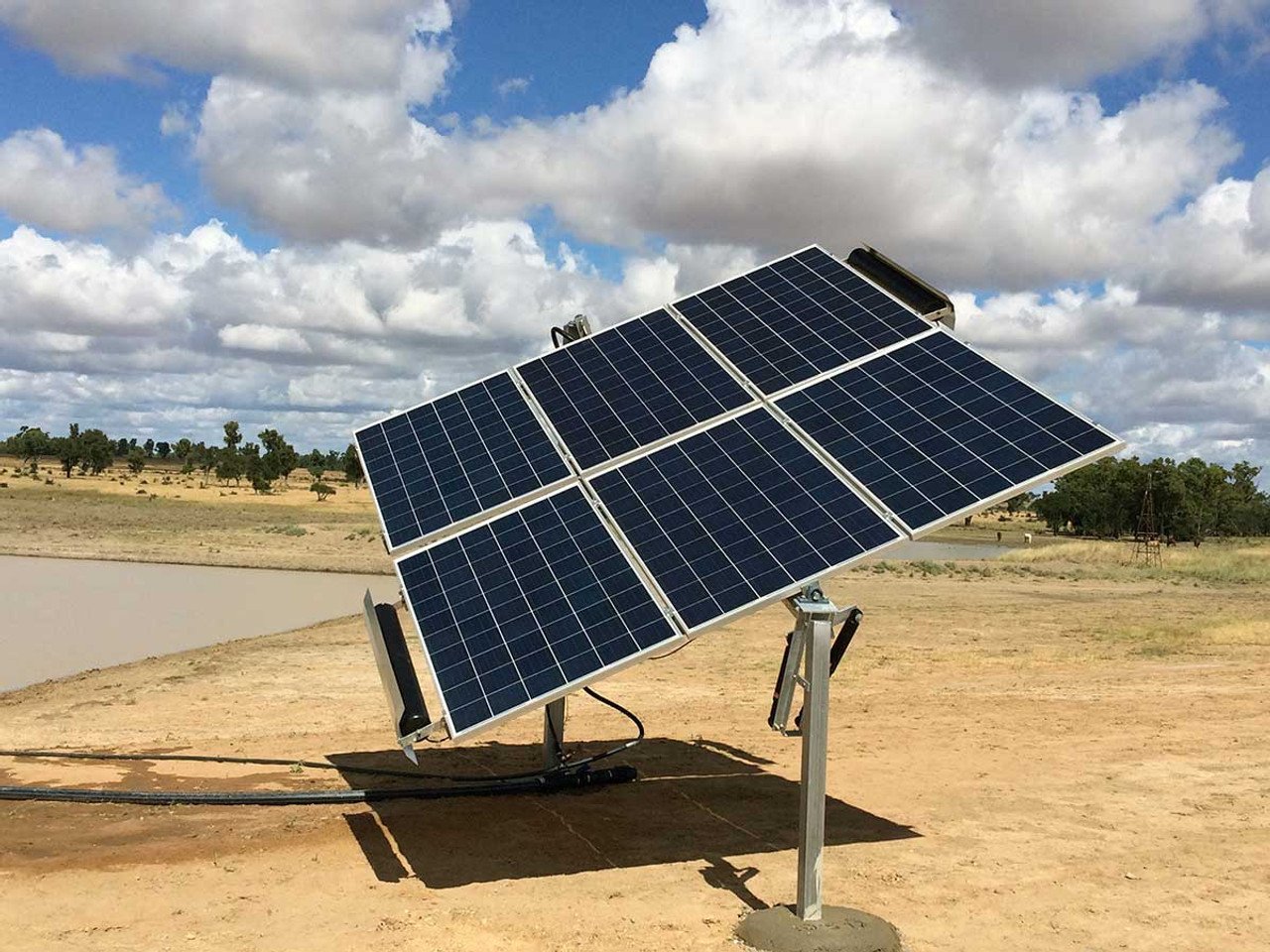

- The Grundfos CRFlex in-line multi-stage solar surface pump is designed for renewable energy supply and can operate in remote areas lacking mains electricity. Powered by a solar panel, the system is especially suitable for supplying water in applications such as the watering of livestock, pressure boosting and irrigation.

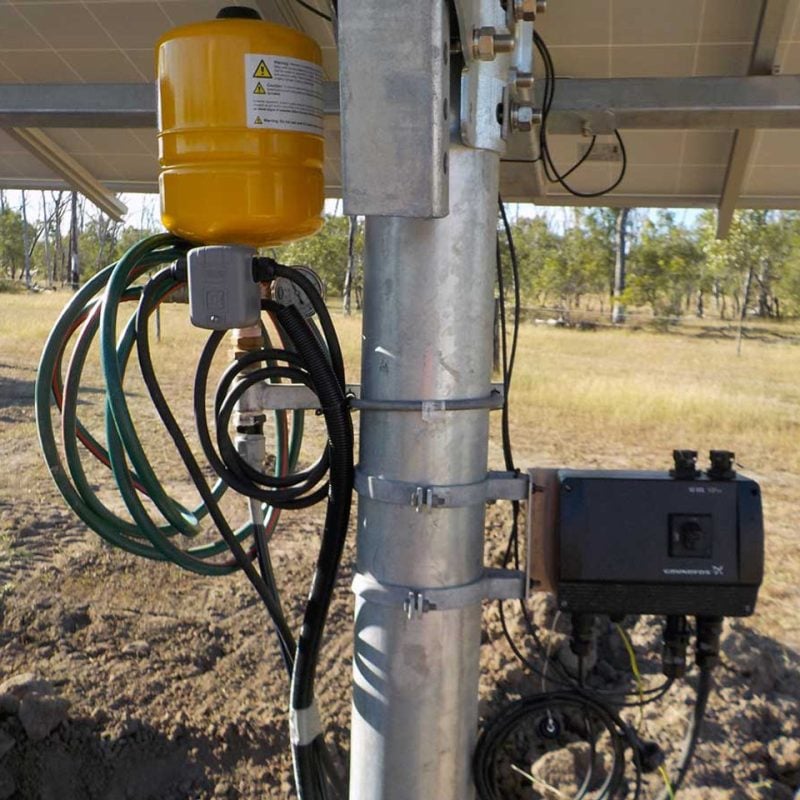

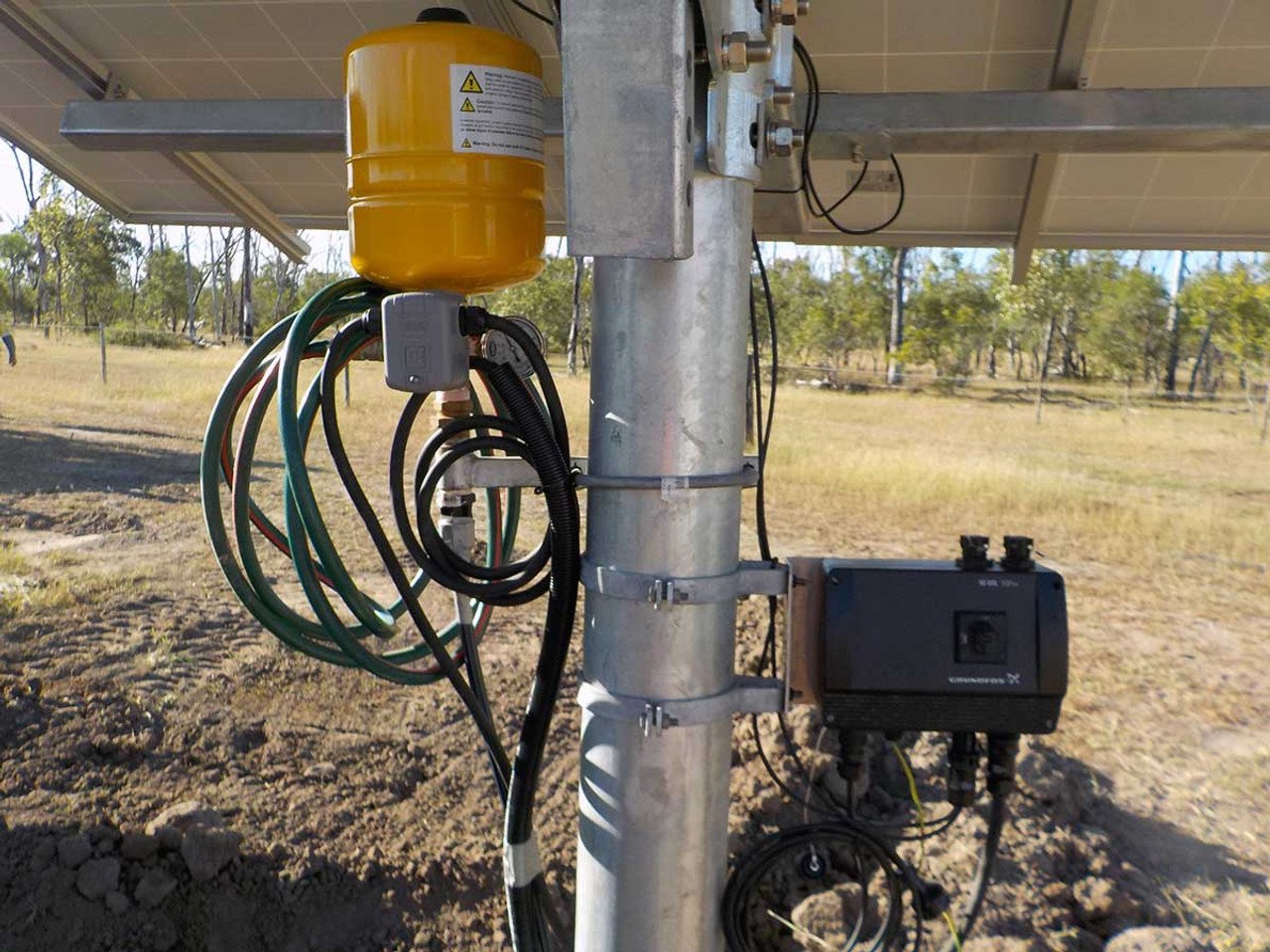

- The CRFlex solar surface pump comes with the MGFlex motor. We can deliver a complete solution including solar panels, IO 50 switch box, level switch for the water reservoir, water pipe, non-return valve and optional dry-running switch. This solution offers the benefits of easy installation, maintenance confined to periodic cleaning of the solar panels and a few, simple components.
Suitable for:
- Controls & Digital Groundwater Management
- Solar water solutions
- Solar Controls & Digital Water Management
- Solar Water Treatment Fertigation & Dosing
- Community water supply
Vertical multistage pumps with Renewable MGFlex motor for solar, wind and AC powersource. Runs on both AC and DC voltage
FEATURES & BENEFITS
SOLAR POWERED SURFACE MOUNT PUMP
Smart Control
- The smart internal motor control (Max. Power Point Tracking) adjusts pump speed accordingly to Solar DC power input.
Low Power Consumption
- A highly efficient motor means less power is required from solar panels to operate the pump
High Quality Materials
- Wetted components are of high grade stainless steel construction to ensure a long, trouble-free life
Permanently Protected
- Features electrical and overheating motor protection for added peace of mind
Wide Voltage Range
- Able to work under widely fluctuating AC/DC voltages.
TECHNICAL DATA
| Pump speed on which pump data are based | 3501 rpm |
| Rated flow | 2.2 m³/h |
| Rated head | 116.4 m |
| Stages | 17 |
| Impellers | 17 |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water | WRAS,ACS |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Model | A |
MATERIALS
| Pump housing | Stainless steel, AISI 316, EN 1.4408 |
| Impeller | Stainless steel, DIN W.-Nr. 1.4401, AISI 316 |
| Material code | A |
| Code for rubber | E |
INSTALLATION
| Max. ambient temperature | 50 °C |
| Maximum operating pressure | 25 bar |
| Max pressure at stated temp | 25 bar / 120 °C, 25 bar / -20 °C |
| Type of connection | FlexiClamp |
| Size of connection | DN 32 |
| Flange size for motor | FT115 |
| Connect code | CA |
LIQUID
| Pumped liquid | Water |
| Liquid temperature range | -20 .. 120 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
ELECTRICAL DATA
| Motor type | 90SC |
| Power input - P1 | 1.73 kW |
| Rated power - P2 | 1.5 kW |
| Rated voltage ac | 1 x 90-240 V |
| Rated voltage dc | 30 - 300 V |
| Rated current | 8.9 A |
| Cos phi - power factor | 0.99 |
| Rated speed | 500-3600 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | ELEC |
| Motor No | 98190192 |

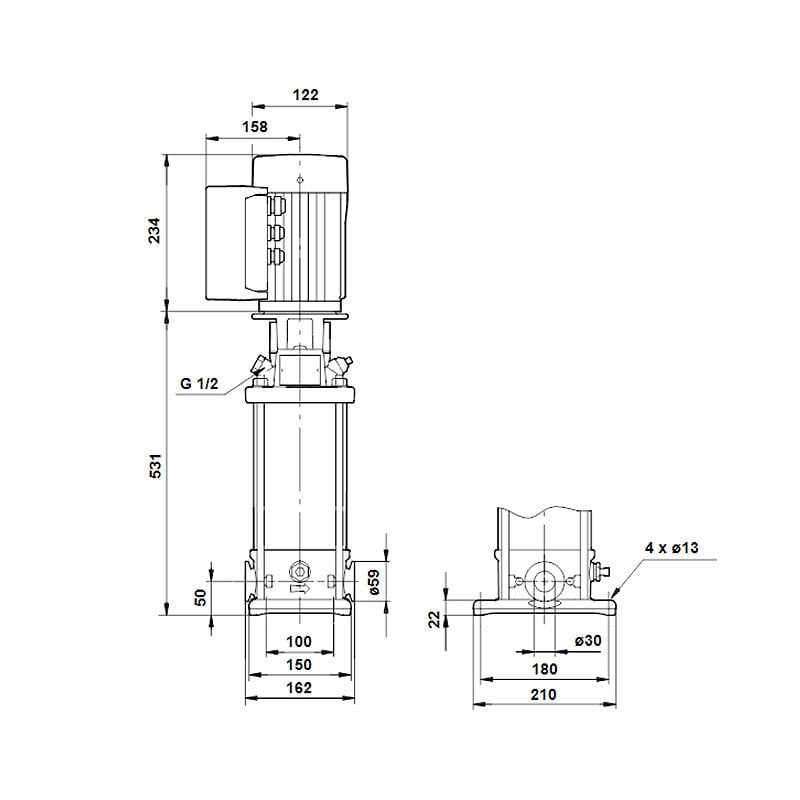

DRAWINGS
 |
 |
LITERATURE
 |
Grundfos CRNF 1-17 CRFlex Solar Surface Pump Brochure |
