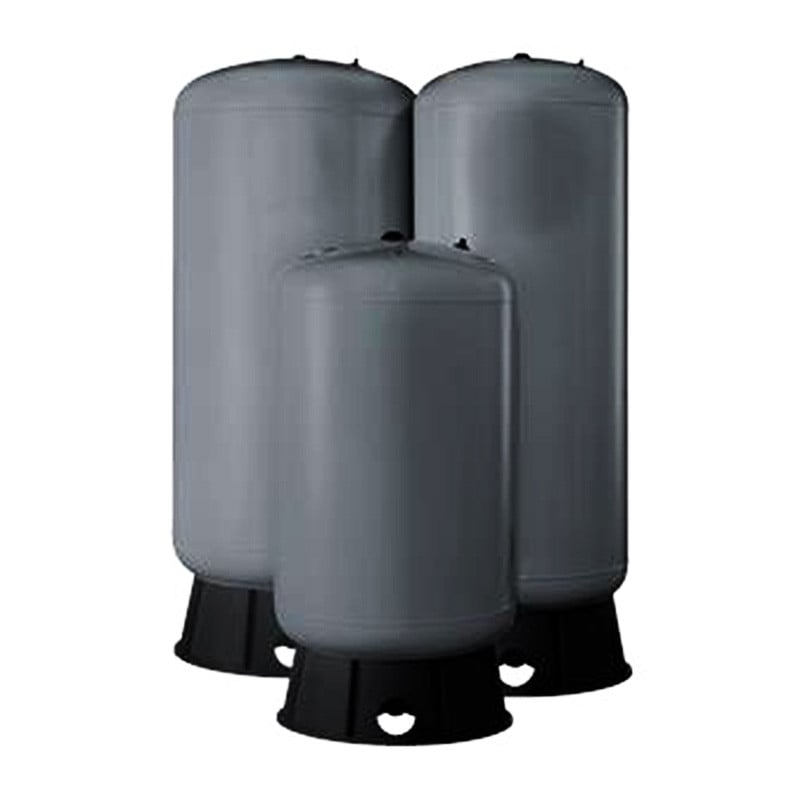

Grundfos Pressure Tank GT- D-200

SKU:
GT-D-200 PN10 G1¼ V

PRODUCT INFORMATION

GT-D is a steel pressure tank with double diaphragm designed for drinking water use. The diaphragm is made of chlorine-resistant 100% butyl with copolymer polypropylene liner for air and water separation.

FEATURES & BENEFITS

Grundfos GT D 200 PN10 G 11/4 is a DOUBLE DIAPHRAM pressure tank, with a capacity of l and installation. The tanks are approved for drinking water. The GT D 200 PN10 G 11/4 is a DOUBLE DIAPHRAM is designed for a maximum operation pressure of 10 bar and a maximum liquid temperature of 90 °C.

The tank is a steel pressure tank with double diaphragm. The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation.

The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation.

The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation.

The tanks have a non-replaceable diaphragm that is pre-charged with nitrogen (1.5 bar). The tanks have a non-toxic butyl rubber diaphragm, dividing the tank chamber into two compartments. The upper compartment contains compressed nitrogen. The lower compartment has a liner of polypropylene (PP) and is filled with water from the pump.

A pressure tank ensures controlled pressure in the water supply and thereby limits the switching frequency of the pump in case of low water consumption or leakage loss. The result is increased comfort in your installation by limiting the start/stop frequency of your pump, and it increases system comfort by compensating for pressure drops when a tap is opened, while reducing problems with water hammer in the pipework.

TECHNICAL DATA

LIQUID

Liquid temperature range: 0 .. 90 °C



TECHNICAL

Approvals: EAC
Membrane type: DOUBLE DIAPHRAGM
Tank volume: 200 l



MATERIALS

Tank: Carbon steel
Diaphragm: BUTYL



INSTALLATION

Maximum operating pressure: 10 bar
Type of connection: G
Size of connection: 11/4 inch
Tank orientation: Vertical

LITERATURE

 Grundfos Pressure Tank GT- D-200 Brochure Grundfos Pressure Tank GT- D-200 Brochure
