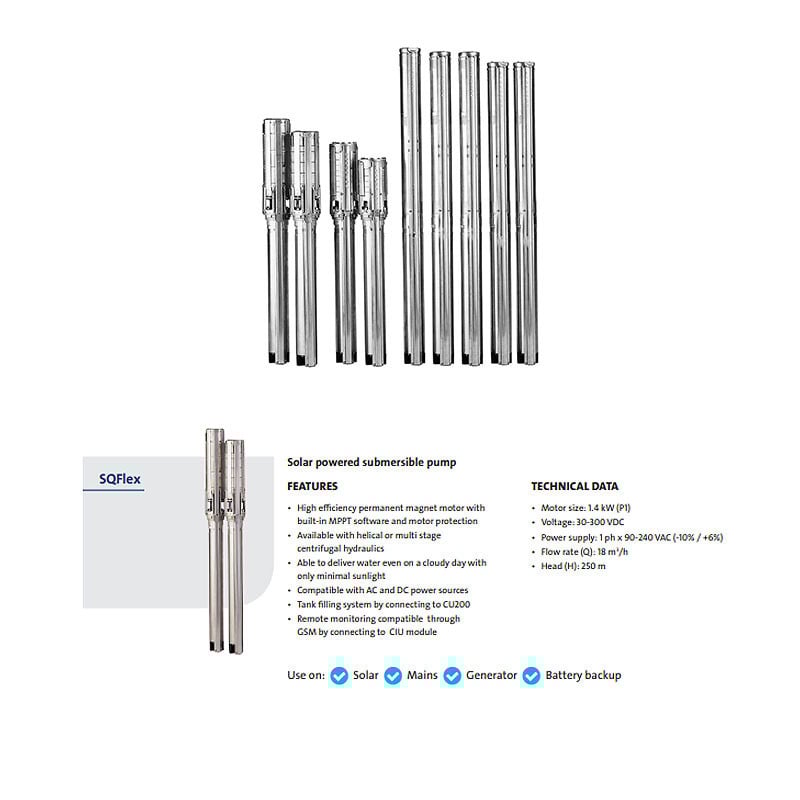

Grundfos SQF 5A-7 N Submersible Solar Pump

SKU:
SQF 5A-7 N

PRODUCT INFORMATION

Renewable energy submersible pumps with build in inverter for solar, wind and AC powersource. Runs on both AC and DC voltage

Suitable for:

  • Controls & Digital Groundwater Management
  • Solar water solutions
  • Solar Controls & Digital Water Management
  • Solar Water Treatment Fertigation & Dosing
  • Community water supply

FEATURES & BENEFITS

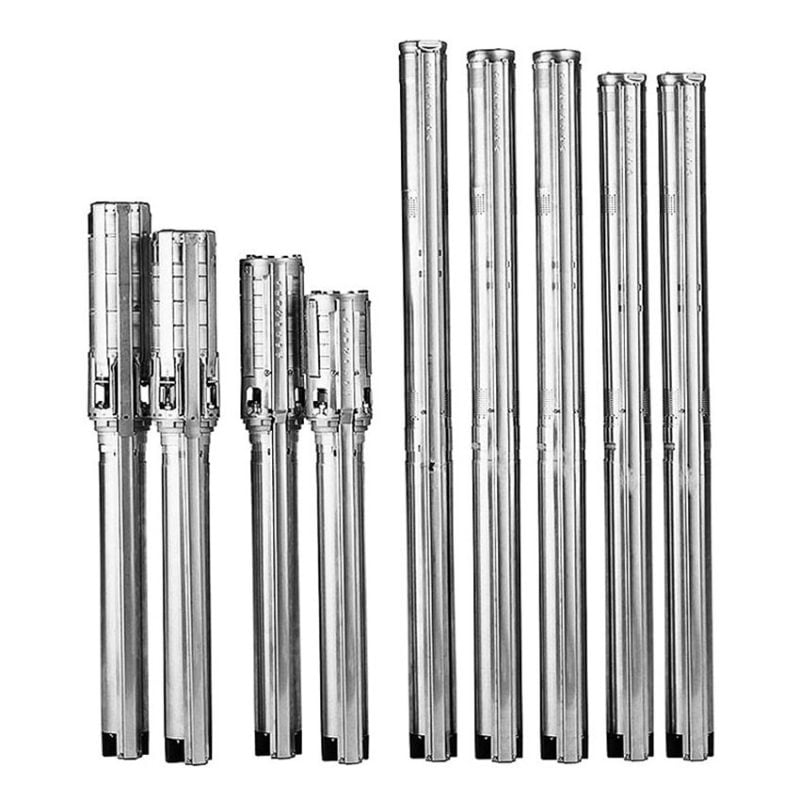

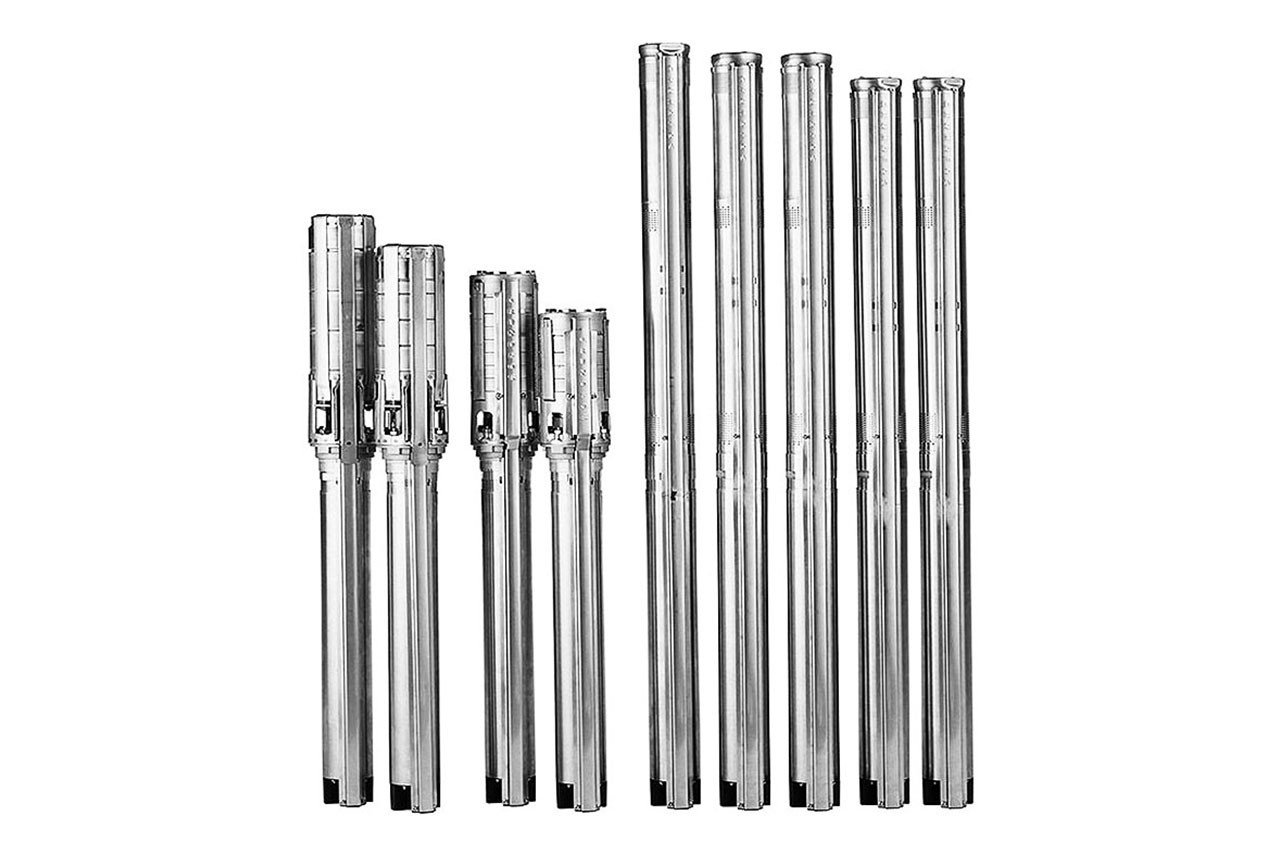

The 3" SQFlex centrifugal pump is for medium heads and flow rates.

The SQFlex system is a reliable water supply system based on renewable energy sources, such as solar and wind energy. Thanks to its flexible energy supply and performance, the SQFlex system can be combined and adapted to meet any need on the installation site.

The SQFlex system has a wide voltage range, built-in maximum power point tracking (MPPT) as well as dry-running, voltage and overload protection.

TECHNICAL DATA

Stages 7
Approvals UKCA,CE,EAC,CN RoHS
Exempt,Morocco, Sepro
Pump No 95027394
Valve pump with built-in
non-return valve
Zinc Anodes Yes, pump and motor



MATERIALS

Pump Stainless steel, DIN W.-Nr. 1.4401
AISI 316
Impeller Stainless steel, DIN W.-Nr. 1.4401



INSTALLATION

Maximum ambient pressure 15 bar
Pump outlet Rp 1 1/2
Minimum borehole diameter 104 mm



LIQUID

Pumped liquid Water
Liquid max temp 40 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³



ELECTRICAL DATA

Motor type MSF3N
Power input - P1 1.4 kW
Rated voltage ac 1 x 90-240 V
Rated voltage dc 30-300 V
Rated current 8.4 A
Power factor 1.0
Rated speed 3600 rpm
Start. method direct-on-line
Enclosure class (IEC 34-5) IP68
Insulation class (IEC 85) F
Built-in motor protection Y
Thermal protec internal
Length of cable 2 m
Motor No 96275341
Udc 300 V, 30 V

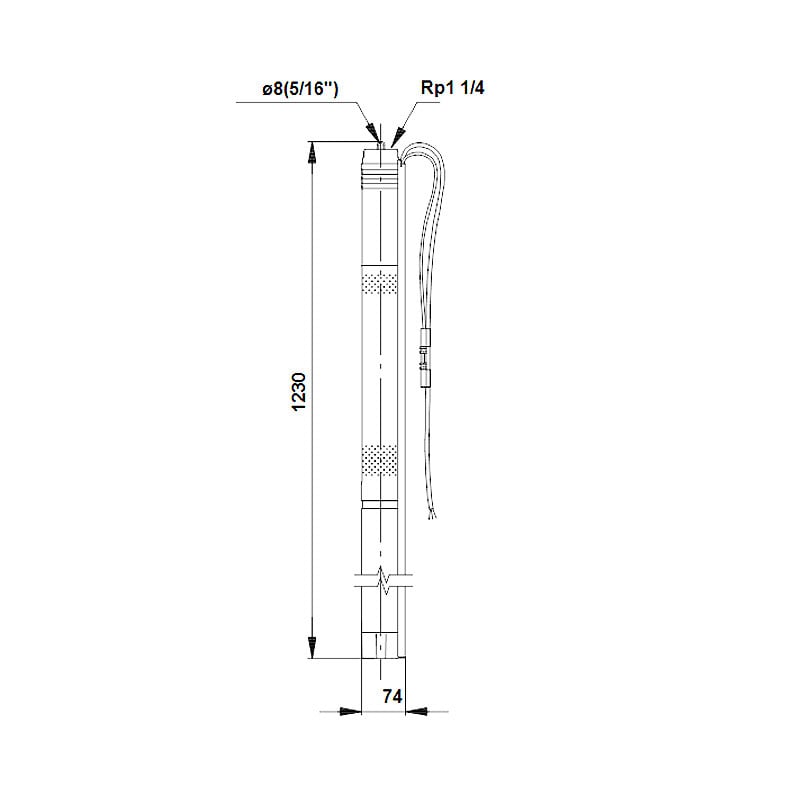

DRAWINGS
