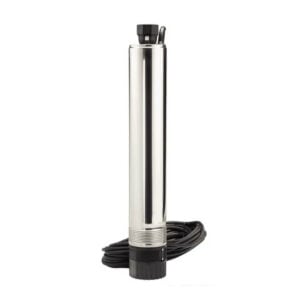

Onga Dominator 7535 Submersible Pump with PressControl

SKU:
DOMINATOR-7535-PC

PRODUCT INFORMATION

Onga Dominator 7535 Submersible Pump with PressControl

Submerged in a tank or well, these household pressure systems are completely silent. The Dominator range are highly efficient, robust and reliable. Sharing pump components with the highly respected Sta-Rite Signature 2000 submersible borehole pump range coupled with electronic pressure control the Dominator becomes a complete home pressure system.

APPLICATION

Domestic pressure system (with Minipress, Presscontrol or WaterSwitch), water transfer, irrigation and garden water supply

FEATURES & BENEFITS

  • Stainless steel body provides strength and superior protection against corrosion
  • Precision moulded internals from the Signature 2000 series for high efficiency and durability
  • Coupled with a Minipress, Presscontrol or WaterSwitch this becomes a reliable automatic pressure system with loss of prime protection
  • Fully insulated cable connection chamber
  • Inbuilt thermal overload
  • Max. head – 57 m
  • Max. flow – 94 lpm

TECHINCAL DATA

Type Type of current
Voltage Frequency Hz
Motor rating kW P1
Motor rating kW P2 RPM min Full Current
Motor protection
Insulation class IP rating
D75-35 1-phase
230
50
0.6
0.35
2850 3 A Inbuilt
F IP68
D75-56
1-phase
230
50
0.75 0.6 2850
3.3 A
Inbuilt
F
IP68
D115-57
1-phase
230
50 1.1 0.8 2850
5 A Inbuilt
F IP68

LITERATURE

Onga Dominator 7535 Submersible Pump with PressControl
Onga Dominator 7535 Submersible Pump with PressControl Brochure
