PRODUCT INFORMATION

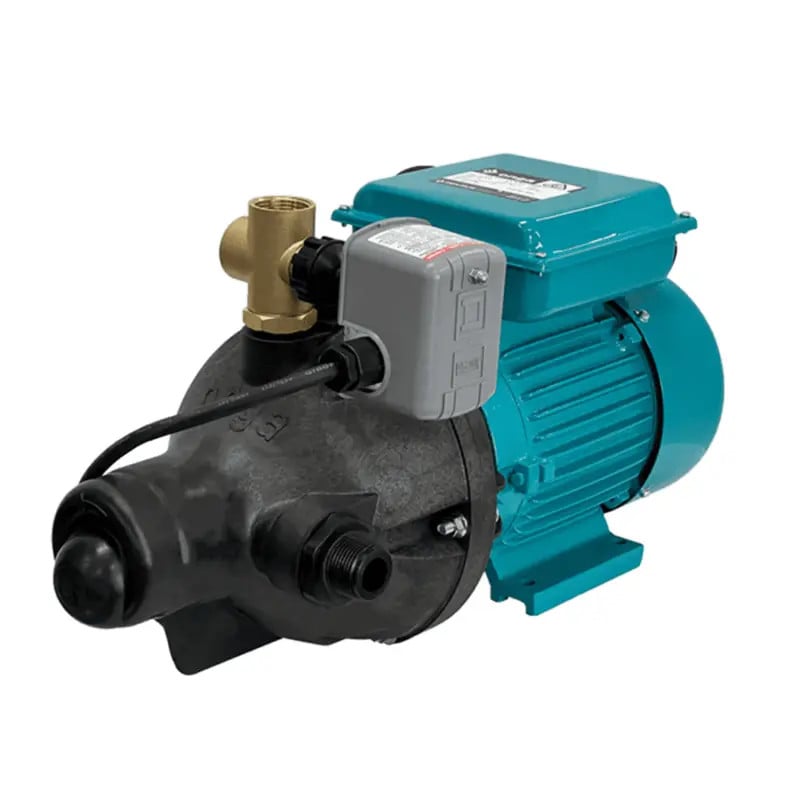

Onga 543 Series Farm Master Jet Pressure Pump
The 543 Series shallow well Farmmaster range is manufactured for both domestic and rural purposes. This range is constructed from industrial grade corrosion resistant thermoplastic and contains a built-in check valve close coupled to a cool running TEFC electric motor to give years of reliable service.
APPLICATION
For domestic, industrial or rural use as a manual or an automatic pressure system. Stock watering, irrigation and water transfer from a large range of water sources including tanks, bores, dams, creeks and rivers.
FEATURES & BENEFITS
- Industrial grade corrosion resistant thermoplastic
- No moving parts down bore
- Built-in check valve
- Shallow well lifts to 7.6 m
- Manual or automatic system
- Max. head – 41 m
- Max. flow – 118 lpm
TECHINCAL DATA
MATERIALS OF CONSTRUCTION
| COMPONENT |
543 | JJ400 | JJ600 | OJ700 | OJ800 |
| PUMP CASING |
NORYL | CAST IRON | CAST IRON | CAST IRON | CAST IRON |
| IMPELLER |
POLYCARB GF | POLYCARB GF | POLYCARB GF | POLYCARB GF | POLYCARB GF |
| BAFFLE |
NORYL | ABS GF | NORYL | NORYL | NORYL |
| END SHIELD | CAST IRON | CAST IRON | CAST IRON | CAST IRON | CAST IRON |
| SHAFT SLEEVE |
NYLON | NYLON | NYLON | NYLON | STAINLESS STEEL |
| MOTOR SHAFT |
Mild Steel | Mild Steel | Mild Steel | Mild Steel | Mild Steel |
| MOTOR SHELL | CAST IRON | ALUMINIUM | CAST IRON | CAST IRON | CAST IRON |
| O-RING`S | NITRILE | NITRILE | NITRILE | NITRILE | NITRILE |
LITERATURE
 |
Onga 543 Series Farm Master Jet Pressure Pump Brochure |
