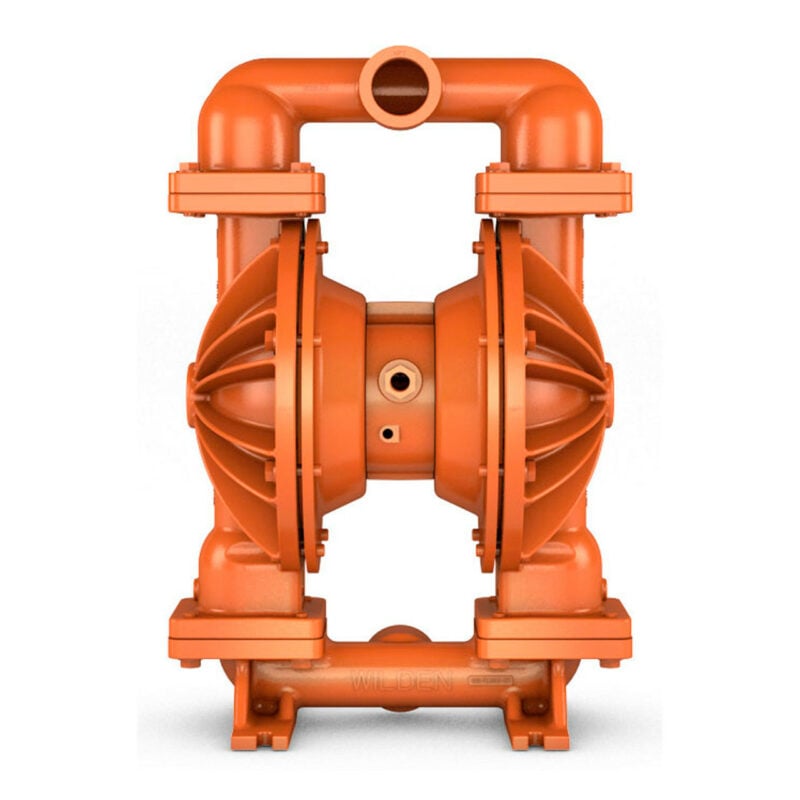

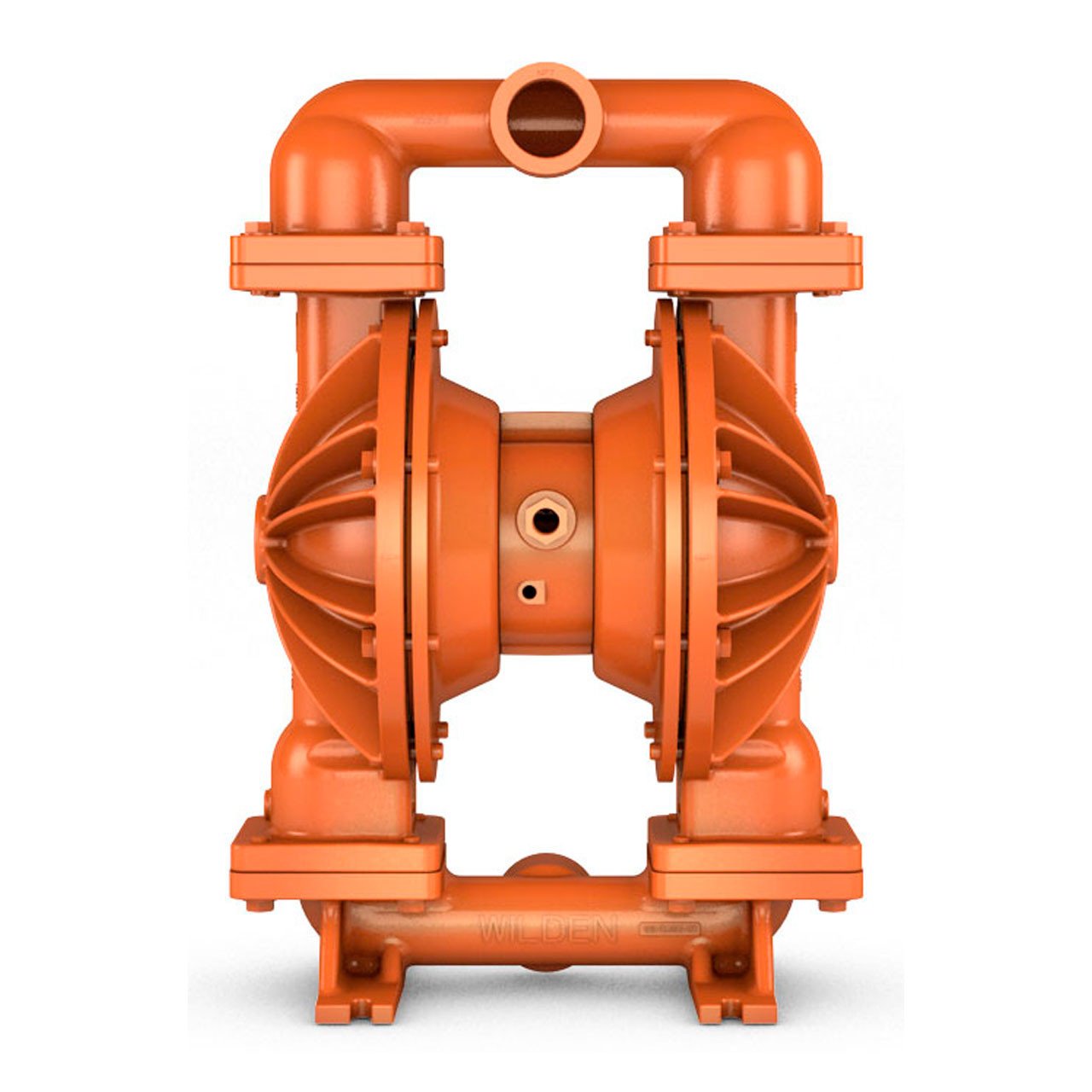

Wilden P820 AODD Pump, 51mm Pro-Flo, Bolted Aluminum, NPT

SKU:
P820-ALM-NPT

PRODUCT HELP

Below are two guides to help you with product selection; temperature limits and a chemical guide. For further information please check features and specifications.

TEMPERATURE LIMITS

Please Note: It is IMPORTANT to also read Section 1 of the applicable Wilden Brochure which explains Pump and Diaphragm temperature limits. This will help you with selecting the correct pump for you application.

Diaphragm Material Temperature Limit
Acetal –29°C to 82°C
Buna-N –12°C to 82°C
Geolast® –40°C to 82°C
Neoprene –18°C to 93°C
Nordel® EPDM –51°C to 138°C
Nylon –18°C to 93°C
PFA –7°C to 107°C
Polypropylene 0°C to 79°C
Polyurethane –12°C to 66°C
PVDF –12°C to 107°C
PTFE 4°C to 104°C
PTFE with EPDM-backed 4°C to 137°C
PTFE with Neoprene-backed 4°C to 93°C
Saniflex™ –29°C to 104°C
Viton® FKM –40°C to 177°C
Wil-Flex™ (Santoprene) –40°C to 107°C

CHEMICAL GUIDE

The Wilden chemical resistance guide is compiled from numerous reliable sources and cross-checked; however, it is only intended as an additional source of information.Diaphragm life not only depends on a diaphragm’s chemical compatibility with the process fluid but also on the process conditions. These conditions will vary depending on the abrasiveness of your process fluid, temperature, size of diaphragm, pumping media and lift conditions. Consult your authorized Wilden distributor regarding which diaphragm material will work best for your application requirements.

PRODUCT INFORMATION

As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump provides increased flow rates, long-term reliability and reduced air consumption, making it the ideal solution for basic general industrial applications. In addition, the FIT pump utilizes a bolted design for superior product containment and is perfect for applications where reliable operation and consistent performance are required.

CERTIFICATIONS

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community.

FEATURES

FEATURE DESCRIPTION
Flow Rate Superior flow rates
Robustness Fitted with robust Pro-Flo ADS
Containment Bolted construction for superior containment
No Priming Self Priming
Run Dry Dry run without damage
Shearing Shear-sensitive
Longevity Longest Mean Time Between Repair (MTBR)
Temperature Tolerance Superior anti-freezing
Reliability Increased On/Off reliability

SPECIFICATIONS

SPECIFICATION DESCRIPTION
Series Pro-Flo
Model P820
Inlet 51mm (2")
Outlet 51mm (2")
Air Inlet 19 mm (3/4”)
Material Aluminium
Assembly Bolted
Connection Type NPT
Piston Traditional
Stroke Full Stroke
Max Flow Rate 609 lpm (161 gpm)
Wetted Path Material Aluminium
Gearing 1:1
Max Air Pressure 125 psi
Max. Solids Passage 6.4 mm (1/4")
Weight 47 kg (104 lb)
Size (HxWxD) 670 x 453 x 510(mm)
Please Note: Specification's are a guild only and may change without notice. Please also read the applicable Wilden Brochure for full specifications. E&OE.

LITERATURE AND DRAWINGS

Wilden General Brochure (WIL-18040-C)
Wilden FIT Brochure (WIL-11502-C)
Wilden P820/830 Metal EOM (WIL-11590-E)
