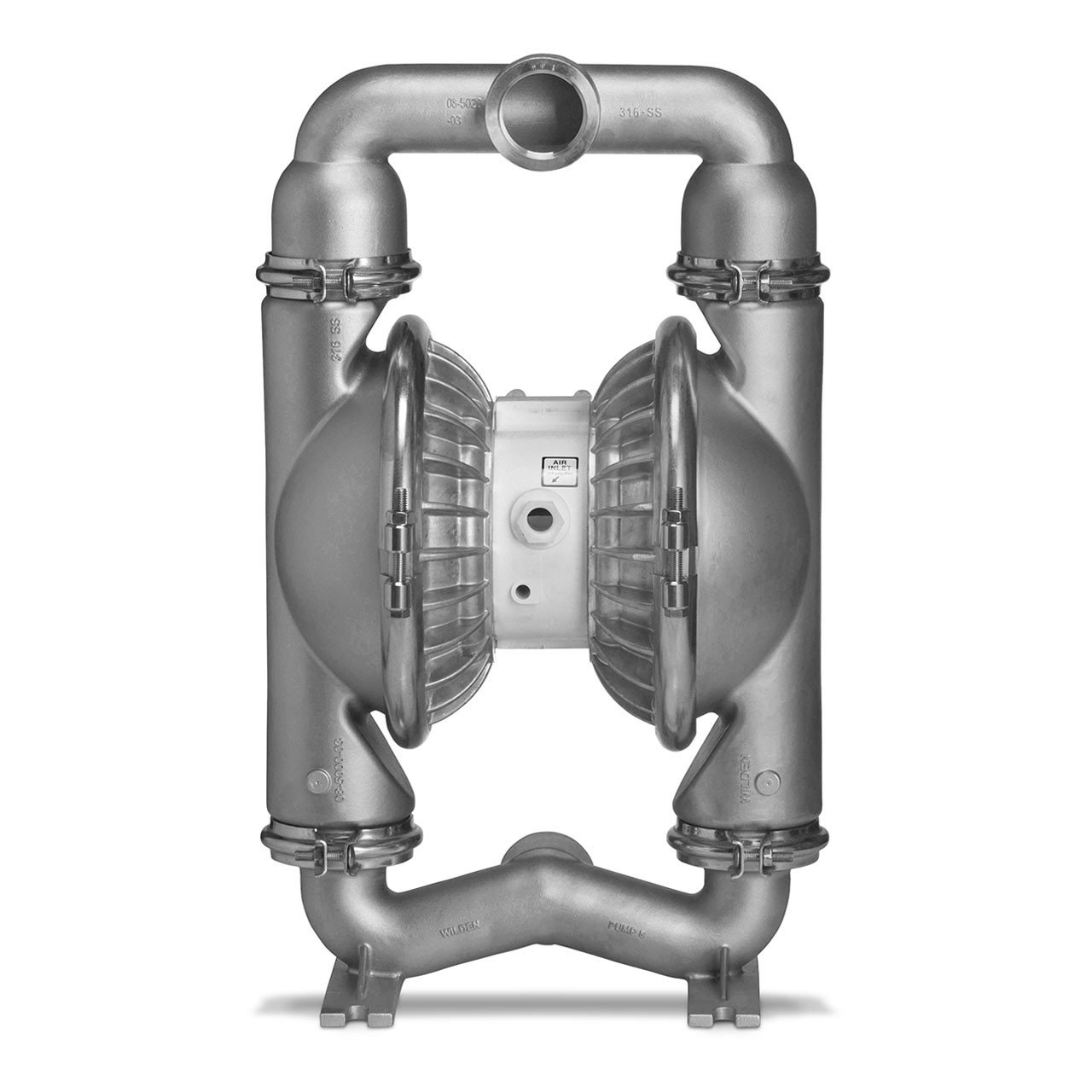

Wilden P8 AODD Pump, 51mm Pro-Flo, Clamped Stainless Steel, NPT

SKU:
P8-SS-NPT

PRODUCT HELP

Below are two guides to help you with product selection; temperature limits and a chemical guide. For further information please check features and specifications.

TEMPERATURE LIMITS

Please Note: It is IMPORTANT to also read Section 1 of the applicable Wilden Brochure which explains Pump and Diaphragm temperature limits. This will help you with selecting the correct pump for you application.

Diaphragm Material Temperature Limit
Acetal –29°C to 82°C
Buna-N –12°C to 82°C
Geolast® –40°C to 82°C
Neoprene –18°C to 93°C
Nordel® EPDM –51°C to 138°C
Nylon –18°C to 93°C
PFA –7°C to 107°C
Polypropylene 0°C to 79°C
Polyurethane –12°C to 66°C
PVDF –12°C to 107°C
PTFE 4°C to 104°C
PTFE with EPDM-backed 4°C to 137°C
PTFE with Neoprene-backed 4°C to 93°C
Saniflex™ –29°C to 104°C
Viton® FKM –40°C to 177°C
Wil-Flex™ (Santoprene) –40°C to 107°C

CHEMICAL GUIDE

The Wilden chemical resistance guide is compiled from numerous reliable sources and cross-checked; however, it is only intended as an additional source of information. Diaphragm life not only depends on a diaphragm’s chemical compatibility with the process fluid but also on the process conditions. These conditions will vary depending on the abrasiveness of your process fluid, temperature, size of diaphragm, pumping media and lift conditions. Consult your authorized Wilden distributor regarding which diaphragm material will work best for your application requirements.

PRODUCT INFORMATION

As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump is designed for basic general industrial applications with good flow, reliability and air consumption. It utilizes a clamped-band design for easy assembly and disassembly. This robust combination is perfect for applications where reliable operation and consistent performance maintenance are required, including dewatering, paint & coatings and ceramics.

CERTIFICATIONS

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community.

FEATURES

FEATURE DESCRIPTION
Robustness Fitted with robust Pro-Flo ADS
Fast Maintenance Clamped connections for fast maintenance
No Priming Self Priming
Run Dry Dry run without damage
Shearing Shear-sensitive
Longevity Longest Mean Time Between Repair (MTBR)
Temperature Tolerance Superior anti-freezing
Reliability Increased On/Off reliability

SPECIFICATIONS

SPECIFICATION DESCRIPTION
Series Pro-Flo
Model P8
Inlet 51mm (2")
Outlet 51mm (2")
Air Inlet 13 mm (1/2”)
Material Stainless Steel
Assembly Clamped
Connection Type NPT
Piston Traditional
Stroke Full Stroke
Max Flow Rate 675 lpm (178 gpm)
Wetted Path Material Stainless Steel
Gearing 1:1
Max Air Pressure 125 psi
Max. Solids Passage 6.4 mm (1/4")
Weight 51 kg (112 lb)
Size (HxWxD) 668 x 404 x 343(mm)
Please Note: Specification's are a guild only and may change without notice. Please also read the applicable Wilden Brochure for full specifications. E&OE.

LITERATURE AND DRAWINGS

Wilden General Brochure (WIL-18040-C)
Wilden Original Brochure (WIL-10010-C)
Wilden P8 Metal EOM (WIL-10320-E)
