PRODUCT INFORMATION

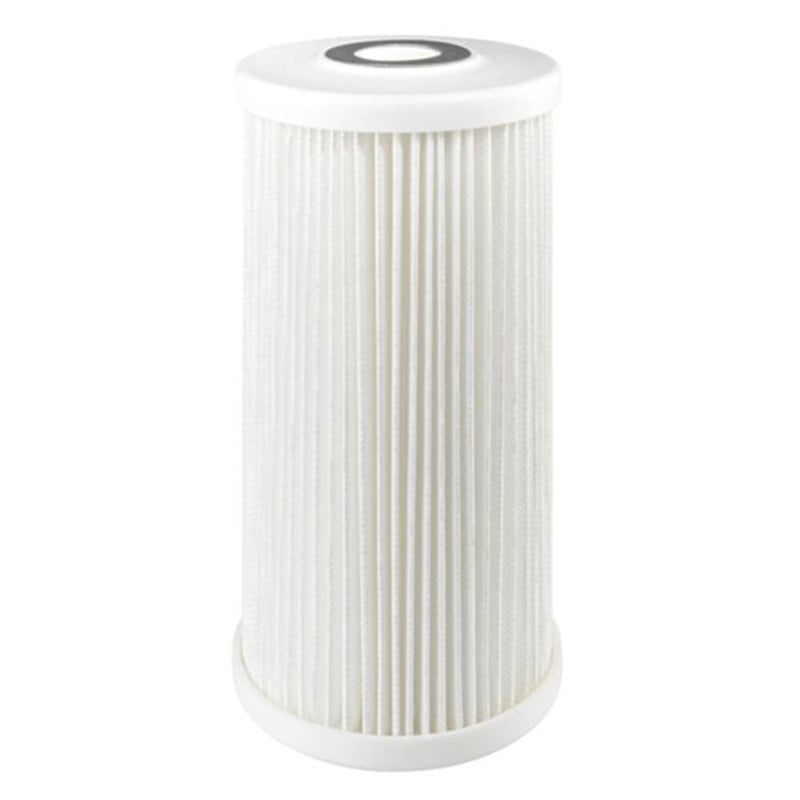

50 Micron Pleated Coarse Sediment Filter 20" Big
FEATURES & BENEFITS
SEDIMENT FILTERS
- Sediment Filters are used to remove particles from water and protect downstream taps etc from clogging
- Sediment cartridges are resistant to attack by bacteria and chemicals and are suitable for a wide range of applications, including domestic, commercial, and industrial.
CS & TS Pleated Cartridge Rang
- Pleated cartridges are commonly used as primary filtration for sediment as they can be cleaned and reused.
- The 20 & 25 micron versions are often used as the first in a series of filters, including as the primary filter in UV kits.
- They have a large surface area to accommodate high flows with a low pressure drop.
TECHNICAL DATA
| Brand | Atlas Filtri |
| Product Type | Pleated Filters |
| Flow Rate (L/min) | 82 |
| Material | Polypropylene/Polyester Fabric |
| Nominal Micron Rating | 50 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Filter | 20" Big |
LITERATURE
 |
Atlas Filtri 50 Micron Pleated Coarse Sediment Filter 20" Big Brochure |
