Atlas Filtri Duplex Plus Mono Filter. Housing 10"

SKU:
ATL-KITDP10MONO1INAB

PRODUCT INFORMATION

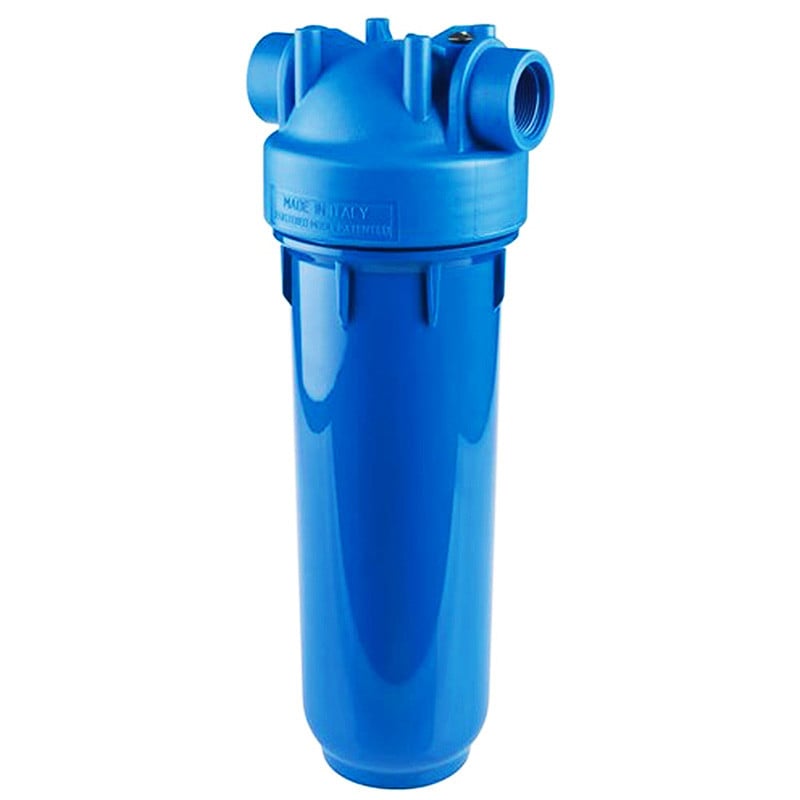

DP Mono Filter Housing 10" Std 1" In/Out with Spanner & Bracket

A Mono 10” Standard Filter housing, with 1” in/out plastic BSP threads.

Comes complete with bracket, spanner and o-ring lubricant.

Designed to accept 10”x 2.5” filter cartridges.

These are most commonly used domestic underbench or light commercial applications

FEATURES & BENEFITS

Italian made, with an international patent for superior construction, Atlas Filtri Standard Housings are high quality, environmentally friendly housings suitable for a wide range of standard flow/capacity filtering needs.

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)

TECHNICAL DATA

Brand Atlas Filtri
Product Type Std Housings
Material PET
Inlet/Outlet 1"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Underbench
Filter 10" Std



WORKING CONDITIONS

Max Working Pressure 8bar (116 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)
