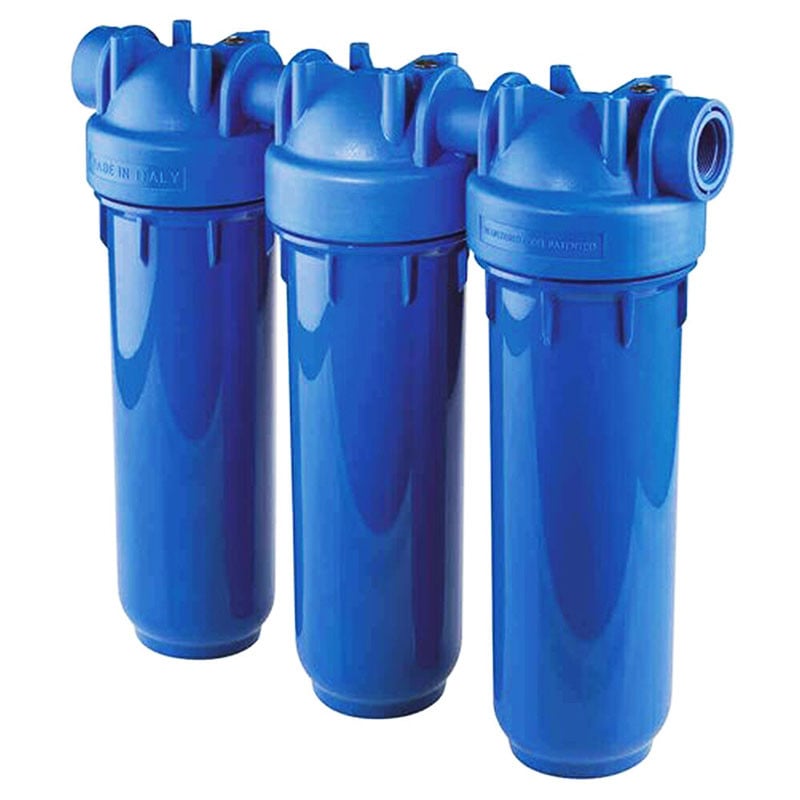

Atlas Filtri Duplex Plus Trio Filter Housing 10"

SKU:
ATL-KITDP10TRIO1INAB

PRODUCT INFORMATION

DP Trio Filter Housing 10" Std 1" In/Out with Spanner & Bracket

A Trio 10” Standard Filter housing, with 1” in/out plastic BSP threads.

Chooses the Trio with 3 filter bowls on a single moulded head to save time plumbing up separate housings when you need to use three in series and reduce the number of potential leak points,

Designed to accept 10”x 2.5” filter cartridges.

These are most commonly used domestic underbench or light commercial applications

FEATURES & BENEFITS

Italian made, with an international patent for superior construction, Atlas Filtri Standard Housings are high quality, environmentally friendly housings suitable for a wide range of standard flow/capacity filtering needs.

These are available in:

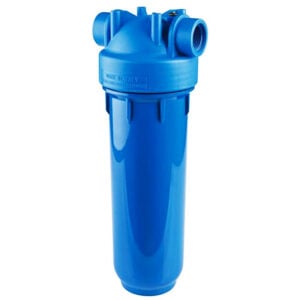

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)

TECHNICAL DATA

Brand Atlas Filtri
Product Type Std Housings
Material PET
Inlet/Outlet 1"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Underbench
Filter 10" Std



WORKING CONDITIONS

Max Working Pressure 8bar (116 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)
