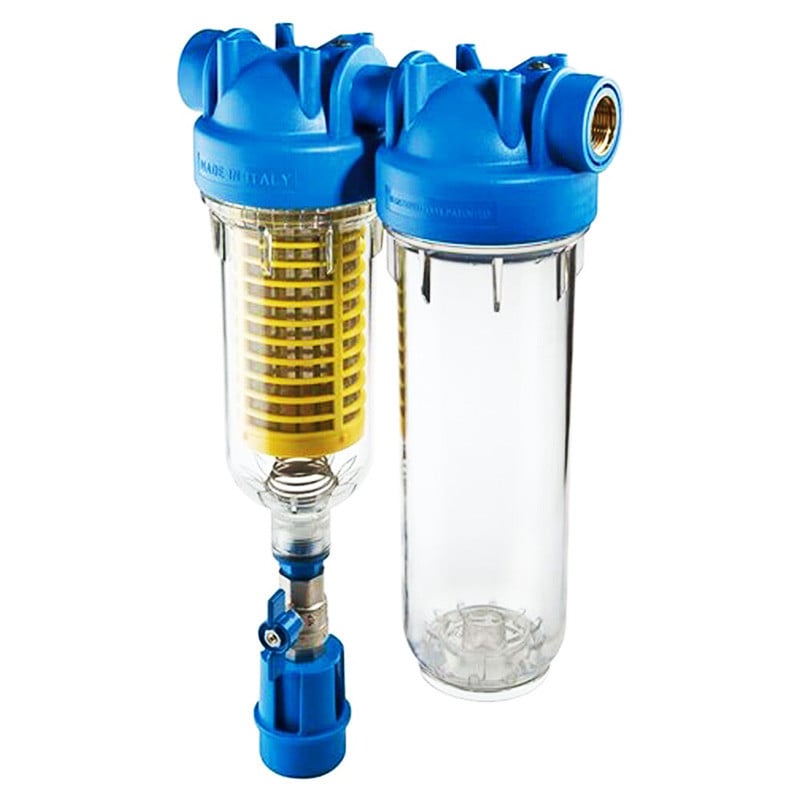

Atlas Filtri Hydra. Rainmaster Duo Filter

SKU:
ATL-HYDRADUORAH1IN

PRODUCT INFORMATION

Hydra Duo with 90mic Self Cleaning Filter Included JustAdd a 10" Std Filter Cartridge

A Hydra Duo Self Cleaning Filter with 1” BSP Brass inlet/outlet with 90 micron stainless steel mesh filter moulded to an empty 10” standard housing.

For a complete solution – Just add a filter that suits your needs from our range of 10” standard filter cartridges.

Flow rates will vary depending on which filter cartridge you select.

Suitable for coarse sediment filtration in homes on municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications. These filters perform well with lower pressure drop when higher sediment loads are present.

The filter bowl is made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.

FEATURES & BENEFITS

Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.

Features include:

  • A range of low maintenance mesh filters are available to fit your needs
  • Cartridges feature an antimicrobial flat seal
  • Counter-current self cleaning system that is can be either manual or autoatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural

All Hydra models come with

    • Spanner
    • Bracket
    • Lubrikit (O-ring Lubricant)

TECHNICAL DATA

Brand Atlas Filtri
Product Type Hydra Self CleaningFilters
Flow Rate (L/min) 95
Material Polypropylene/PET
Nominal Micron Rating 90
Inlet/Outlet 1"
Min Pressure (bar) 1.8
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply



WORKING CONDITIONS

Max Working Pressure 8bar (116 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)

LITERATURE

Atlas Filtri Hydra Rainmaster Duo Filter Kit 90 Mic Mesh Filter & Empty Std 10 Atlas Filtri Hydra Rainmaster Duo Filter Kit 90 Mic Mesh Filter & Empty Std 10" Housing Brochure
