PRODUCT INFORMATION
The new Vortex P8 with Tandem Motors pump gives double the water pressure, thus doubling the head over any standard pump. It is environmentally friendly with its world-class leading lubrication free pneumatic motor and rust-free technology.
Specifically developed to operate under severe mining conditions and have low air consumption, are lightweight, compact, and provide a combination of toughness, durability, versatility, and offer benefits never seen before.
SPECIFICATIONS
| Noise Level |
85Dba @ 1m |
Overall Height
|
435 mm |
| Overall Width |
340 mm |
Weight
|
45 Kg |
| Power Rating |
8 Kw |
Working Pressure
|
100-700 kPa |
Air Inlet
|
1” BSP |
Air Outlet
|
32mm |
Water Outlet
|
2” BSP |
Swage Nipple Outlet
|
50 mm |
Air Consumption @ 6 bar
|
90 cfm |
Max Head @ 700 Kpa
|
140 m |
| Max Flow Rate @ 700 Kpa |
764 L/min |
| Max Head @ 400 Kpa |
85 m |
| Max Flow Rate @ 400 Kpa |
674 L/min |
FEATURES & BENEFITS
| |
Feature |
Benefit |
| 1 |
Pumping Section |
|
| 1.1 |
Inverted Volute Chamber & Impeller with Side Suction
|
Pump is placed on top of dirt, not in it. No need for water filtering screen. What it swallows it will pump. |
| 1.2 |
Vortex Pumping |
Ability to pump grit, fibers, and small stones, without jamming |
| 1.3 |
Inverted Impeller & Volute, are made of SG42 Cast Iron |
Allows for flood feed through the sides, no suction required and hard wearing |
| 1.4 |
Detachable Impeller cover with “0” ring seal |
Three 17mm bolts remove “O” ring cover gaining quick access to the impeller for cleaning. |
| 1.5 |
Optional High Volume non-return valve |
Helps to keep dirt out of the pump when it stops pumping. |
| 1.6 |
Ability to lift the pump out of the water while running. |
Pump will maintain water pressure when lifted out of the water allowing transfer to the pump position with little back flow |
| 2 |
Motor Section |
|
| 2.1 |
Environmentally Friendly Lubrication-free motor.
|
Motor can be run continuously without oil, eliminating environmental oil pollution, and has an extended motor life. |
| 2.2 |
Stainless steel Cylinder and hardened & Rust-free motor parts |
Rust-free and highly wear-resistant. |
| 2.3 |
An Inverted Impeller allows no high-pressure water on the spindle seals. |
Spindle seals control low exhaust air pressure in the motor housing from entering the pump volute. There is no high-pressure water being controlled. |
| 2.4 |
Ability to run continuously out of the water. |
Motor housing seal is cooled by air passing through the motor into the exhaust. |
| 2.5 |
SG42 Cast iron Body |
Very tough and durable |
| 2.6 |
Ergonomically designed carry handle. |
Easy to carry and is also the exhaust housing. |
| 3 |
Filter Inlet Section |
|
| 3.1 |
Built in high capacity in line micro filtering system with flushable and replaceable filter element. |
Day-to-day element cleaning is easy and accessible and replacing is via external screw cap. |

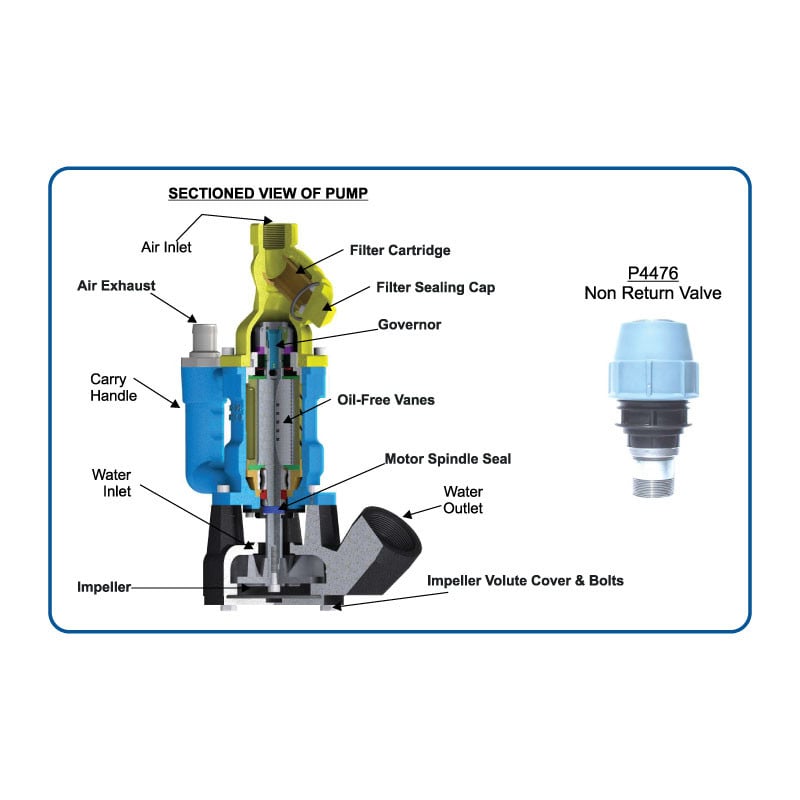

LITERATURE AND DRAWINGS
