PRODUCT INFORMATION

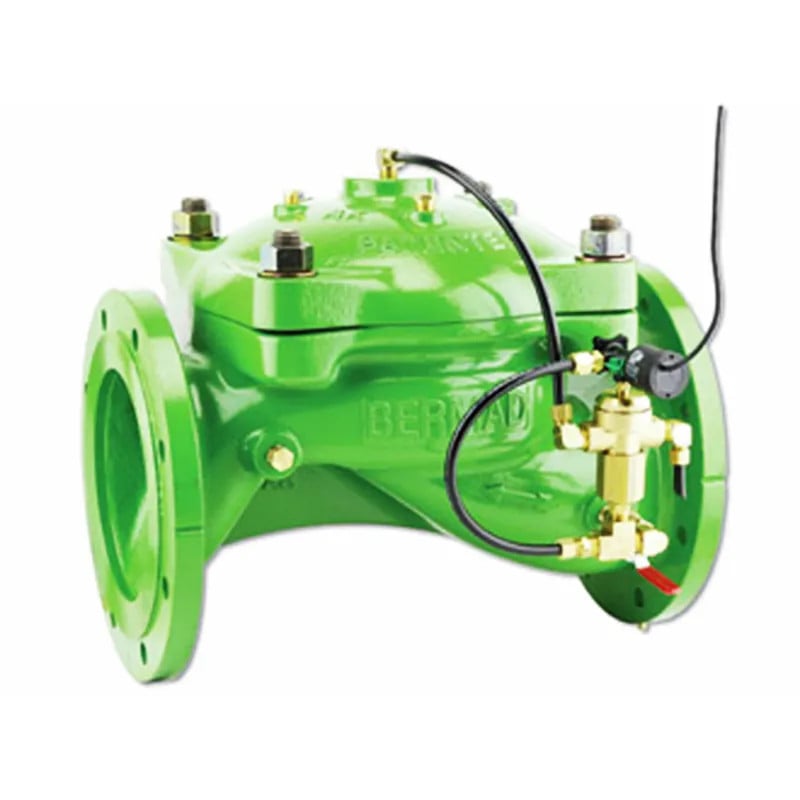

Bermad 410-X Irrigation Pivot & linear Solenoid Valves
The Bermad 410 series solenoid valve range is designed to switch pivot and linear irrigation machines on and off in controlled modes when the machine is turned on and off. The Bermad 400 series valve is compact easy to maintain and surge free in the application. Typical valve sizes for the application from 100 – 300mm in size, flanged connections
APPLICATION
- Computerized Irrigation Systems
- Remote and/or Elevated Systems
- Distribution Centers
- Irrigation Machines
- Low Supplied Pressure Irrigation Systems
FEATURES & BENEFITS
- Hydraulic Control Valve with Solenoid Control
- Line pressure driven
- Electrically controlled On/Off
- Suitable also for remote and/or elevated systems
- Advanced Globe Hydro-Efficient Design
- Unobstructed flow path
- Single moving part
- High flow capacity
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
- Progressively restrains Valve closing
- Prevents diaphragm distortion
- User-Friendly Design
- Simple in-line inspection
- Easy addition of control features
TECHINCAL DATA
OPERATION::
Line Pressure is applied to the Control Chamber, through the opened 3-Way Solenoid. This creates superior closing force that moves the Diaphragm Assembly toward a closed position. Closing the Solenoid causes it to discharge pressure from the Valve control chamber, thereby opening it. For 8”; DN200 valves and larger, a 3-Way Hydraulic Relay Valve quickens Valve response.
LITERATURE
 |
Bermad 410-X Irrigation Pivot & linear Solenoid Valves Brochure |
