PRODUCT INFORMATION

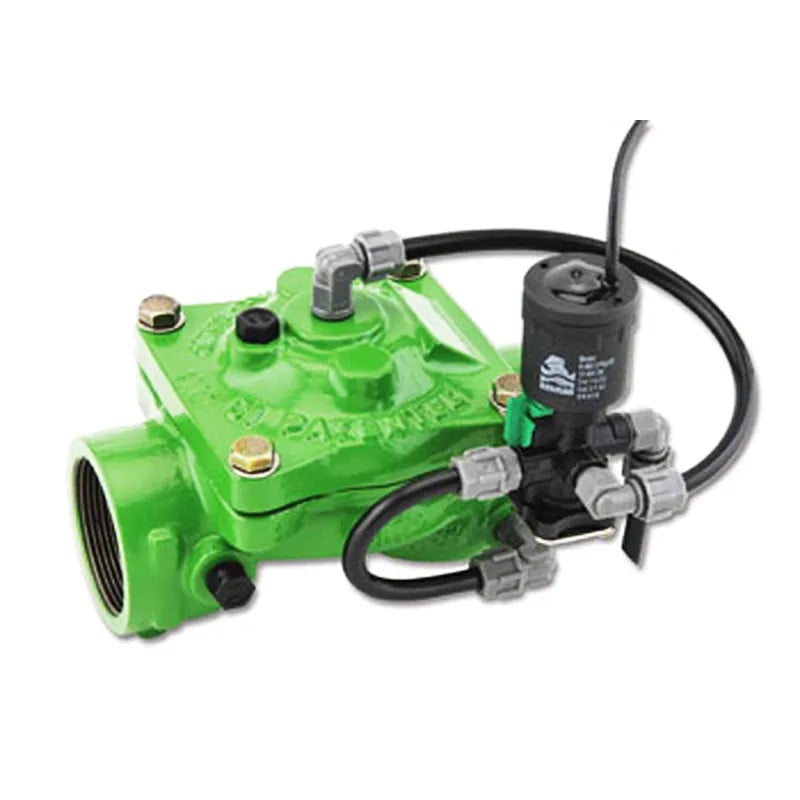

Irrigation IR-410-KX Solenoid control
The Bermad IR-410-KX is a pilot-operated solenoid valve, available in sizes from 40mm up to 100mm. The valve is electrically operated to open and close using irrigation solenoids in DC latching or non-standard 12/24 AC/DC solenoid coils. The valves can be configured as either normally open or normally closed.
APPLICATIONS
- Computerized Irrigation Systems
- Remote/Elevated Systems
- Distribution Centers
- Low Supplied Pressure Irrigation Systems
FEATURES & BENEFITS
- Hydraulically control Valve with Solenoid Control
- Line pressure driven
- Electrically controlled On/Off
- Suitable also for remote and/or elevated systems
- Advanced Globe Hydro-Efficient Design
- Unobstructed flow path
- Single moving part
- High flow capacity
- Fully Supported & Balanced Diaphragm
- Requires low opening and actuation pressure
- Progressively retains valve closing
- Prevents diaphragm distortion
- User-Friendly Design
- Simple in-line inspection
- Easy addition of control features
TECHNICAL DATA
OPERATION
Line Pressure is applied to the Control Chamber through the opened 3-Way Solenoid. This creates superior closing force that moves the Diaphragm Assembly toward a closed position. Closing the solenoid causes it to discharge pressure from the control chamber, thereby opening the valve.
