PRODUCT INFORMATION

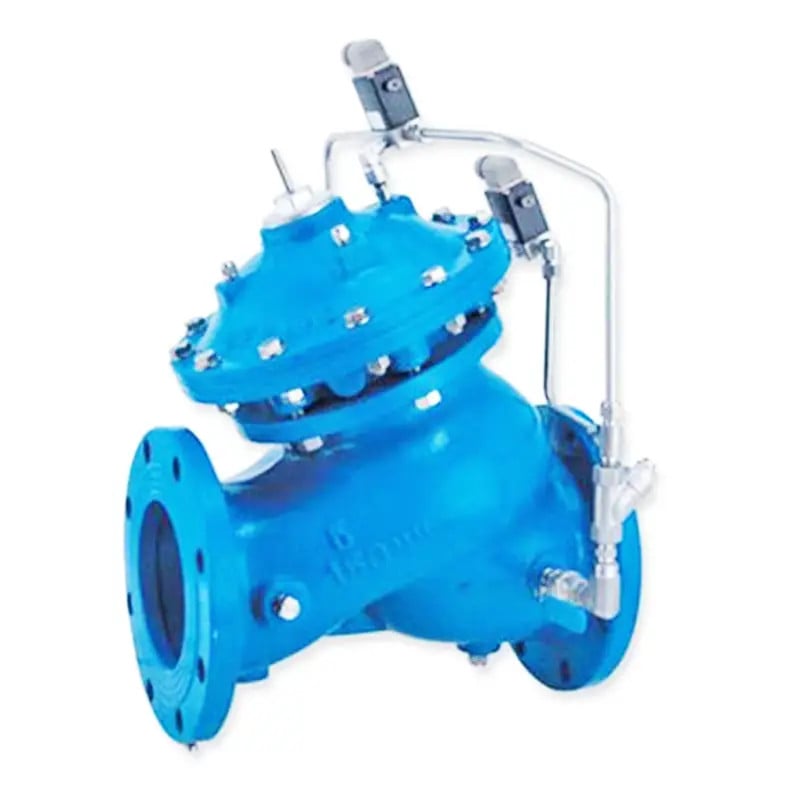

710-B – Powered Opening Solenoid Controlled Valve AS5081 / Watermark

The Model 710-B Powered Opening Solenoid Controlled Valve is a double chambered, hydraulically operated, diaphragm actuated control valve that either opens fully, regardless of valve differential pressure, or shuts off in response to electric signals.

• Zero pressure system control
• Net management optimizing
• Low pressure burst excess flow shut-off
• Reservoir distribution routing
• Filter drain-off prior to air scrubbing
• Gravity filter bed outlet control
• Sewerage "fill and flush" systems

FEATURES & BENEFITS

• Line pressure driven
  • Independent operation
  • No motor required
  • Long term drip tight sealing
• Solenoid Controlled
  • Low cost wiring
  • Wide ranges of pressures and voltages
  • Low power consumption
  • Normally Open, Normally Closed or last position

• In-line serviceable - Easy maintenance
• Double chamber
  • Non-slam opening and closing characteristics
  • Protected diaphragm
  • Full powered opening and closing
• Semi-straight flow - Smooth flow characteristics
• "Y" or angle, wide body - Minimized pressure loss
• Flexible design - Easy addition of of features
• Major Additional Features
  • Relief override - 710 - 3Q - B
  • Opening & closing speed control - 710 - 03 - B
  • Closing surge prevention - 710 - 49 - B
  • Flow over-the-seat (fail-safe close) - 710 - BO

TECHNICAL DATA

The Model 710 - B is a solenoid controlled valve equipped with a 3-way solenoid pilot and 3-way check valves. The normally open solenoid applies pressure to the upper chamber, harnessing valve differential pressure to power the diaphragm-actuator, closing the main valve. Energizing the solenoid vents control chamber pressure causing the main valve to open fully. The lower control chamber is open to atmosphere.

In cases where pipeline water is contaminated (corrosive, debris laden) external control fluid is often used. For 10" and larger valves, an accelerator quickens valve response. For 10" and larger valves, a single solenoid commands two accelerators & (replacing solenoids used for the smaller valves) to powerfully open and close the main valve.

LITERATURE

710-B – Powered Opening Solenoid Controlled Valve Brochure
