Bermad FP 400E-5D Hydraulically Controlled On-Off Deluge Valve

SKU:
FP-400E-5D

PRODUCT INFORMATION

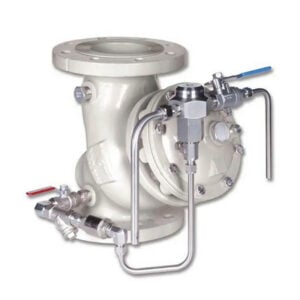

Bermad FP 400E-5D Hydraulically Controlled On-Off Deluge Valve

The Bermad Model FP 400E–5D is suitable for systems that include wet pilot lines with closed fusible plugs.

Providing boosted local opening, this model is recommended for systems with elevated fusible plugs. The valve is closed as long as the wet pilot line is pressurized. It opens in response to a hydraulic pressure drop in the wet pilot line.

FEATURES & BENEFITS

  • Local release HRV ־ Quick opening for long hydraulic remote control piping lines
    • Remote reset ־ Shut-off on remote command
    • One-piece molded elastomeric moving part –
  • No maintenance required
    • Simple design ־ Cost effective
    • Obstacle-free full bore ־ Uncompromising reliability
    • Factory pre-assembled trim ־ Out-of-box quality
    • In-line serviceable ־ Minimal down time

TECHINCAL DATA

The BERMAD Model FP 400E־5D is suitable for systems that include wet pilot lines with closed fusible plugs (thermal releases), and piping systems with a wide variety of open nozzles. The typical wet pilot line, is installed in the covered area and connected to the valve trim. Providing boosted local pressure release from its control chamber, the Model FP 400E־5D is recommended for systems with remote and/or elevated pilot line fusible plugs.
In the SET position line-pressure, which is supplied to both the main valve’s control chamber [1] and a Hydraulic Relay Valve (HRV-2) [2] by the priming line [3], through a Check Valve [4], an Accelerator [5] with priming restriction and the wet pilot line [6] restriction [7], is trapped by the Check Valve, by the closed HRV-2, by the closed wet pilot line and by a closed Manual Emergency Release [8]. The trapped pressure holds the main valve’s diaphragm and plug against the valve seat [9], sealing it drip-tight and keeping the system piping dry. The HRV-2 is held closed by the pressure in the wet pilot line. Under FIRE or TEST conditions, a pilot line hydraulic pressure drop opens the HRV-2 causing water to exit through the Accelerator faster than it can be supplied. Pressure is then released from the main valve’s control chamber through the opened HRV-2, or the Manual Emergency Release, allowing the main valve to fully open and water to flow into the system piping and to the alarm device (if mounted).

LITERATURE

Bermad FP 400E-5D Hydraulically Controlled On-Off Deluge Valve Bermad FP 400E-5D Hydraulically Controlled On-Off Deluge Valve Brochure
