PRODUCT INFORMATION

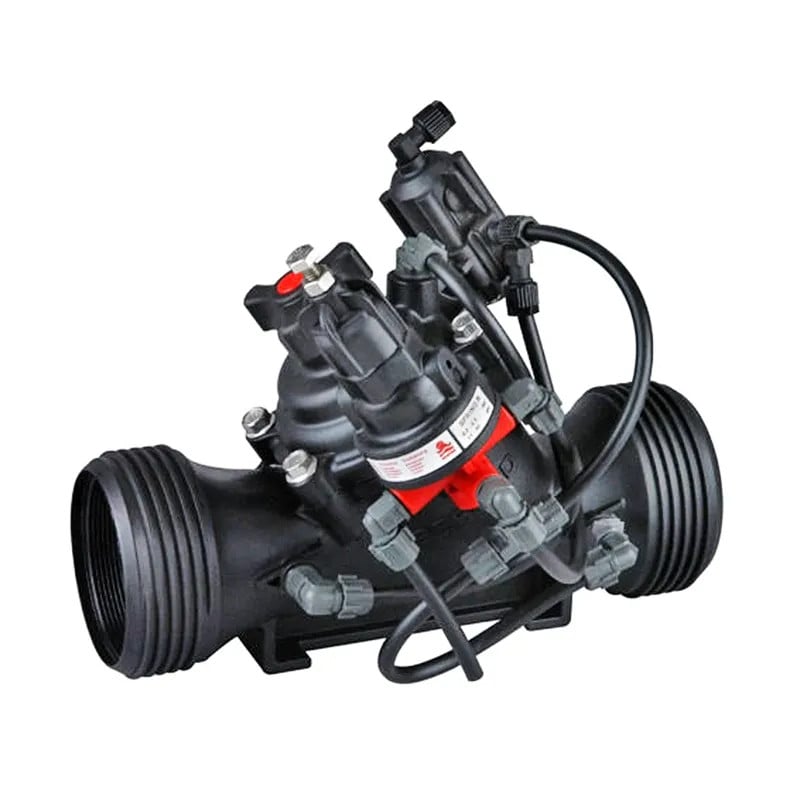

Pressure reducing valve with hydraulic relay IR-120-54-X
The Bermad 100 series pressure reduction valve is designed for irrigation headworks and is switched on and off locally, or remotely into the hydraulic relay. When the valve opens, the valve regulates the downstream pressure to a constant regardless of inlet pressure.
APPLICATIONS
- Computerized Irrigation Systems
- Pressure Reducing Stations
- Systems Subject to Varying Supply Pressure
- Remote and/or Elevated Plots
- Distribution Centers
- Energy Saving Irrigation Systems
FEATURES & BENEFITS
- Hydraulic Pressure Control, Normally Closed
- Closes upon control failure
- Protects downstream systems
- Opens fully upon line pressure drop
- Amplifies and relays weak remote command
- Engineered Plastic Valve with Industrial Grade Design
- Highly durable, chemical and cavitation resistant
- No internal bolts and nuts
- hYflow ‘Y’ Valve Body with “Look Through” Design
- Ultra-high flow capacity – Low pressure loss
- Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug
- Accurate and stable regulation with smooth closing
- Requires low opening and actuation pressure
- Prevents diaphragm erosion and distortion
- Simple In-Line Inspection and Service
TECHNICAL DATA
OPERATION
The BERMAD Normally Closed, Pressure Reducing Valve with Hydraulic Control, is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand, and opens fully upon line pressure drop. It is a Normally Closed valve, which opens in response to a remote pressure command and shuts in the absence of that command.
LITERATURE
 |
PRESSURE-REDUCING-VALVE-WITH-HYDRAULIC-RELAY-IR-120-54-X Brochure |
