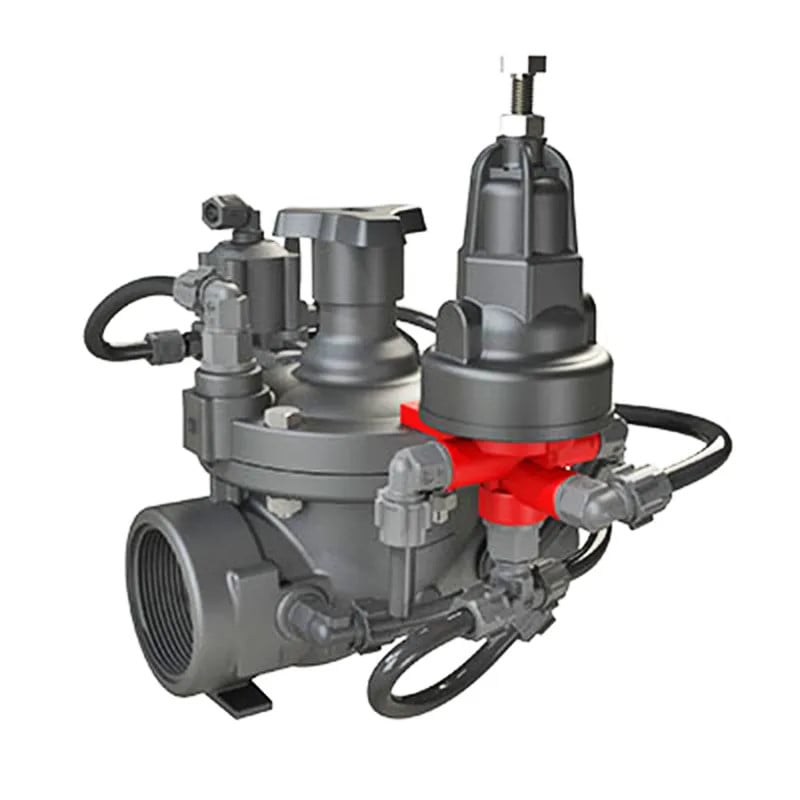

Pressure Reducing Valve with Hydraulic Relay IR-220-54-3W-X
The BERMAD Normally Closed, Pressure Reducing Valve with Hydraulic Control, is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand, and opens fully upon line pressure drop. It is a Normally Closed valve, which opens in response to a remote pressure command and shuts in the absence of that command.
APPLICATIONS
- Computerized Irrigation Systems
- Drip Systems
- ֺ Pressure Reducing Stations
- Systems Subject to Varying Supply Pressure
- Energy Saving Irrigation Systems
FEATURES & BENEFITS
- Line Pressure Driven, Hydraulically Controlled
- Energy Saving Irrigation Systems
- Closes upon control failure
- ֺ Protects downstream systems
- Amplifies and relays weak remote command
- Opens fully upon line pressure drop
- Plastic Globe Hydro-Efficient Valve
- Unobstructed flow path
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low flow regulation performance
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
- User-Friendly Design
- Simple in-line inspection and service
TECHNICAL DATA
The 3-Way Hydraulic Relay Valve (3W-HRV) hydraulically connects the Pressure Reducing Pilot (PRP) to the Valve Control Chamber . The PRP commands the Valve to throttle closed should Downstream Pressure rise above pilot setting and to open fully when it drops below pilot setting. The 3W-HRV switches upon pressure drop command, directing line pressure into the control chamber, and thereby causing the main Valve to shut. The 3W-HRV also features local manual closing.
LITERATURE
 |
Pressure Reducing Valve with Hydraulic Relay IR-220-54-3W-X Brochure |
