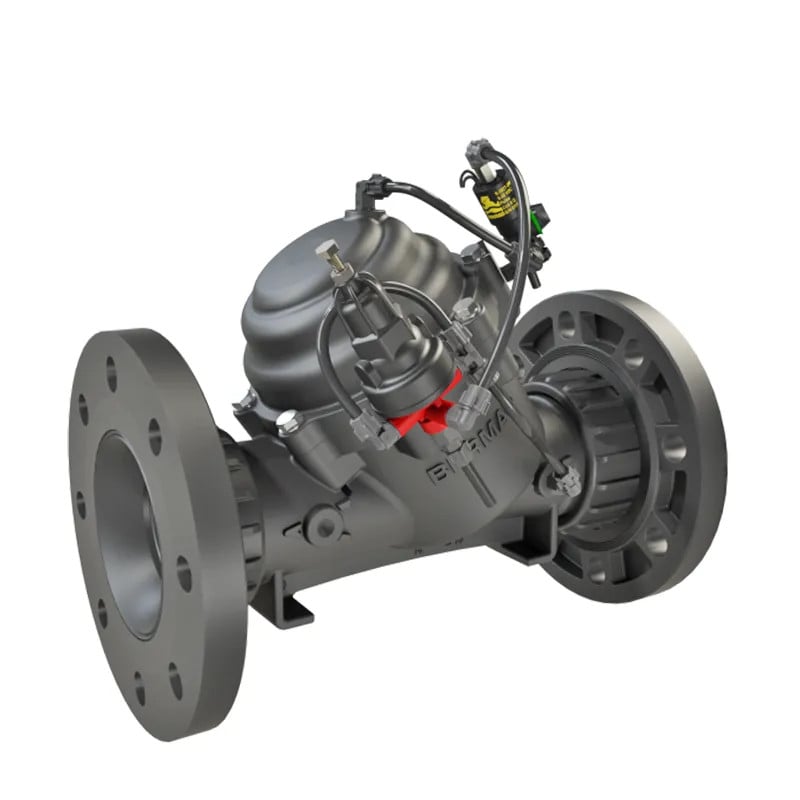

Bermad IR-130-59-3W-X Pressure Sustaining valve



Bermad IR-130-59-3W-X Pressure Sustaining valve (for filters)

The BERMAD Model IR-130-59 Is a hydraulically operated, diaphragm actuated control valve designed to maintain proper backwash pressure in filtration systems.

During normal irrigation the valve is wide open creating minimal pressure head loss and conserving pumping energy.

In response to an electric signal, supplied simultaneously to system flushing command, the IR-130-59 modulates closed, sustaining minimum preset upstream (back) pressure to filters manufacturer


  • Disc or Media Filter station flush assist ֺ
  • Remote and/or Elevated Plots
  • Pressure Zone Prioritizing
  • Line Emptying Prevention
  • Low Supplied Pressure Irrigation Systems ֺ
  • Large Surface Area Reservoirs
  • Low Volume Reservoirs


  • Hydraulic Valve with Solenoid Control
    • Short response time
    • Maintains low energy system during irrigation
    • Sustains filter station proper backwash pressure
    • Sustains upstream line pressure, controlling system fill up
  • ֺ Engineered Plastic Valve with Industrial Grade Design
    • Adaptable on-site to a wide range of end connection sizes and types
    • Highly durable, chemical & cavitation resistant
  • ֺ hYflow ‘Y’ Valve Body with “Look Through” Design
    • Ultra-high flow capacity at Low pressure loss
  • ֺ Unitized Flexible Super Travel Diaphragm with a Guided Plug
    • Accurate and stable regulation with smooth closing
    • Requires low actuation pressure
    • Prevents diaphragm erosion and distortion
    • Simple In-Line Inspection and Service



The de-energized Solenoid drains the main valve control chamber, causing the main Valve to open wide, energizing the solenoid activates the Pressure Sustaining Pilot, which commands the Valve to throttle should Upstream Pressure drop below pilot setting, and to modulate open when rises above it.


Bermad IR-130-59-3W-X Pressure Sustaining valve Bermad IR-130-59-3W-X Pressure Sustaining valve (for filters) Brochure
