PRODUCT INFORMATION

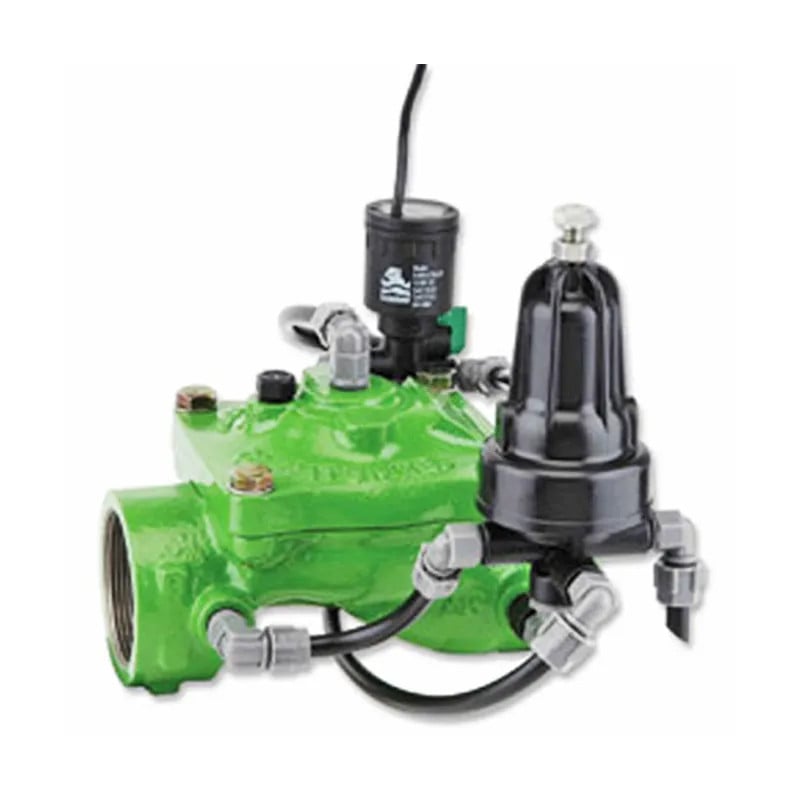

Pressure Reducing Valve with Solenoid IR-420-55-KXZ
The Bermad Pressure Reducing Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve.
It reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand, and opens fully upon line pressure drop. This valve either opens or shuts in response to an electric signal.
APPLICATIONS
- Computerized Irrigation
- Pressure Reducing Stations
- Systems Subject to Varying Supply Pressure
- Remote and/or Elevated Plots
- Distribution Centers
FEATURES & BENEFITS
- Hydraulic Pressure Control with Solenoid Control
- Line pressure driven
- Protects downstream systems
- Opens fully upon line pressure drop
- Electrically controlled On/Off
- Advanced Globe Hydro-Efficient Design
- Unobstructed flow path
- Single moving part
- High flow capacity
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
- Excellent low flow regulation performance
- Progressively restrains valve closing
- Prevents diaphragm distortion
- User-Friendly Design
- Easy pressure setting
- Simple in-line inspection and service
TECHNICAL DATA
OPERATION
The Shuttle Valve hydraulically connects the Solenoid or the Pressure Reducing Pilot (PRP) to the Valve Control
Chamber. When the solenoid is closed, the PRP
commands the Valve to throttle closed should Downstream
Pressure rise above setting, and to open fully when it
drops below setting. In response to an electric signal, the
solenoid switches, directing line pressure through the shuttle
valve into the control chamber. This causes the Valve to shut.
The solenoid also features local manual closing.
