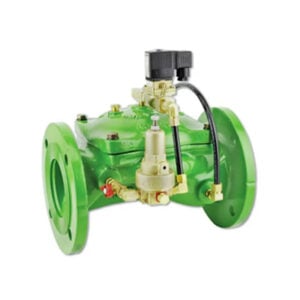

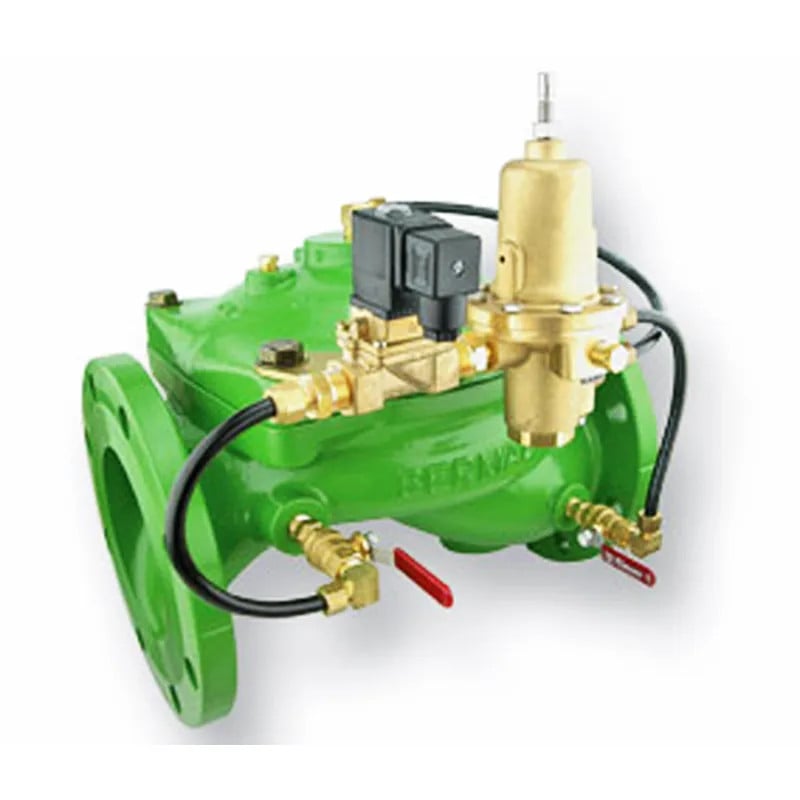

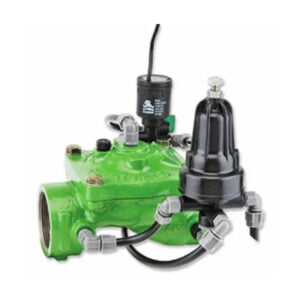

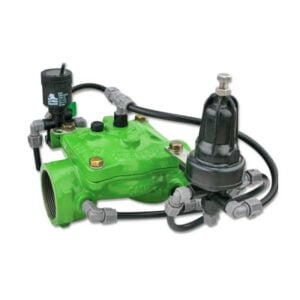

Pressure Reducing Valve with Solenoid IR-420-55
The Bermad Model IR-420-55 Pressure Reducing Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve. It reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. The Bermad Model IR-420-55 opens and shuts in response to an electric signal.
APPLICATIONS
- Pressure Reducing Stations
- Flow and Leakage Reduction
- Cavitation Damage Protection
- Source and “On Duty” Valves Management
- Pressure Zone Isolation
- Downhill Supply Lines
- System Maintenance Savings
FEATURES & BENEFITS
- Line Pressure Driven PRV,
- Electrically Controlled On/Off
- Protects downstream systems
- Wide range of pressures and voltages
- Normally Open, Normally Closed or Last Position
- Advanced Globe Hydro-Efficient Design
- Unobstructed flow path
- Single moving part
- High flow capacity
- Fully Supported & Balanced Diaphragm
- Requires low opening and actuation pressure
- Excellent low flow regulation performance
- Progressively restrains valve closing
- Prevents diaphragm distortion
- User Friendly Design
- Easy pressure setting
- Simple in-line inspection and service
TECHNICAL DATA
OPERATION
The Needle Valve continuously allows line pressure into the Control Chamber. The Pressure Reducing Pilot senses Downstream Pressure, and throttles when it rises above setting. Pressure then accumulates in the control chamber causing the Valve to throttle closed, decreasing to pilot setting. The pilot releases accumulated pressure when falls below setting, thereby causing the Valve to modulate open. Closing the Solenoid causes pressure in the control chamber to accumulate shutting off the Valve.
