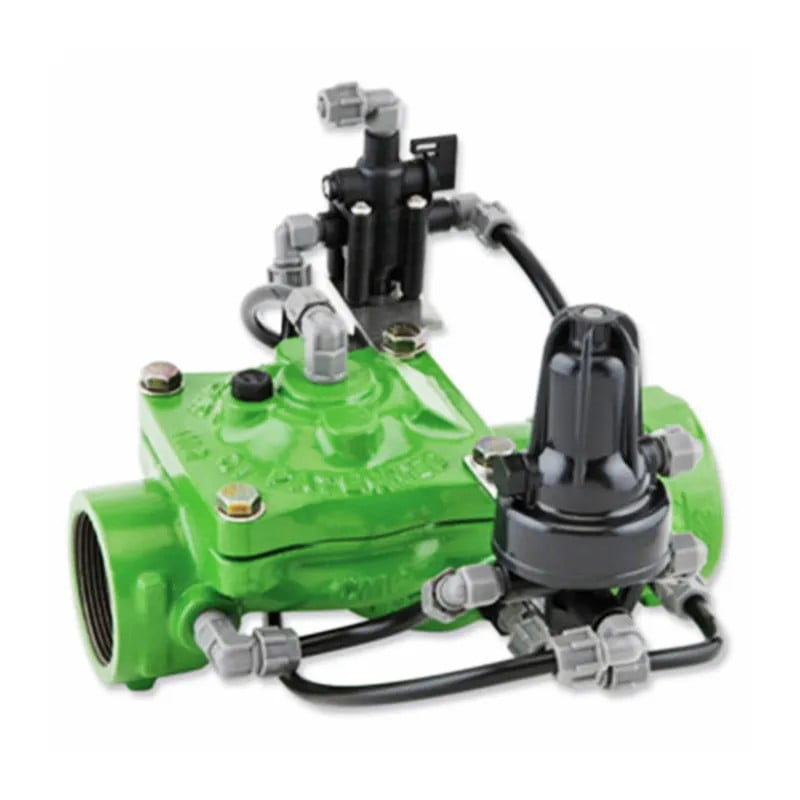

Bermad IR-470-54-bKU Flow Control Valve



Bermad IR-470-54-bKU Flow Control Valve

The Bermad Normally Closed, Flow Control Valve with Hydraulic Control is a hydraulically operated, diaphragm actuated control valve that limits system demand to a constant preset maximum flow rate.

It is a Normally Closed valve, which opens in response to a remote pressure rise command and shuts in the absence of that command.


  • Computerized Irrigation Systems
  • Line Fill-Up Control Solutions
  • Multiple Independent Consumer Systems
  • Systems Subject to Varying Supply Pressure
  • Remote and/or Elevated Plots
  • Distribution Centers


  • Hydraulic Pressure Control, Normally Closed
    • Closes upon control failure
    • Limits fill-up rate and consumer over-demand
    • Amplifies and relays weak remote command
  • Advanced Globe Hydro-Efficient Design
    • Unobstructed flow path
    • Single moving part
    • High flow capacity
  • Fully Supported & Balanced Diaphragm
    • Requires low opening and actuation pressure
    • Excellent low flow regulation performance
    • Progressively restrains valve closing
    • Prevents diaphragm distortion
  • Hydraulic Flow Sensor (upstream installation)
    • No moving parts
    • No need for flow straightening
  • Simple In-Line Inspection and Service


The 3-Way Hydraulic Relay Valve (3W-HRV) hydraulically connects the Flow Pilot to the Valve Control Chamber. Pressure Differential across the Orifice Assembly is in direct proportion to demand. The FP continuously senses and commands the Valve to throttle closed should demand rise above pilot setting. The 3W-HRV switches upon pressure drop command, directing line pressure into the control chamber, and thereby causing the main Valve to shut. The 3W-HRV also features local

Manual closing.
