PRODUCT INFORMATION

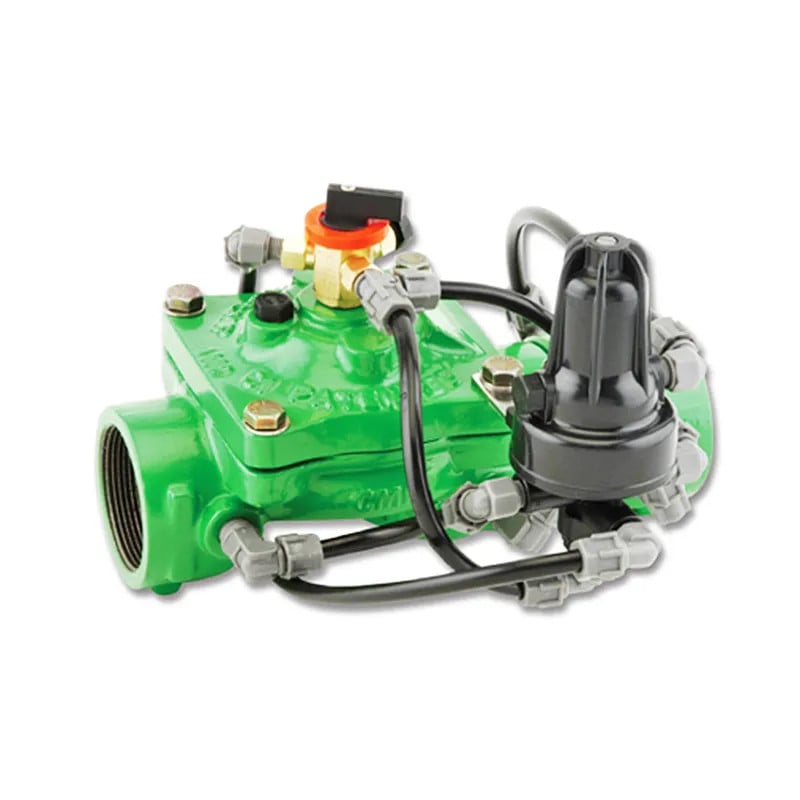

Bermad IR-470-bKUZ Flow Control Valve

The Bermad Flow Control Valve is a hydraulically operated, diaphragm actuated control valve that limits system demand to a constant preset maximum flow rate.

APPLICATIONS

• Multiple Independent Consumer Systems
• Line Fill-Up Control Solutions
• Systems Subject to Varying Supply Pressure

FEATURES & BENEFITS

• Line Pressure Driven, Hydraulically Controlled
  • Limits fill-up rate and consumer over-demand
• Advanced Globe Hydro-Efficient Design
  • Unobstructed flow path
  • Single moving part
  • High flow capacity
• Fully Supported & Balanced Diaphragm
  • Requires low opening and actuation pressure
  • Excellent low flow regulation performance
  • Progressively restrains valve closing
  • Prevents diaphragm distortion
• Hydraulic Flow Sensor (upstream installation)
  • No moving parts
  • No need for flow straightening
• User-Friendly Design
  • Easy pressure setting
  • Simple in-line inspection and service
  • Easy addition of control features

TECHINCAL DATA

Pressure Differential across the Orifice Assembly is in direct proportion to demand. The Flow Pilot continuously senses and commands the Valve to throttle closed should demand rise above pilot setting and to modulate open when demand drops below setting. The Manual Selector enables local manual closing

LITERATURE

Bermad IR-470-bKUZ Flow Control Valve Brochure
