Bermad PRV Series Direct Acting Pressure Regulators

SKU:
PRV-SERIES-REGULATORS

PRODUCT INFORMATION

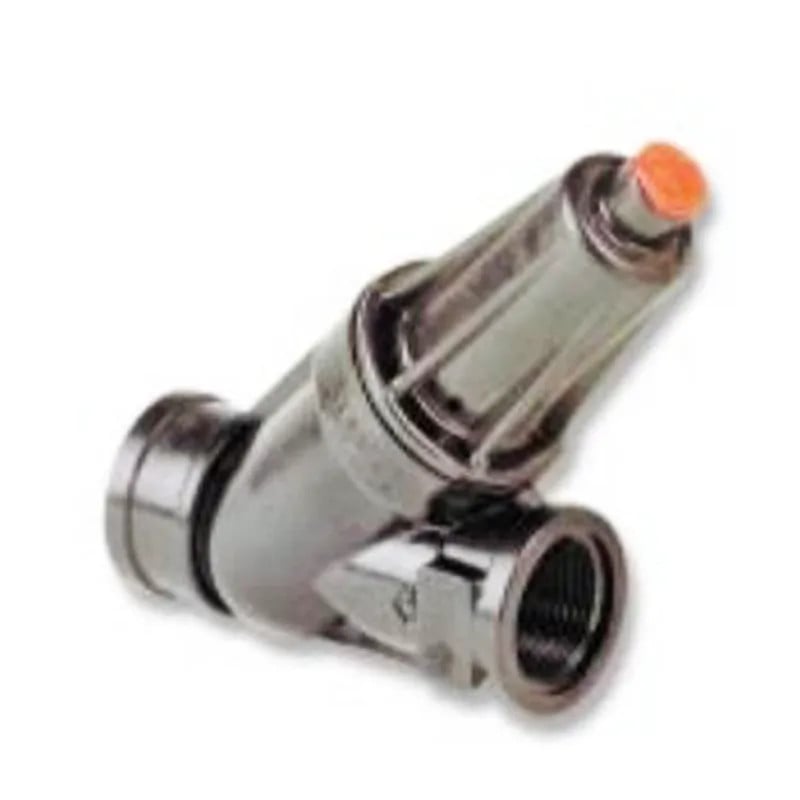

PRV Series Direct Acting Pressure Regulators

The PRV Series, plastic, Direct Acting Pressure Reducing Valve is expressly designed for line pressure applications that demand accurate and reliable control, regardless of fluctuations in supply pressure or flow rate.

APPLICATIONS

  • Distribution Line Lateral Risers
  • Non-Compensating Drip-Line Flow Fixation
  • Lateral Final Burst Protection
  • Pressure Reduction for Marginal Plots
  • Irrigation Machine Sprinkler Flow Control (3/4"-PRV)
  • Single Sprinkler Flow Fixation (3/4"-PRV)

FEATURES & BENEFITS

  • Advanced Construction Materials
    • High mechanical strength
    • Proven pressure, flow and weather resistance
  • Adjustable Direct Acting Pressure Reducer
    • Constant downstream pressure
    • Immediate response
    • Settable according to season and stage
  • Plastic Body and Trim
    • Highly durable, chemical and cavitation resistant
    • Minimizes friction
  • Unitized Rolling Diaphragm and Guided Plug
    • Accurate and stable regulation
    • Prevents diaphragm distortion
  • User-Friendly Design
    • Can be installed at any orientation
    • Simple in-line inspection and service

TECHNICAL DATA

OPERATION

The Upstream Pressure applies balanced opening and closing hydraulic forces under the Diaphragm and above the Plug . The Downstream Pressure applies hydraulic closing force under the plug, which seeks to reach equilibrium with the Set Spring force. Should rise above setting, the hydraulic closing forces rise above the mechanical force of the spring, pushing the plug to modulate closed, and reducing P2 back to setting

LITERATURE

 PRV Series Direct Acting Pressure Regulators PRV Series Direct Acting Pressure Regulators Brochure
