PRODUCT INFORMATION

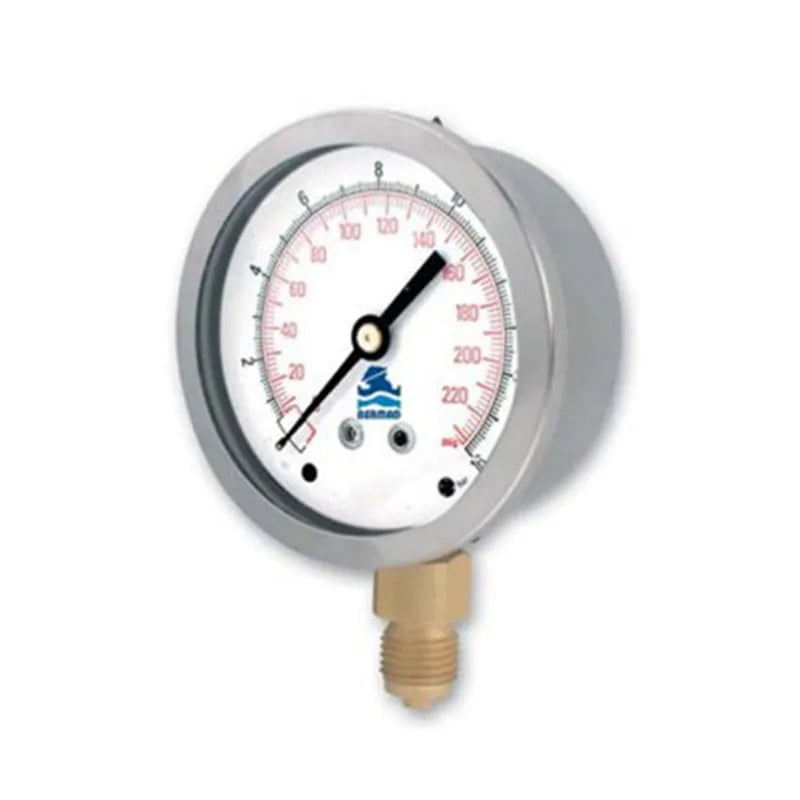

Bermad Pressure Gauge

This robust, liquid filled Pressure Gauge is used for heavy duty service where vibration or pulsation of the pressure might cause excessive wear of a dry gauge, or where corrosive ambient conditions or fluid prevail.

TECHNICAL DATA

• Dial size: 21/2” (63 mm)
• Connection: 1/4” NPT, back or bottom Scales:
• 0-6, 10, 16, 25 and 40 bar
• 0-90, 140, 230, 350 and 600 psi Accuracy: ± 1.6% of full scale dial Maximum temperature: 60 ̊C (140 ̊F) Standard materials:
• Case: Stainless Steel 304
• Window: Extruded acrylic sheet
• Seal: Neoprene
• Dampening fluid: Glycerin
• Socket: Brass
• Bourdon tube: Bronze
• Dial & pointer: Aluminun

LITERATURE

Bermad Pressure Gauge Brochure
