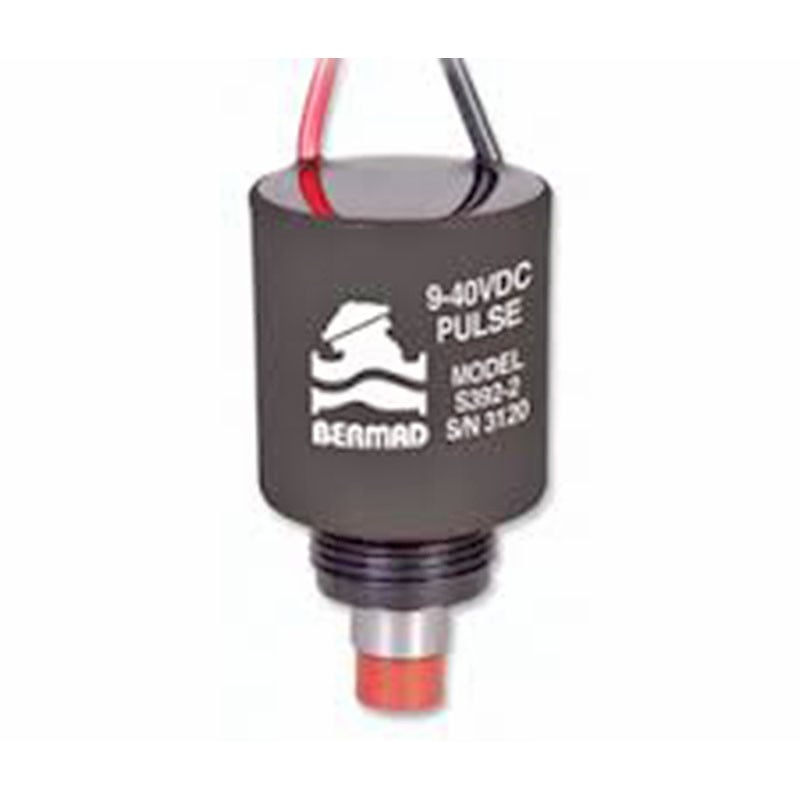

Bermad S392 Irrigation Solenoid Coil 2 Way DC Latch

SKU:
S392

PRODUCT INFORMATION

Irrigation S392 Solenoid Coil 2 Way DC Latch

The BERMAD Model S-392-2W is a compact 2-Way Latching Solenoid Actuator, specially designed for reliable long life service in irrigation systems controlled by Battery Operated Controllers. The BERMAD latching Solenoid Actuator is applicable directly to the valve cover or with a 2 Way base that enables combining it in variety of 2-way control circuits. Model S-392-2W consumes power only when switching positions, using a very short electric impulse. This prolongs life of batteries and enables solar recharging.

APPLICATIONS:

  • Systems distanced from control center
  • Unavailable power supply locations
  • Solenoid controlled on/off valves
  • Solenoid controlled pressure and flow control valves
  • Multiple valve systems

FEATURES & BENEFITS

  • Advanced Construction Materials, Unique Plastic Casing
    • Advanced Construction Materials, Unique Plastic Casing
    • Highly durable in corrosive environments
    • Protection Class- IP68; NEMA Type 6D
  • Superb Internal Design and Finish
    • Reliable operation under dirt loaded water
  • Short Electrical Impulse Latch Activation
    • Extremely low power consumption
    • Low voltage battery operation
    • Saves wires and infrastructures
    • No coil heating
    • Suites most Battery Operated Controllers on the market
    • Applicable in solar activated systems
  • Simple Installation, Operation and Maintenance
  • Reliable and Durable Product that Bears the Stamp of BERMAD Quality

TECHNICAL DATA

Solenoid to Base Connection: 3 /4”; 20 UNEF Male Threaded

Base Ports: 1 /8” NPT

Leads: 2 leads x 0.32 mm2 x 80 cm

Operating Pressure Range: 0-10 bar

Base Orifice: 1.8 mm

Base Flow Factor: Kv = 0.08 m3/h @ 1 bar ΔP; Cv=0.09 GPM @1 psi ΔP
