Bermad WW718-03-B Sigma EN ES Electronic Control Valve

SKU:
WW718-03-B

PRODUCT INFORMATION

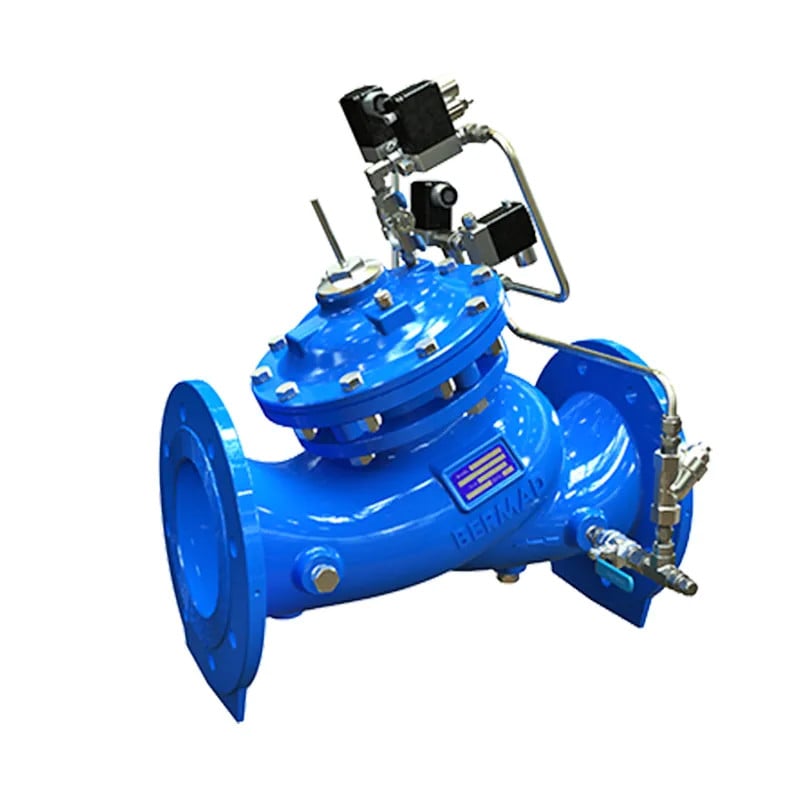

Bermad WW718-03-B Sigma EN ES Electronic Control Valve

The Bermad 718-03-B is an electronic control valve that combines the advantages of an excellent modulating, line pressure driven, hydraulic control valve with those of electronic control. In response to signals from the electronic controller (or PLC), the valve changes its opening position per preset values programmed into the controller.The valve is double chamber actuated and is powered to fully open and close even at very low pressure. Both the valve’s opening and closing speeds are controllable and on-site adjustable. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.

FEATURES & BENEFITS

  • Designed to - stand up to the toughest conditions
    • Excellent anti-cavitation properties
    • Wide flow range
    • High stability and accuracy
    • Drip tight sealing
  • ֺ Double chamber design
    • Moderated valve reaction
    • Protected diaphragm
    • Optional operation in very low pressure
    • Moderated closing curve
  • ֺ Flexible design - Easy addition of features
  • ֺ Obstacle free flow pass
  • ֺ V-Port Throttling Plug (Optional) - Very stable at low flow
  • ֺ Compatible with various standards
  • ֺ High quality materials
  • ֺ In-line serviceable - Easy maintenance

TECHNICAL DATA

  • Valve position transmitter – 718-03-Q
  • Relief override – 718-03-3Q
  • Flow over the seat (fail-safe close) – 718-03-O
  • Downstream over pressure guard – 718-03-48
  •

LITERATURE

Bermad WW718-03-B Sigma EN ES Electronic Control Valve Bermad WW718-03-B Sigma EN ES Electronic Control Valve Brochure
