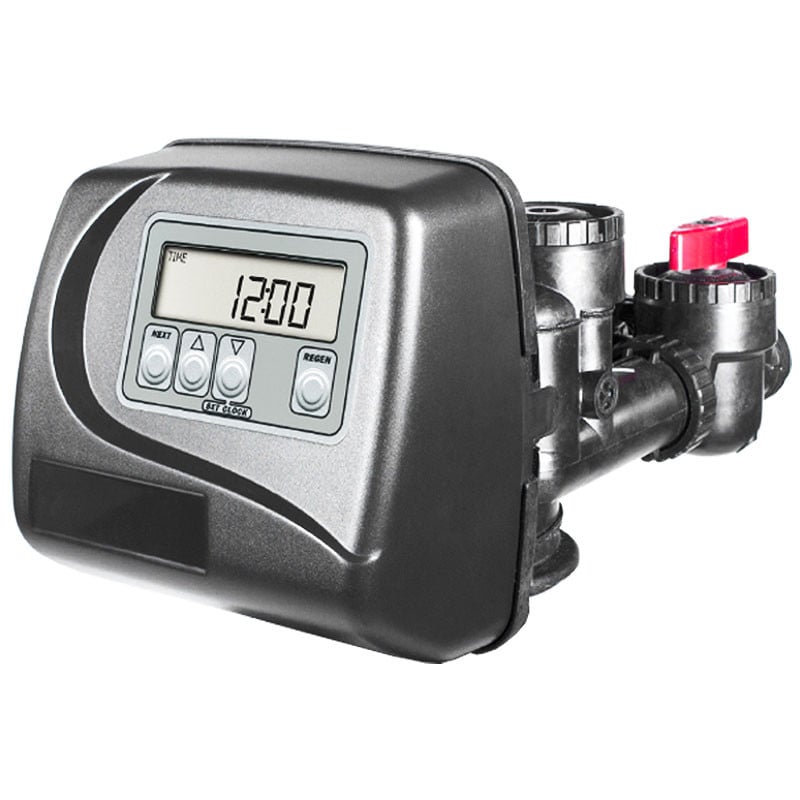

Clack WS1EI Specialist Water Control Valve 1" Inlet/Outlet
FEATURES & BENEFITS
- Solid state microprocessor with easy access front panel settings
- Front panel display for time of day, days until next regeneration, volume remaining, current flow rate and total volume used (Totalizer)
- Four methods to initiate regeneration; meter immediate, meter delayed time clock delayed or pressure differential
- Optional double backwash feature offers optimum regeneration, cleaning ability and efficiency
- Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow brining/slow rinse, second backwash, fast rinse, refill and downflow service
- Coin Cell Lithium battery back-up with an 8 hour carry over
- Backwash and brining ability to 21” diameter tanks
- Downflow or upflow brining regeneration
- Level VI 15-volt output DC power supply provides safe and easy installation
- Control valve design provides optimum service and backwash rates
- Post treated water regenerant refill
- Reliable and proven DC drive
- One piece expanding seal spacer stack assembly
- Linearly reciprocating piston operation
- Mixing valve option available
TECHNICAL DATA
Water Specialist 1” EI Control Specifications
| Inlet/Outlet Fittings |
¾" to 1.5” NPS |
| Cycles |
up to 6 |
| Valve Material |
Fiber Reinforced Composite |
| Regeneration |
downflow |
FLOW RATE
| Service @ 1 bar/15 psi drop (includes meter) |
102 lpm (6.12 m3 /h) (27 gpm) |
| Backwash @ 1.7/25 psi bar drop |
. 102 lpm (6.12 m3 /h) (27 gpm) |
OPERATING PRESSURES
| Minimum/Maximum |
20 - 125 psi (1.4 - 8.6 bar) |
OPERATING TEMPERATURES
| Minimum/Maximum |
40º - 110º F (4º - 43ºC) |
METER
| Accuracy |
± 5% |
| Flow Rate Range |
0.95 - 102 lpm |
| Volume Range |
0.02 - 5,700 m3 |
| Totalizer |
0.001 - 9,999,000 m3 |
DIMENSIONS & WEIGHT
| Distributor Pilot |
1.050" OD Pipe (¾" NPS) |
| Drain Line |
¾” or 1” NPT |
| Brine Line |
. 3 /8” or ½” OD Poly Tube |
| Mounting Base |
2 ½” - 8 NPSM |
| Height From Top Of Tank | 7 3 /8” (187 mm) |
| Weight |
. 4.5 lbs. (2 kg) |
ELECTRICAL SPECIFICATIONS
| Supply Voltage |
200VAC to 240VAC |
| Supply Frequency |
50/60 Hz |
| Output Voltage |
15VDC |
| Output Current |
500 mA |
TANK APPLICATIONS
| Water Softener |
. 6” - 21” Diameter |
| Water Filter (2) |
6” - 21” Diameter |
CYCLES OF OPERATION (SOFTENER / FILTER downflow)
| 1. Backwash 1st |
1-95 |
| 2.Regenerate Draw/Slow Rinse (downflow) |
1-180 |
| 3.Backwash 2nd (upflow) |
1-95. |
| 4.Fast Rinse (downflow) |
1-95 |
| 5.Regenerant Refill | 0.1-99.0 |
| 6.Service (downflow) |
LITERATURE
 |
Clack WS1EI Specialist Water Control Valve 1" Inlet/Outlet Brochure |
