DAB 102NXT Cast Iron Spear Point Jet Pump with nXt Pump Controller

SKU:
DAB-102NXT

PRODUCT INFORMATION

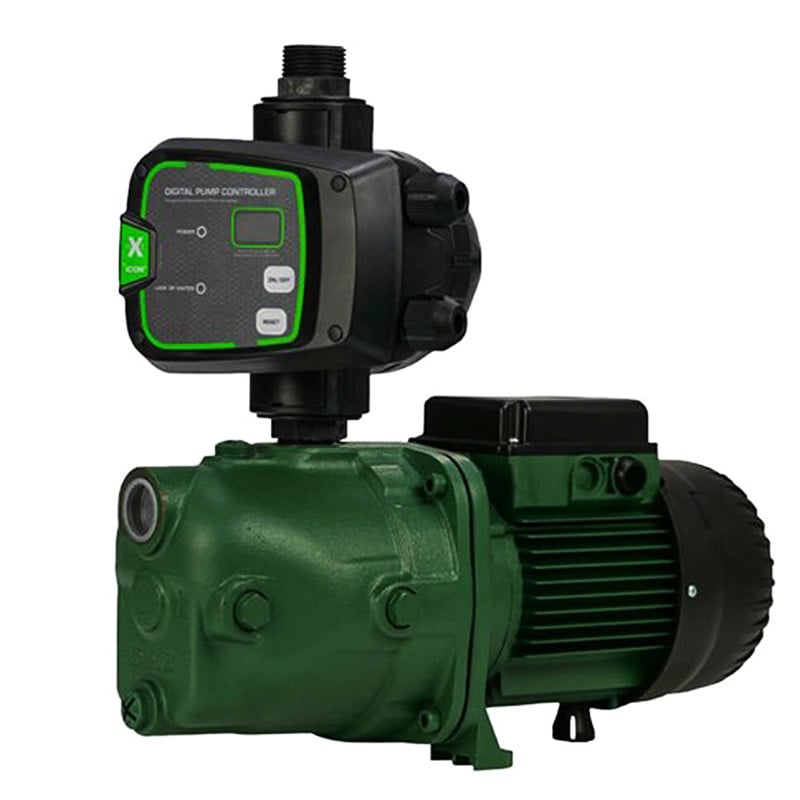

DAB 102NXT Cast Iron Self Priming Jet Pump with nXt Pump Controller

DAB Surface Mounted - Jet Pump

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

FEATURES & BENEFITS

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F

Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
- Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- Special executions on request: other voltages and/or frequencies

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection

TECHNICAL DATA

Brand
DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
5.3
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
60
Approval
Drinking Water Approval
Hp
1
kPa
527
Head Range Category b. 40 - 59 m
Max Head (m)
53.8
Port Size Inlet 1" BSPF inlet
Port Size Outlet
1" BSPM outlet
Powered
electric
Taps
6
Warranty (months) 24
Volts
240
Watts
750



nXt Controller Data

Function
ON/OFF
Modes
1
Size
1.5Kw
Rated Voltage
220-240V AC
Max Amps 10
Rated Power
1500w
Rating
IP65
Union Size
1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure
on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump
Plug and Play
Flylead for Pump
When sold as control only
Power Cable
10AMP
Communication
-
Accessories (Sold Separately)
1 ¼” Union Kit



LITERATURE

DAB 102NXT Cast Iron Self Priming Jet Pump with nXt Pump Controller DAB 102NXT Cast Iron Self Priming Jet Pump with nXt Pump Controller Brochure
