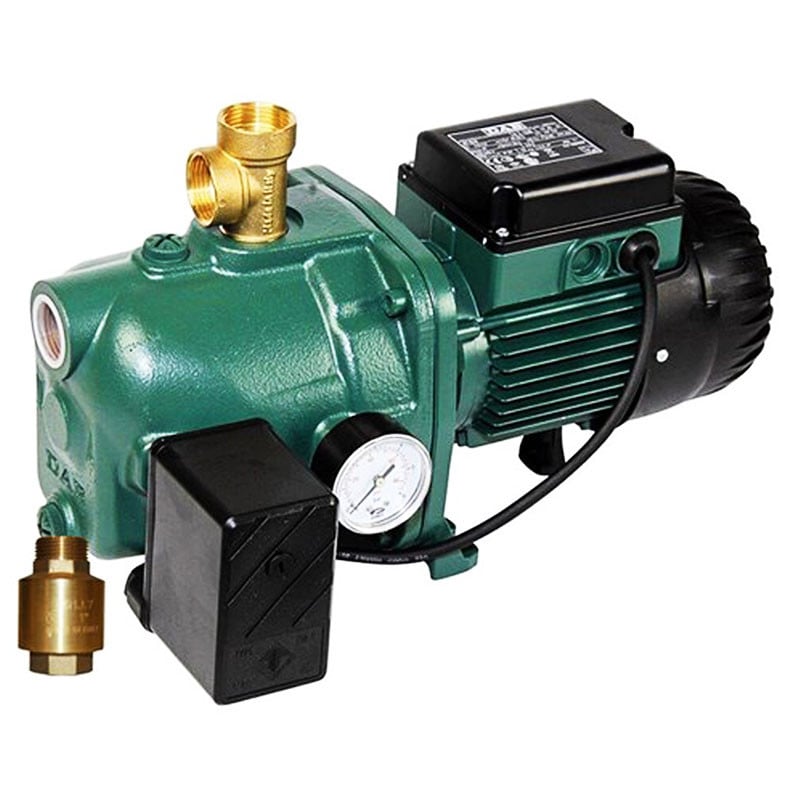

DAB 132MP Cast Iron Spear Point Jet Pump with Pressure Switch



DAB 132MP Cast Iron Self Priming Jet Pump with Pressure Switch

84 1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m, 8 taps Ports 1” BSPF In, 1” BSPF Out. Includes NRV.


Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F

Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
- Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- Special executions on request: other voltages and/or frequencies

Self Priming Cast Iron Jet Pressure Pump

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.


DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
4.8 Bar
Flow Range Category
a. 0 - 99 L/min
Approved For Drinking Water
486 kPa
Kilo Watts
1 kW
Head Range Category b. 40 - 59 m
Max Head (m)
48 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet
1" BSPF outlet
8 Taps
Warranty (months) 24 Months
240 V
1000 W
