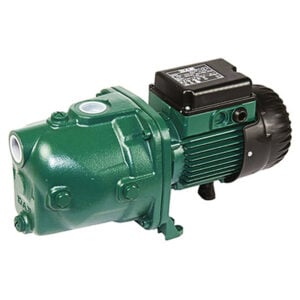

DAB 82MP Cast Iron Self Priming Spear Point Pump With Pressure Switch

SKU:
DAB-82MP

PRODUCT INFORMATION

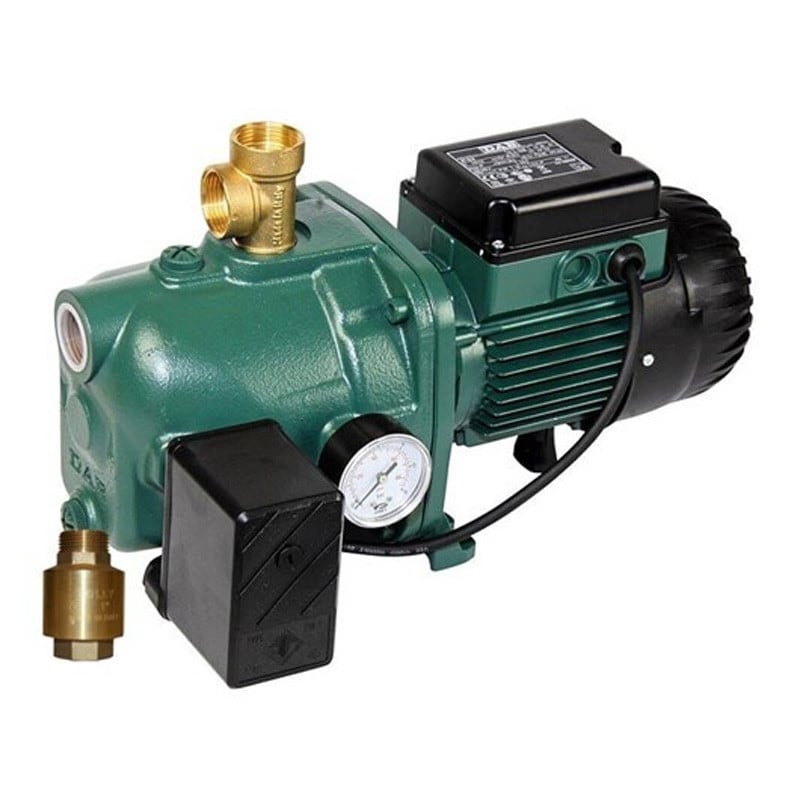

DAB 82MP Cast Iron Spear Point Pump With Pressure Switch

APPLICATIONS

  • Domestic installations where a suction lift is required
  • Pressure boosting, irrigation and wash down
  • Designed for pumping from tanks, rivers and dams.

FEATURES & BENEFITS

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.

Rotor mounted on oversized greased sealed-for-life ball bearings.

Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.

For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.

Manufactured according to CEI 61-69 standards (EN 60335-2-41).

Motor protection: IP 44

Terminal box protection: IP 55

Insulation class: F

Operating range: up to 4.3 m3/h.

  • Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
  • Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41) from 0°C to +40°C for other us
  • Maximum ambient temperature: +40°C
  • Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
  • Installation: fixed in a horizontal position
  • Special executions on request: other voltages and/or frequencies

TECHNICAL DATA

Brand
DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
4.7 Bar
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
60 L/min
Approval
Approved For Drinking Water
Hp
0.8 Hp
kPa
476 kPa
Kilo Watts
0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m)
47 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet
1" BSPF outlet
Powered
Electric
Warranty (months) 24 Months
Volts
240 V
Watts
600 W

DRAWINGS

LITERATURE

DAB 82MP Cast Iron Spear Point Pump With Pressure Switch Brochure
