PRODUCT INFORMATION

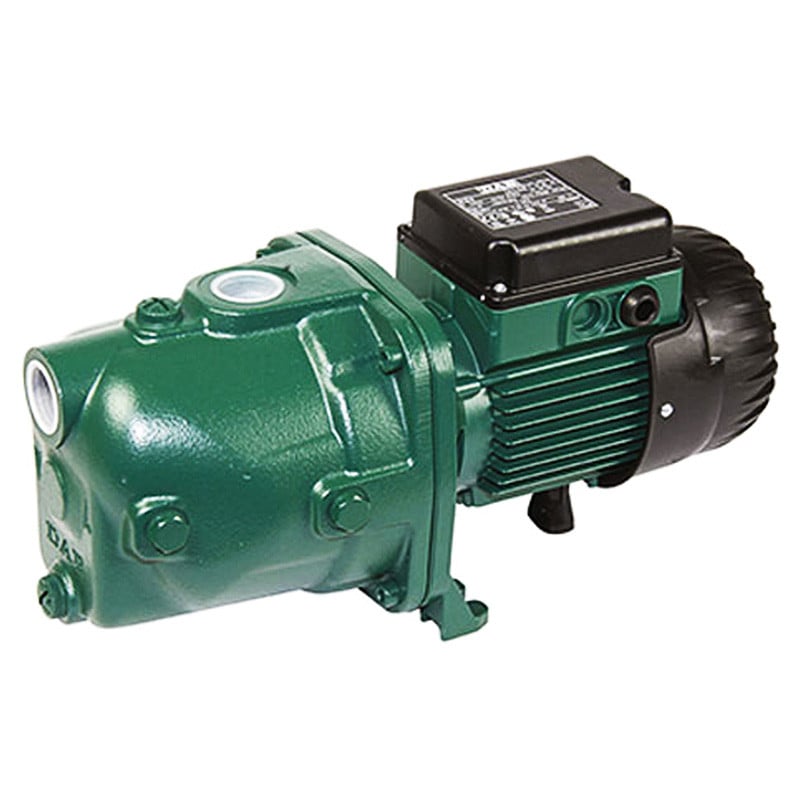

DAB 82M Cast Iron Spear Point Pump

Self Priming Cast Iron Jet Pumps and Spear Point Pumps

APPLICATIONS

• Domestic installations where a suction lift is required
• Pressure boosting, irrigation and wash down
• Designed for pumping from tanks, rivers and dams.

FEATURES & BENEFITS

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.

Rotor mounted on oversized greased sealed-for-life ball bearings.

Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.

For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.

Manufactured according to CEI 61-69 standards (EN 60335-2-41).

Motor protection: IP 44

Terminal box protection: IP 55

Insulation class: F

Operating range: up to 4.3 m3/h.

• Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
• Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
  from 0°C to +40°C for other uses
• Maximum ambient temperature: +40°C
• Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
• Installation: fixed in a horizontal position
• DAB 300M Cast Iron Jet Pump Shallow Well
• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage

TECHNICAL DATA

SPARE PARTS

DRAWINGS

LITERATURE

DAB 82M Cast Iron Spear Point Pump Brochure
