DAB-151T Cast Iron Multistage Jet Pump 415V

SKU:
DAB-151T

PRODUCT INFORMATION

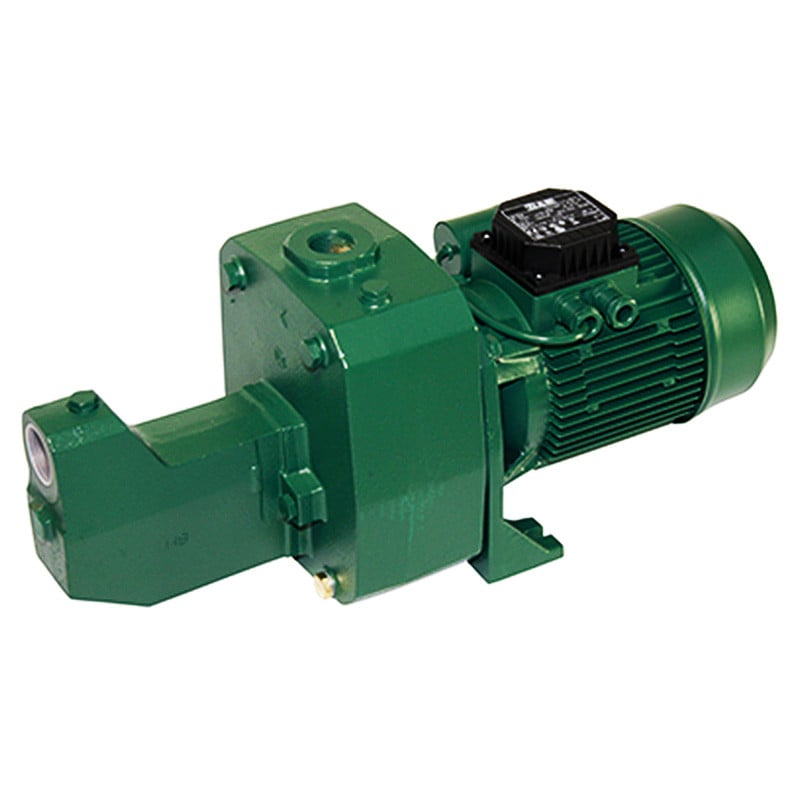

DAB-151T Cast Iron Jet Pump 415v Shallow Well

The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.

3 phase pumps require contactor and overload.

Applications

  • Domestic installations where a suction lift is required
  • Pressure boosting, irrigation and wash down
  • Designed for pumping from tanks, rivers and dams.

FEATURES & BENEFITS

Constructional features of the pump

Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.

Constructional features of the motor

Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F

Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses
- Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- Special executions on request: other voltages and/or frequencies

Handy Hints for Installing Your Jet Pump

  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.

TECHNICAL DATA

Brand
DAB Pumps
Product Type
Multistage Jet Pump
Suitable For
Tank Transfer
Bar
6.1 Bar
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
5 L/min
Hp
1.5 Hp
kPa
618 kPa
Kilo Watts
1.1 kW
Casing Material
Cast Iron
Head Range Category c. 60 - 99 m
Max Head (m)
61 m
Port Size Inlet 1 1/4" BSPF inlet
Port Size Outlet
1" BSPF outlet
Powered
Electric
Warranty (months) 24 Months
Volts
415 V
Watts
1100 W



DRAWINGS

LITERATURE

 DAB-151T Cast Iron Jet Pump 415v Shallow Well DAB-151T Cast Iron Jet Pump 415v Shallow Well Brochure
