PRODUCT INFORMATION

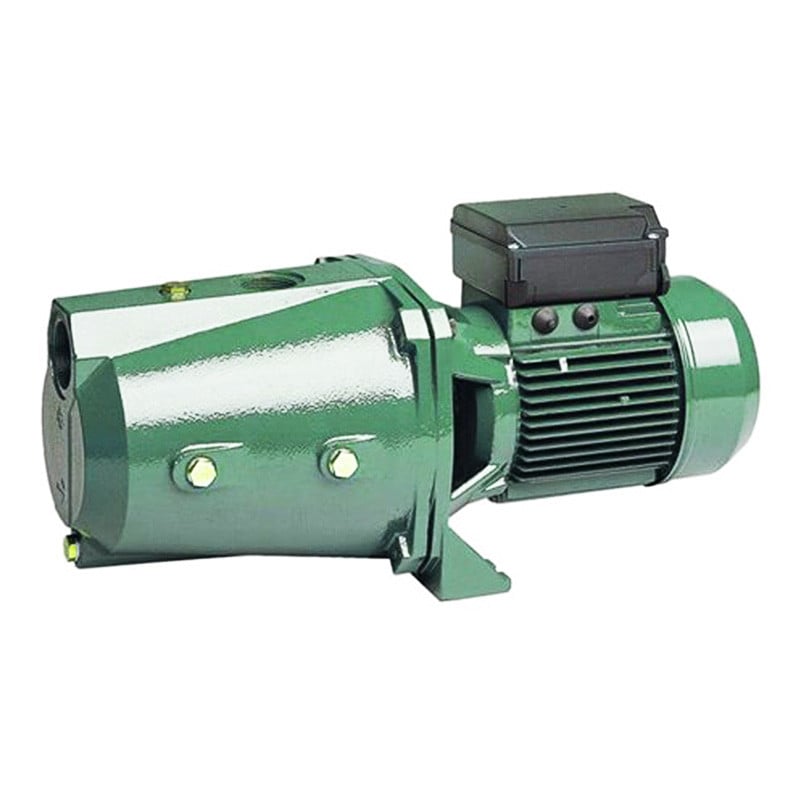

DAB-300T Cast iron Jet Pump 415V Shallow Well Pump
Self Priming Single and Multistage Cast Iron Jet Pressure Systems
The pump is a self-priming surface mounted jet pump and has a suction capability of up to 8m.
Applications
- Domestic installations where a suction lift is required
- Pressure boosting, irrigation and wash down
- Designed for pumping from tanks, rivers and dams.
FEATURES & BENEFITS
- DAB-300T Cast iron Jet Pump 415V Shallow Well Pump
Constructional features of the pump
Pump: Cast iron pump body and motor support. Technopolymer impeller and diffuser.
Stainless steel adjustment ring. Carbon/ceramic mechanical seal.
Ejector: Cast iron body. Technopolymer A Venturi tube and brass nozzle.
The ejector is available in three models (E20 - E25 - E30) to be chosen according to performance requirements.
Constructional features of the motor
Asynchronous motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
For the protection of the three-phase motor, it is advisable to use a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP 44
Terminal box protection: IP 55
Insulation class: F
Operating range: up to 4.3 m3/h.
- Liquid quality requirements: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallized, chemically neutral, close to the characteristics of water.
- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses - Maximum ambient temperature: +40°C
- Maximum operating pressure: DP 82 - DP 102 6 bar (600 kPa), DP 151 - DP 251 8 bar (800 kPa)
- Installation: fixed in a horizontal position
- DAB 300M Cast Iron Jet Pump Shallow Well
- 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
TECHNICAL DATA
| Brand |
DAB Pumps |
| Suitable For |
Tank Transfer |
| Product Type |
Single Stage Jet Pump |
| Bar |
5.1 Bar |
| Flow Range Category |
b. 100 - 199 L/min |
| Flow Rate (L/min) |
175 L/min |
| Hp |
3 Hp |
| kPa |
517 kPa |
| Kilo Watts |
2.2 kW |
| Casing Material |
Cast Iron |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) |
51 m |
| Port Size Inlet | 1 1/2" BSPF inlet |
| Port Size Outlet |
1 1/4" BSPF outlet |
| Powered |
Electric |
| Volts |
415 V |
| Warranty (months) | 24 Months |
| Volts |
240 V |
| Watts | 2500 W |
DRAWINGS
 |
 |
LITERATURE
 |
DAB-300T Cast iron Jet Pump 415V Shallow Well Pump Brochure |
