PRODUCT INFORMATION

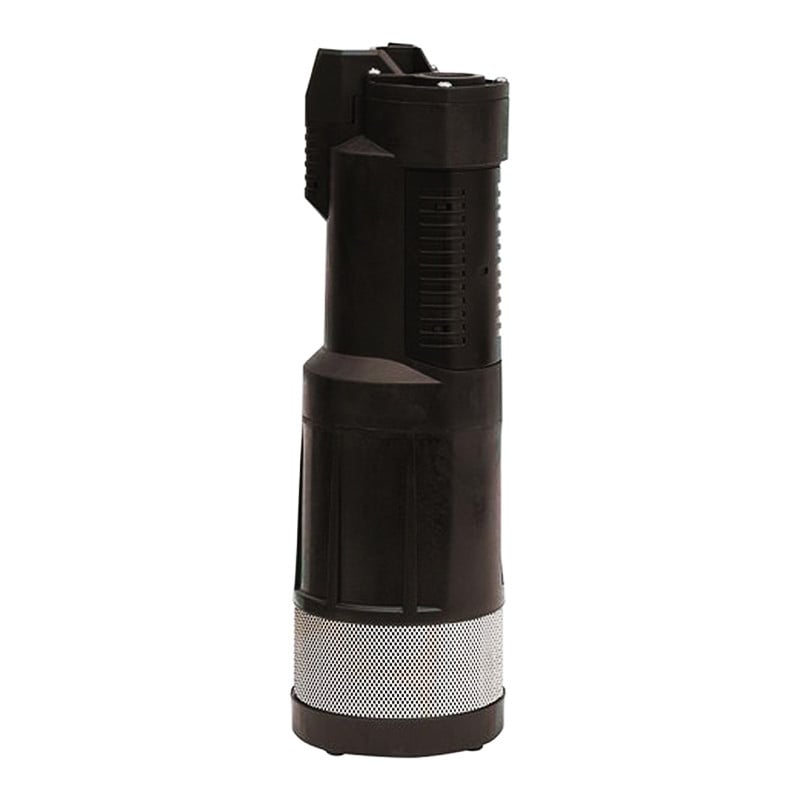

DAB Divertron 1200 Submersible Pump
The pump is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart pump control with dry run protection
FEATURES & BENEFITS
6" submersible electronic on and off multi-impeller clean water pump designed for pressurization, rainwater reuse, gardening and irrigation in residential building service. The pump is available with 3 or 4 impellers.
CONSTRUCTION FEATURES OF THE PUMP
Technopolymer pump body and impellers to resist corrosion and oxidation. Integrated non-return valve on delivery. Stainless steel debris filter or stainless steel fitting for use with float suction kit (version X).
CONSTRUCTION FEATURES OF THE MOTOR
Asynchronous motor. Motor shaft in AISI 416 stainless steel. Integrated starting capacitor and thermal protection against the overheating of the motor.
FEATURES OF THE ELECTRONIC
The electronics allow automatic switching on and off. Integrated pressure switch and flow sensor. Dry-running protection.
The pump is characterised by:
- Corrosion resistant pump components.
- Fully automatic operation.
- Shaft seal with sand protection boot.
- 240V single phase motor with in-built auto reset thermal overload.
- 15m of power cable.
- 2 year warranty.
- Flows to 95 l/m
- Heads to 46 m
TECHNICAL DATA
| Brand |
DAB Pumps |
| Product Type | Pressure System |
| Suitable For |
Clean Water |
| Bar |
4.8 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
95 L/min |
| Hp |
1 Hp |
| Kilo Watts |
0.75 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) |
48 m |
| Port Size Outlet |
1" BSPM outlet |
| Powered |
Electric |
| Taps |
9 Taps |
| Warranty (months) | 24 Months |
| Volts |
240 V |
| Watts |
750 W |
